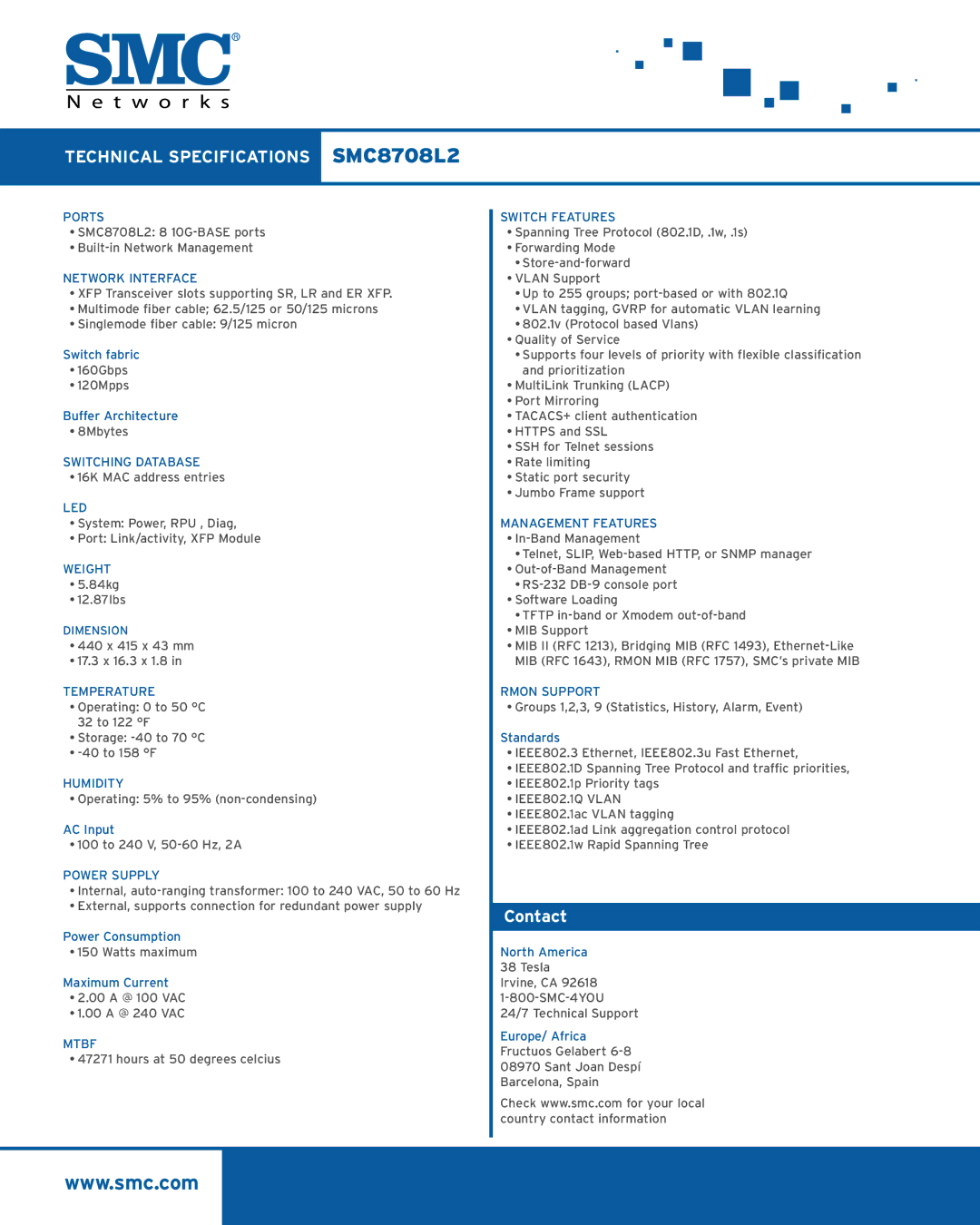

TECHNICAL SPECIFICATIONS SMC8708L2

PORTS

•SMC8708L2: 8 10G-BASE ports

•Built-in Network Management

NETWORK INTERFACE

•XFP Transceiver slots supporting SR, LR and ER XFP.

•Multimode fiber cable; 62.5/125 or 50/125 microns

•Singlemode fiber cable: 9/125 micron

Switch fabric

•160Gbps

•120Mpps

Buffer Architecture

• 8Mbytes

SWITCHING DATABASE

• 16K MAC address entries

LED

•System: Power, RPU , Diag,

•Port: Link/activity, XFP Module

WEIGHT

•5.84kg

•12.87lbs

DIMENSION

•440 x 415 x 43 mm

•17.3 x 16.3 x 1.8 in

TEMPERATURE

•Operating: 0 to 50 °C 32 to 122 °F

•Storage: -40 to 70 °C

•-40 to 158 °F

HUMIDITY

• Operating: 5% to 95% (non-condensing)

AC Input

• 100 to 240 V, 50-60 Hz, 2A

POWER SUPPLY

•Internal, auto-ranging transformer: 100 to 240 VAC, 50 to 60 Hz

•External, supports connection for redundant power supply

Power Consumption

• 150 Watts maximum

Maximum Current

•2.00 A @ 100 VAC

•1.00 A @ 240 VAC

MTBF

• 47271 hours at 50 degrees celcius

SWITCH FEATURES

•Spanning Tree Protocol (802.1D, .1w, .1s)

•Forwarding Mode

•Store-and-forward

•VLAN Support

•Up to 255 groups; port-based or with 802.1Q

•VLAN tagging, GVRP for automatic VLAN learning

•802.1v (Protocol based Vlans)

•Quality of Service

•Supports four levels of priority with flexible classification and prioritization

•MultiLink Trunking (LACP)

•Port Mirroring

•TACACS+ client authentication

•HTTPS and SSL

•SSH for Telnet sessions

•Rate limiting

•Static port security

•Jumbo Frame support

MANAGEMENT FEATURES

•In-Band Management

•Telnet, SLIP, Web-based HTTP, or SNMP manager

•Out-of-Band Management

•RS-232 DB-9 console port

•Software Loading

•TFTP in-band or Xmodem out-of-band

•MIB Support

•MIB II (RFC 1213), Bridging MIB (RFC 1493), Ethernet-Like MIB (RFC 1643), RMON MIB (RFC 1757), SMC’s private MIB

RMON SUPPORT

• Groups 1,2,3, 9 (Statistics, History, Alarm, Event)

Standards

•IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet,

•IEEE802.1D Spanning Tree Protocol and traffic priorities,

•IEEE802.1p Priority tags

•IEEE802.1Q VLAN

•IEEE802.1ac VLAN tagging

•IEEE802.1ad Link aggregation control protocol

•IEEE802.1w Rapid Spanning Tree
