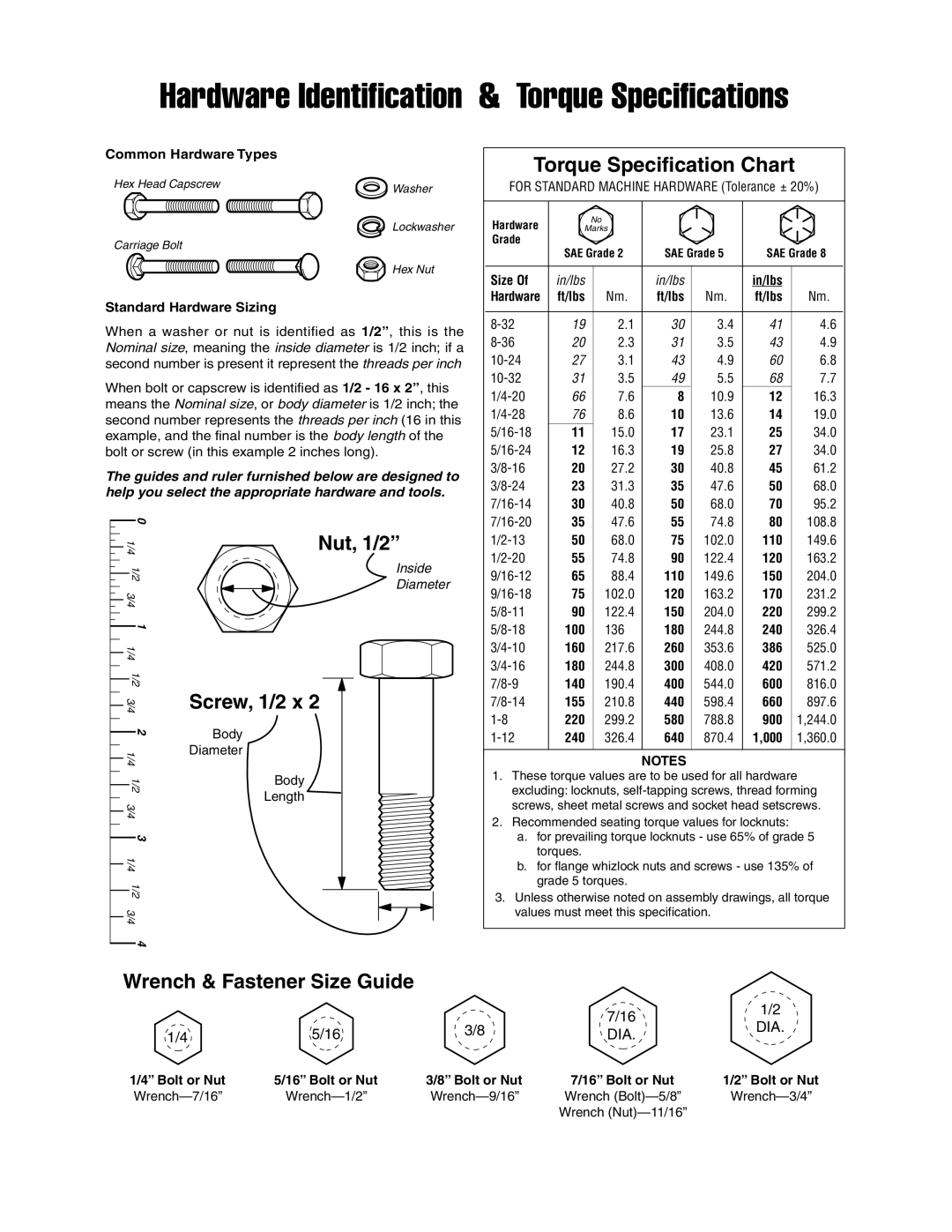

Hardware Identification & Torque Specifications

Common Hardware Types

Hex Head Capscrew

Washer





Lockwasher

Carriage Bolt





Hex Nut

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the Nominal size, meaning the inside diameter is 1/2 inch; if a second number is present it represent the threads per inch

When bolt or capscrew is identified as 1/2 - 16 x 2”, this means the Nominal size, or body diameter is 1/2 inch; the second number represents the threads per inch (16 in this example, and the final number is the body length of the bolt or screw (in this example 2 inches long).

The guides and ruler furnished below are designed to help you select the appropriate hardware and tools.

0



1/4

Nut, 1/2”

1/2

Inside

Diameter

3/4



1



1/4



1/2



3/4

Screw, 1/2 x 2

2

Body



1/4

Diameter



1/2

Body

Length

3/4



3



1/4



1/2



3/4



4



Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)



Hardware



No

















Marks

















Grade

SAE Grade 2

SAE Grade 5

SAE Grade 8







































Size Of

in/lbs





in/lbs





in/lbs









Hardware

ft/lbs



Nm.

ft/lbs

Nm.

ft/lbs



Nm.





























8-32



19



2.1

30

3.4



41

4.6



8-36



20



2.3

31

3.5



43

4.9



10-24



27



3.1

43

4.9



60

6.8



10-32



31



3.5

49

5.5



68



7.7



1/4-20



66



7.6

8

10.9



12

16.3



1/4-28



76



8.6

10

13.6



14

19.0



5/16-18



11



15.0

17

23.1



25

34.0



5/16-24



12



16.3

19

25.8



27

34.0



3/8-16



20



27.2

30

40.8



45

61.2



3/8-24



23



31.3

35

47.6



50

68.0



7/16-14



30



40.8

50

68.0



70

95.2



7/16-20



35



47.6

55

74.8



80

108.8



1/2-13



50



68.0

75

102.0



110

149.6



1/2-20



55



74.8

90

122.4



120

163.2



9/16-12



65



88.4

110

149.6



150

204.0



9/16-18



75



102.0

120

163.2



170

231.2



5/8-11



90



122.4

150

204.0



220

299.2



5/8-18



100



136

180

244.8



240

326.4



3/4-10



160



217.6

260

353.6



386

525.0



3/4-16



180



244.8

300

408.0



420

571.2



7/8-9



140



190.4

400

544.0



600

816.0



7/8-14



155



210.8

440

598.4



660

897.6



1-8



220



299.2

580

788.8



900

1,244.0



1-12



240



326.4

640

870.4



1,000

1,360.0























































NOTES

1.These torque values are to be used for all hardware excluding: locknuts, self-tapping screws, thread forming screws, sheet metal screws and socket head setscrews.

2.Recommended seating torque values for locknuts:

a.for prevailing torque locknuts - use 65% of grade 5 torques.

b.for flange whizlock nuts and screws - use 135% of grade 5 torques.

3.Unless otherwise noted on assembly drawings, all torque values must meet this specification.

Wrench & Fastener Size Guide







7/16

1/2





3/8

DIA.

1/4

5/16

DIA.



1/4” Bolt or Nut

5/16” Bolt or Nut

3/8” Bolt or Nut

7/16” Bolt or Nut

1/2” Bolt or Nut

Wrench—7/16”

Wrench—1/2”

Wrench—9/16”

Wrench (Bolt)—5/8”

Wrench—3/4”







Wrench (Nut)—11/16”
