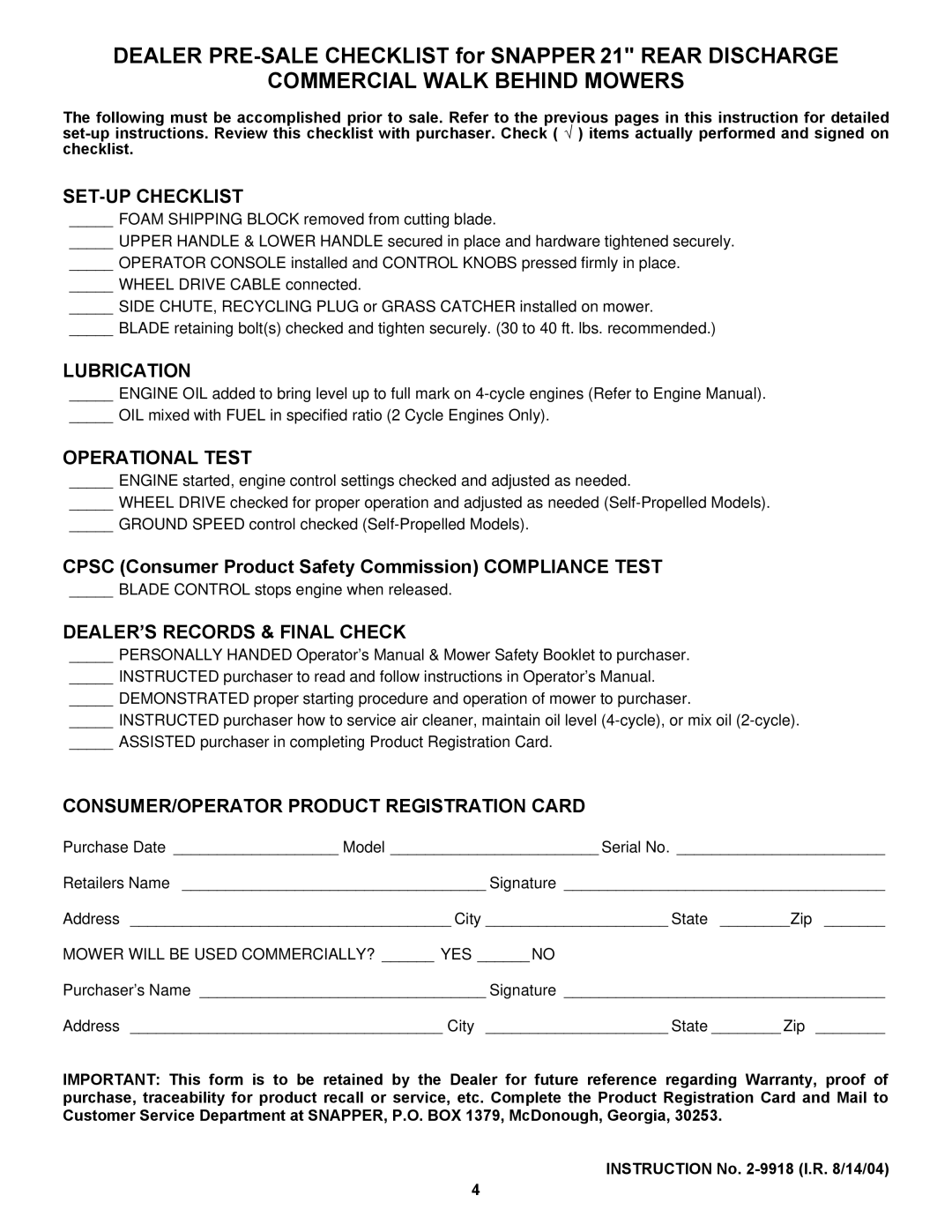

DEALER PRE-SALE CHECKLIST for SNAPPER 21" REAR DISCHARGE

COMMERCIAL WALK BEHIND MOWERS

The following must be accomplished prior to sale. Refer to the previous pages in this instruction for detailed set-up instructions. Review this checklist with purchaser. Check ( √ ) items actually performed and signed on checklist.

SET-UP CHECKLIST

_____ FOAM SHIPPING BLOCK removed from cutting blade.

_____ UPPER HANDLE & LOWER HANDLE secured in place and hardware tightened securely.

_____ OPERATOR CONSOLE installed and CONTROL KNOBS pressed firmly in place.

_____ WHEEL DRIVE CABLE connected.

_____ SIDE CHUTE, RECYCLING PLUG or GRASS CATCHER installed on mower.

_____ BLADE retaining bolt(s) checked and tighten securely. (30 to 40 ft. lbs. recommended.)

LUBRICATION

_____ ENGINE OIL added to bring level up to full mark on 4-cycle engines (Refer to Engine Manual).

_____ OIL mixed with FUEL in specified ratio (2 Cycle Engines Only).

OPERATIONAL TEST

_____ ENGINE started, engine control settings checked and adjusted as needed.

_____ WHEEL DRIVE checked for proper operation and adjusted as needed (Self-Propelled Models).

_____ GROUND SPEED control checked (Self-Propelled Models).

CPSC (Consumer Product Safety Commission) COMPLIANCE TEST

_____ BLADE CONTROL stops engine when released.

DEALER’S RECORDS & FINAL CHECK

_____ PERSONALLY HANDED Operator’s Manual & Mower Safety Booklet to purchaser.

_____ INSTRUCTED purchaser to read and follow instructions in Operator’s Manual.

_____ DEMONSTRATED proper starting procedure and operation of mower to purchaser.

_____ INSTRUCTED purchaser how to service air cleaner, maintain oil level (4-cycle), or mix oil (2-cycle).

_____ ASSISTED purchaser in completing Product Registration Card.

CONSUMER/OPERATOR PRODUCT REGISTRATION CARD

Purchase Date ___________________ Model ________________________ Serial No. ________________________

Retailers Name ___________________________________ Signature _____________________________________

Address _____________________________________ City _____________________ State ________Zip _______

MOWER WILL BE USED COMMERCIALLY? ______ YES ______ NO

Purchaser’s Name _________________________________ Signature _____________________________________

Address ____________________________________ City _____________________ State ________ Zip ________

IMPORTANT: This form is to be retained by the Dealer for future reference regarding Warranty, proof of purchase, traceability for product recall or service, etc. Complete the Product Registration Card and Mail to Customer Service Department at SNAPPER, P.O. BOX 1379, McDonough, Georgia, 30253.

INSTRUCTION No. 2-9918 (I.R. 8/14/04)

4
