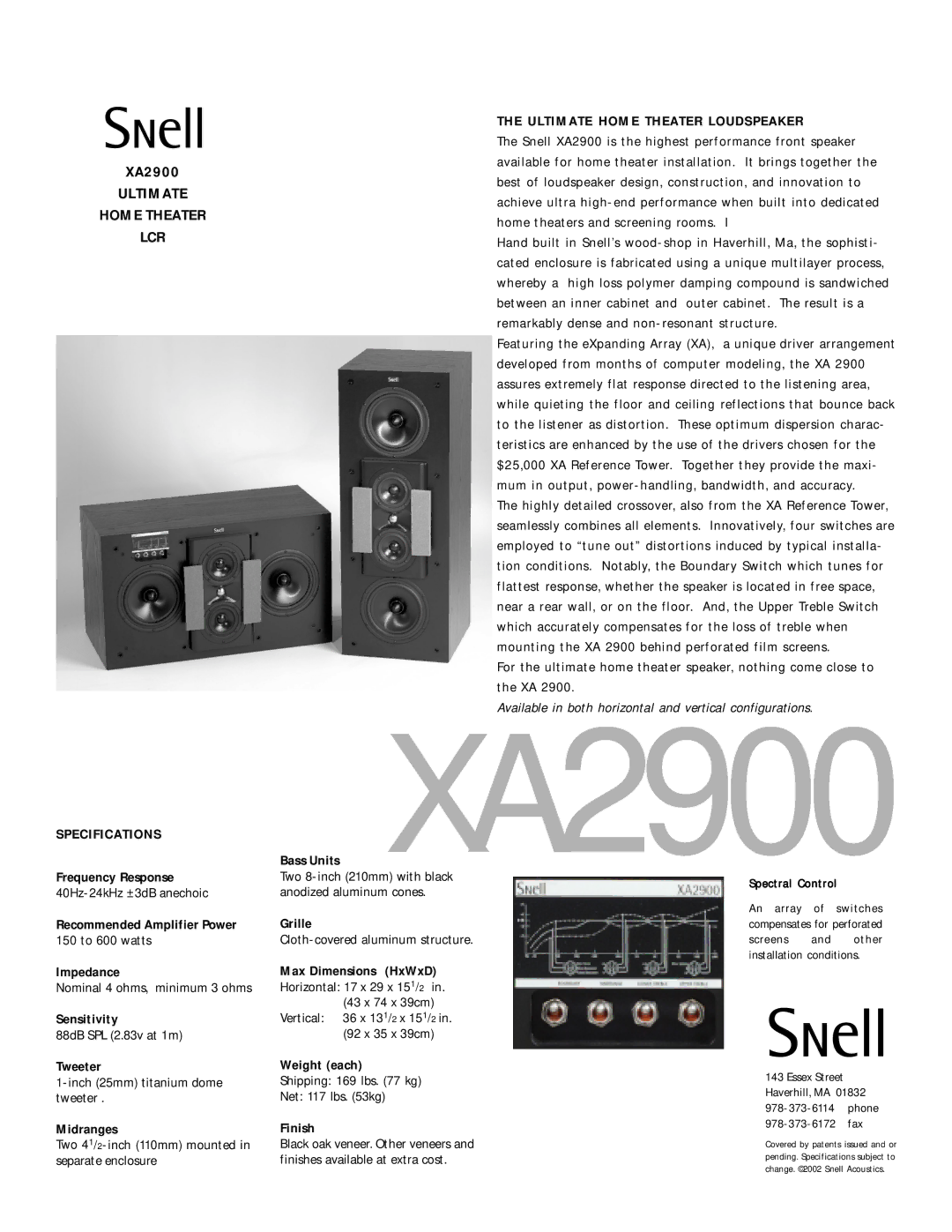

XA2900

ULTIMATE

HOME THEATER

LCR

SPECIFICATIONS

THE ULTIMATE HOME THEATER LOUDSPEAKER

The Snell XA2900 is the highest performance front speaker available for home theater installation. It brings together the best of loudspeaker design, construction, and innovation to achieve ultra high-end performance when built into dedicated home theaters and screening rooms. I

Hand built in Snell’s wood-shop in Haverhill, Ma, the sophisti- cated enclosure is fabricated using a unique multilayer process, whereby a high loss polymer damping compound is sandwiched between an inner cabinet and outer cabinet. The result is a remarkably dense and non-resonant structure.

Featuring the eXpanding Array (XA), a unique driver arrangement developed from months of computer modeling, the XA 2900 assures extremely flat response directed to the listening area, while quieting the floor and ceiling reflections that bounce back to the listener as distortion. These optimum dispersion charac- teristics are enhanced by the use of the drivers chosen for the

$25,000 XA Reference Tower. Together they provide the maxi- mum in output, power-handling, bandwidth, and accuracy.

The highly detailed crossover, also from the XA Reference Tower, seamlessly combines all elements. Innovatively, four switches are employed to “tune out” distortions induced by typical installa- tion conditions. Notably, the Boundary Switch which tunes for flattest response, whether the speaker is located in free space, near a rear wall, or on the floor. And, the Upper Treble Switch which accurately compensates for the loss of treble when mounting the XA 2900 behind perforated film screens.

For the ultimate home theater speaker, nothing come close to the XA 2900.

Available in both horizontal and vertical configurations.

XA2900

Bass Units

Frequency Response 40Hz-24kHz ±3dB anechoic

Recommended Amplifier Power

150 to 600 watts

Impedance

Nominal 4 ohms, minimum 3 ohms

Sensitivity

88dB SPL (2.83v at 1m)

Tweeter

1-inch (25mm) titanium dome tweeter .

Midranges

Two 41/2-inch (110mm) mounted in separate enclosure

Two 8-inch (210mm) with black anodized aluminum cones.

Grille

Cloth-covered aluminum structure.

Max Dimensions (HxWxD)

Horizontal: 17 x 29 x 151/2 in. (43 x 74 x 39cm)

Vertical: 36 x 131/2 x 151/2 in. (92 x 35 x 39cm)

Weight (each)

Shipping: 169 lbs. (77 kg)

Net: 117 lbs. (53kg)

Finish

Black oak veneer. Other veneers and finishes available at extra cost.

Spectral Control

An array of switches compensates for perforated

screens and other installation conditions.

143 Essex Street Haverhill, MA 01832 978-373-6114 phone 978-373-6172 fax

Covered by patents issued and or pending. Specifications subject to change. ©2002 Snell Acoustics.

Page 1
Image 1
Snell Acoustics XA2900 specifications Ultimate Home Theater LCR, Specifications Ultimate Home Theater Loudspeaker

XA2900 specifications

The Snell Acoustics XA2900 is a remarkable loudspeaker that embodies the brand's long-standing dedication to high-performance audio. Designed for audiophiles seeking an immersive listening experience, the XA2900 brings together innovative technologies and meticulous craftsmanship to deliver exceptional sound quality.

One of the standout features of the XA2900 is its advanced driver configuration. The loudspeaker employs a 3-way design with a dedicated 10-inch bass driver, a 6.5-inch midrange driver, and a 1-inch tweeter. This setup ensures that each frequency range is handled optimally, resulting in rich, full-bodied sound reproduction. The bass driver is designed to handle low frequencies effectively, providing a deep and punchy bass response that is both controlled and impactful.

The midrange driver plays a crucial role in the XA2900's performance, offering a natural and accurate representation of vocals and instruments. Its advanced materials and construction contribute to a smooth frequency response, allowing for a detailed midrange that enhances the overall listening experience. Meanwhile, the tweeter employs a soft dome design, contributing to extended high-frequency response and ensuring clarity and precision in the upper register.

Another innovative aspect of the XA2900 is its unique cabinet design. The speaker is constructed from high-density MDF, minimizing unwanted resonances and vibrations. The cabinet features a carefully engineered shape that aids in sound dispersion, resulting in a wide soundstage and improved imaging. Additionally, the internal bracing reinforces the structure, providing enhanced rigidity and further reducing distortion.

The Snell Acoustics XA2900 also utilizes advanced crossover technology. This multi-order crossover network effectively separates the audio signal and directs it to the appropriate drivers. By employing high-quality components, the crossover ensures minimal phase shift and distortion, leading to a cohesive sound across the entire frequency range.

In terms of aesthetics, the XA2900 is elegantly designed, available in a variety of finishes that can complement any home decor. Its sleek profile and high-quality veneer make it a visually appealing addition to any audio setup.

Overall, the Snell Acoustics XA2900 stands out as a premium loudspeaker that perfectly balances performance and aesthetics. With its meticulously designed driver configuration, innovative cabinet construction, and advanced crossover technology, the XA2900 promises to deliver a listening experience that is both immersive and enjoyable, catering to the needs of the most discerning audiophiles.
