Sony D-E356CK manual Features, Specifications, Sony Electronics Inc

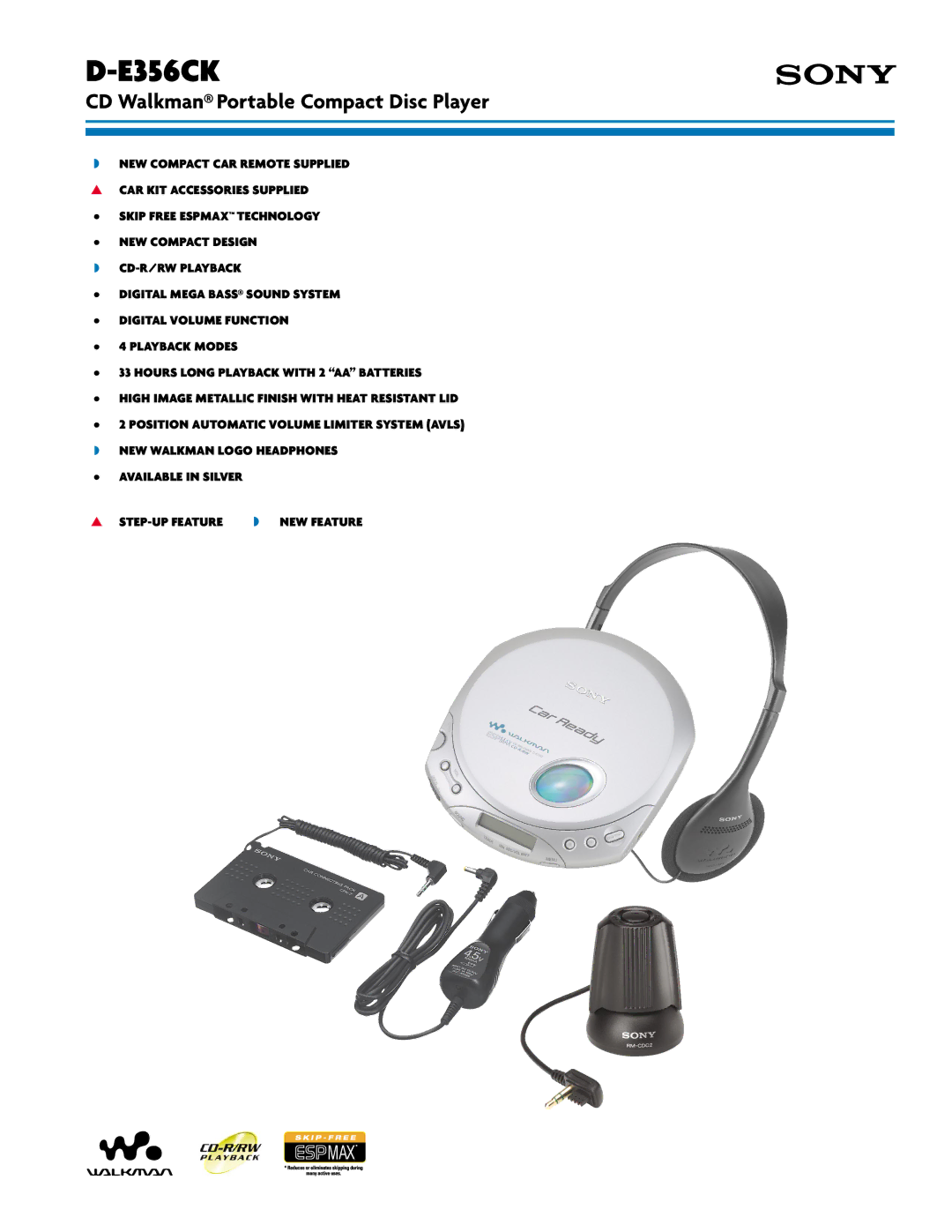

D-E356CK

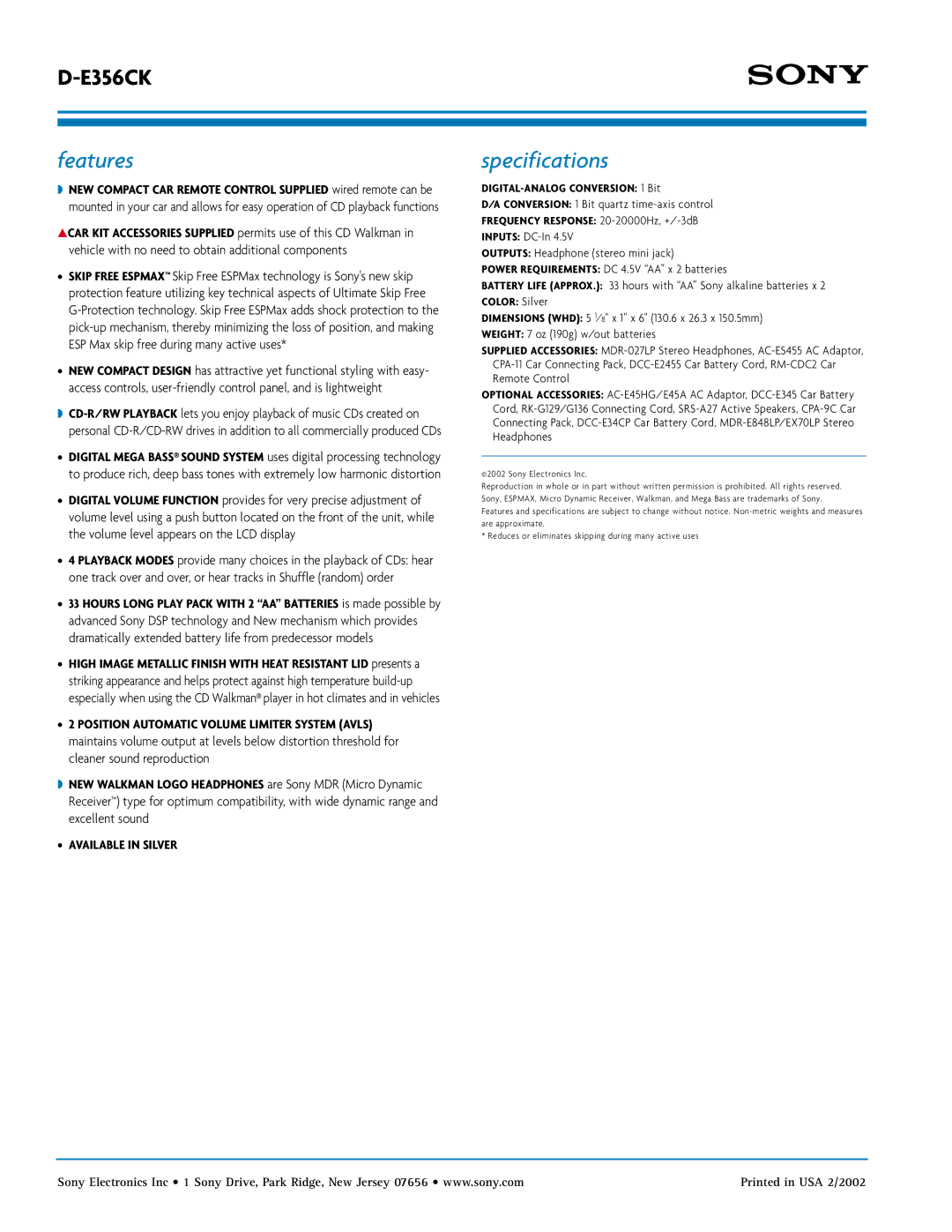

features

◗NEW COMPACT CAR REMOTE CONTROL SUPPLIED wired remote can be mounted in your car and allows for easy operation of CD playback functions

▲CAR KIT ACCESSORIES SUPPLIED permits use of this CD Walkman in vehicle with no need to obtain additional components

•SKIP FREE ESPMAX™ Skip Free ESPMax technology is Sony's new skip protection feature utilizing key technical aspects of Ultimate Skip Free G-Protection technology. Skip Free ESPMax adds shock protection to the pick-up mechanism, thereby minimizing the loss of position, and making ESP Max skip free during many active uses*

•NEW COMPACT DESIGN has attractive yet functional styling with easy- access controls, user-friendly control panel, and is lightweight

◗CD-R/RW PLAYBACK lets you enjoy playback of music CDs created on personal CD-R/CD-RW drives in addition to all commercially produced CDs

•DIGITAL MEGA BASS® SOUND SYSTEM uses digital processing technology to produce rich, deep bass tones with extremely low harmonic distortion

•DIGITAL VOLUME FUNCTION provides for very precise adjustment of volume level using a push button located on the front of the unit, while the volume level appears on the LCD display

•4 PLAYBACK MODES provide many choices in the playback of CDs: hear one track over and over, or hear tracks in Shuffle (random) order

•33 HOURS LONG PLAY PACK WITH 2 “AA” BATTERIES is made possible by advanced Sony DSP technology and New mechanism which provides dramatically extended battery life from predecessor models

•HIGH IMAGE METALLIC FINISH WITH HEAT RESISTANT LID presents a striking appearance and helps protect against high temperature build-up especially when using the CD Walkman®player in hot climates and in vehicles

•2 POSITION AUTOMATIC VOLUME LIMITER SYSTEM (AVLS) maintains volume output at levels below distortion threshold for cleaner sound reproduction

◗NEW WALKMAN LOGO HEADPHONES are Sony MDR (Micro Dynamic Receiver™) type for optimum compatibility, with wide dynamic range and excellent sound

specifications

DIGITAL-ANALOG CONVERSION: 1 Bit

D/A CONVERSION: 1 Bit quartz time-axis control

FREQUENCY RESPONSE: 20-20000Hz,+/-3dB

INPUTS: DC-In 4.5V

OUTPUTS: Headphone (stereo mini jack)

POWER REQUIREMENTS: DC 4.5V “AA” x 2 batteries

BATTERY LIFE (APPROX.): 33 hours with “AA” Sony alkaline batteries x 2

COLOR: Silver

DIMENSIONS (WHD): 5 1⁄8" x 1" x 6" (130.6 x 26.3 x 150.5mm)

WEIGHT: 7 oz (190g) w/out batteries

SUPPLIED ACCESSORIES: MDR-027LP Stereo Headphones, AC-ES455 AC Adaptor, CPA-11 Car Connecting Pack, DCC-E2455 Car Battery Cord, RM-CDC2 Car Remote Control

OPTIONAL ACCESSORIES: AC-E45HG/E45A AC Adaptor, DCC-E345 Car Battery Cord, RK-G129/G136 Connecting Cord, SRS-A27 Active Speakers, CPA-9C Car Connecting Pack, DCC-E34CP Car Battery Cord, MDR-E848LP/EX70LP Stereo Headphones

©2002 Sony Electronics Inc.

Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, ESPMAX, Micro Dynamic Receiver, Walkman, and Mega Bass are trademarks of Sony.

Features and specifications are subject to change without notice. Non-metric weights and measures are approximate.

* Reduces or eliminates skipping during many active uses

• AVAILABLE IN SILVER

Sony Electronics Inc • 1 Sony Drive, Park Ridge, New Jersey 07656 • www.sony.com Printed in USA 2/2002
