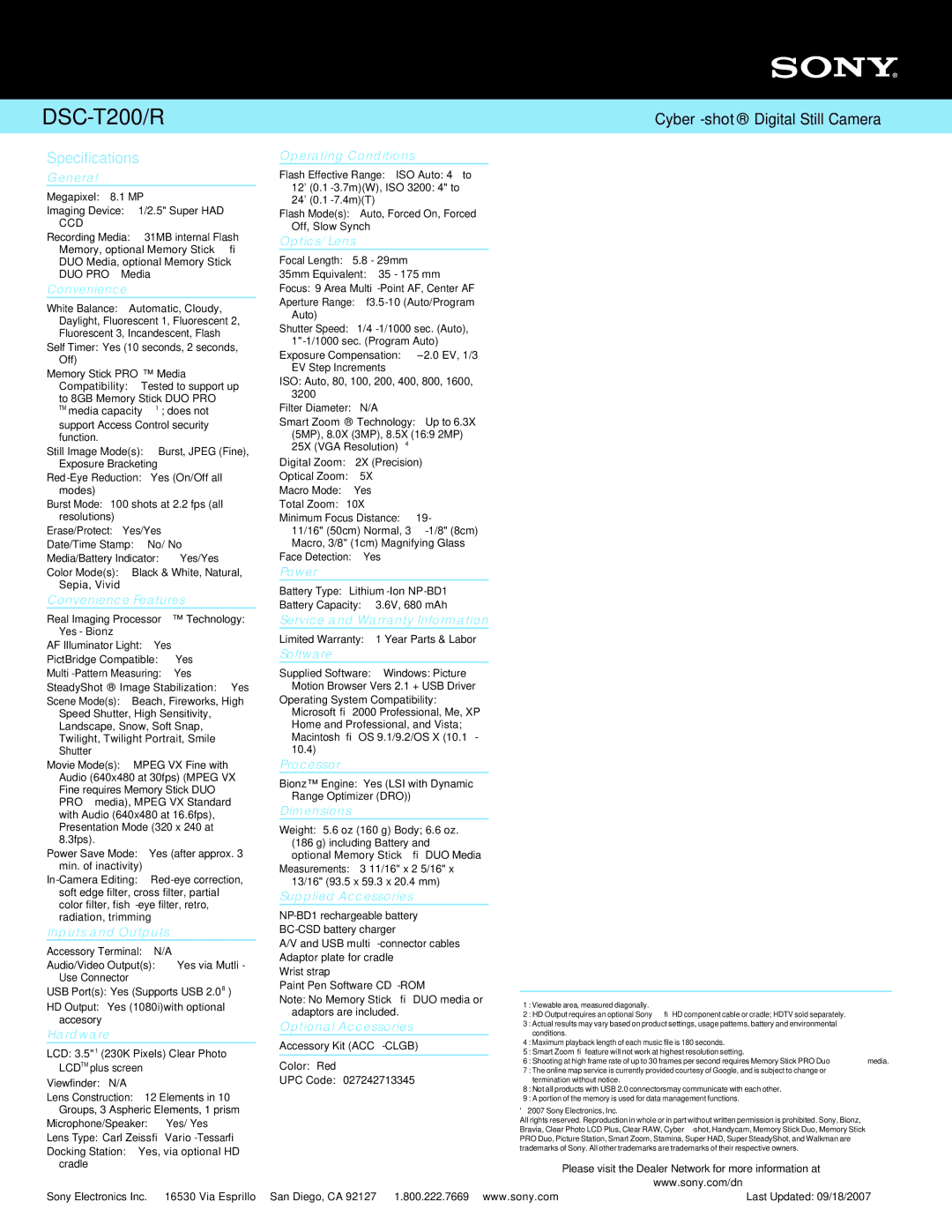

Sony DSC-T200/R General, Convenience Features, Inputs and Outputs Operating Conditions, Power

DSC-T200/R Cyber-shot® Digital Still Camera

Specifications

General

Megapixel: 8.1 MP

Imaging Device: 1/2.5" Super HAD™

CCD

Recording Media: 31MB internal Flash Memory, optional Memory Stick® DUO Media, optional Memory Stick DUO PRO™ Media

Convenience

White Balance: Automatic, Cloudy, Daylight, Fluorescent 1, Fluorescent 2, Fluorescent 3, Incandescent, Flash

Self Timer: Yes (10 seconds, 2 seconds, Off)

Memory Stick PRO™ Media Compatibility: Tested to support up to 8GB Memory Stick DUO PRO

TM media capacity1 ; does not support Access Control security function.

Still Image Mode(s): Burst, JPEG (Fine), Exposure Bracketing

Red-Eye Reduction: Yes (On/Off all modes)

Burst Mode: 100 shots at 2.2 fps (all resolutions)

Erase/Protect: Yes/Yes

Date/Time Stamp: No/ No

Media/Battery Indicator: Yes/Yes

Color Mode(s): Black & White, Natural, Sepia, Vivid

Convenience Features

Real Imaging Processor™ Technology:

Yes - Bionz

AF Illuminator Light: Yes

PictBridge Compatible: Yes

Multi-Pattern Measuring: Yes

SteadyShot® Image Stabilization: Yes

Scene Mode(s): Beach, Fireworks, High Speed Shutter, High Sensitivity, Landscape, Snow, Soft Snap, Twilight, Twilight Portrait, Smile Shutter

Movie Mode(s): MPEG VX Fine with Audio (640x480 at 30fps) (MPEG VX Fine requires Memory Stick DUO PRO™ media), MPEG VX Standard with Audio (640x480 at 16.6fps), Presentation Mode (320 x 240 at 8.3fps).

Power Save Mode: Yes (after approx. 3 min. of inactivity)

In-Camera Editing: Red-eye correction, soft edge filter, cross filter, partial color filter, fish-eye filter, retro, radiation, trimming

Inputs and Outputs

Operating Conditions

Flash Effective Range: ISO Auto: 4” to

12' (0.1-3.7m)(W), ISO 3200: 4" to

24' (0.1-7.4m)(T)

Flash Mode(s): Auto, Forced On, Forced

Off, Slow Synch

Optics/Lens

Focal Length: 5.8 - 29mm

35mm Equivalent: 35 - 175 mm

Focus: 9 Area Multi-Point AF, Center AF

Aperture Range: f3.5-10 (Auto/Program Auto)

Shutter Speed: 1/4-1/1000 sec. (Auto), 1"-1/1000 sec. (Program Auto)

Exposure Compensation: ±2.0 EV, 1/3 EV Step Increments

ISO: Auto, 80, 100, 200, 400, 800, 1600, 3200

Filter Diameter: N/A

Smart Zoom® Technology: Up to 6.3X (5MP), 8.0X (3MP), 8.5X (16:9 2MP) 25X (VGA Resolution)4

Digital Zoom: 2X (Precision)

Optical Zoom: 5X

Macro Mode: Yes

Total Zoom: 10X

Minimum Focus Distance: 19-

11/16" (50cm) Normal, 3-1/8" (8cm) Macro, 3/8" (1cm) Magnifying Glass

Face Detection: Yes

Power

Battery Type: Lithium-Ion NP-BD1

Battery Capacity: 3.6V, 680 mAh

Service and Warranty Information

Limited Warranty: 1 Year Parts & Labor

Software

Supplied Software: Windows: Picture Motion Browser Vers 2.1 + USB Driver

Operating System Compatibility: Microsoft® 2000 Professional, Me, XP Home and Professional, and Vista; Macintosh® OS 9.1/9.2/OS X (10.1- 10.4)

Processor

Bionz™ Engine: Yes (LSI with Dynamic Range Optimizer (DRO))

Dimensions

Weight: 5.6 oz (160 g) Body; 6.6 oz. (186 g) including Battery and optional Memory Stick® DUO Media

Measurements: 3 11/16" x 2 5/16" x 13/16" (93.5 x 59.3 x 20.4 mm)

Supplied Accessories

NP-BD1 rechargeable battery

BC-CSD battery charger

Accessory Terminal: N/A	A/V and USB multi-connector cables
	Adaptor plate for cradle
Audio/Video Output(s): Yes via Mutli-
	Wrist strap
Use Connector
	Paint Pen Software CD-ROM
USB Port(s): Yes (Supports USB 2.08 )
	Note: No Memory Stick® DUO media or			1 : Viewable area, measured diagonally.
HD Output: Yes (1080i)with optional
		adaptors are included.
accesory			2		: HD Output requires an optional Sony® HD component cable or cradle; HDTV sold separately.
	Optional Accessories		3		: Actual results may vary based on product settings, usage patterns, battery and environmental
Hardware					conditions.
	Accessory Kit (ACC-CLGB)		4		: Maximum playback length of each music file is 180 seconds.
LCD: 3.5"1 (230K Pixels) Clear Photo
			5		: Smart Zoom® feature will not work at highest resolution setting.
LCDTM plus screen	Color: Red		6		: Shooting at high frame rate of up to 30 frames per second requires Memory Stick PRO Duo™ media.
			7		: The online map service is currently provided courtesy of Google, and is subject to change or
Viewfinder: N/A	UPC Code: 027242713345				termination without notice.
Lens Construction: 12 Elements in 10			8		: Not all products with USB 2.0 connectorsmay communicate with each other.
			9		: A portion of the memory is used for data management functions.
Groups, 3 Aspheric Elements, 1 prism			© 2007 Sony Electronics, Inc.
Microphone/Speaker: Yes/ Yes			All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, Bionz,
			Bravia, Clear Photo LCD Plus, Clear RAW, Cyber-shot, Handycam, Memory Stick Duo, Memory Stick
Lens Type: Carl Zeiss® Vario-Tessar®
			PRO Duo, Picture Station, Smart Zoom, Stamina, Super HAD, Super SteadyShot, and Walkman are
Docking Station: Yes, via optional HD			trademarks of Sony. All other trademarks are trademarks of their respective owners.
cradle					Please visit the Dealer Network for more information at
					www.sony.com/dn
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •www.sony.com						Last Updated: 09/18/2007
