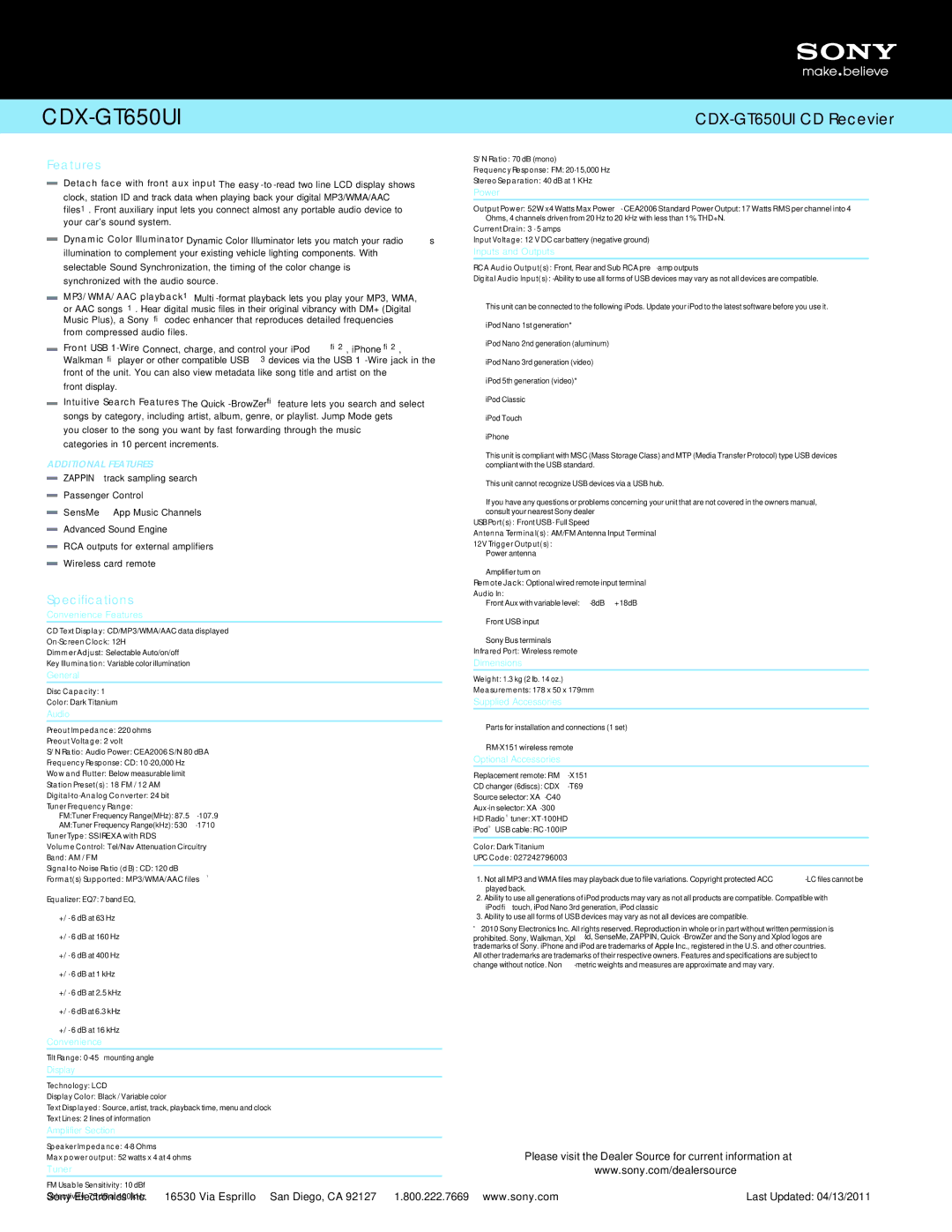

Sony manual CDX-GT650UI CD Recevier, Features, Specifications, Last Updated 04/13/2011

CDX-GT650UI CDX-GT650UI CD Recevier

Features

Detach face with front aux input The easy-to-read two line LCD display shows clock, station ID and track data when playing back your digital MP3/WMA/AAC files1 . Front auxiliary input lets you connect almost any portable audio device to your car's sound system.

Dynamic Color Illuminator Dynamic Color Illuminator lets you match your radio’s illumination to complement your existing vehicle lighting components. With

selectable Sound Synchronization, the timing of the color change is

synchronized with the audio source.

MP3/WMA/AAC playback1 Multi-format playback lets you play your MP3, WMA, or AAC songs1 . Hear digital music files in their original vibrancy with DM+ (Digital Music Plus), a Sony® codec enhancer that reproduces detailed frequencies from compressed audio files.

Front USB 1-WireConnect, charge, and control your iPod®2 , iPhone®2 , Walkman® player or other compatible USB3 devices via the USB 1-Wire jack in the front of the unit. You can also view metadata like song title and artist on the

front display.

Intuitive Search Features The Quick-BrowZer®feature lets you search and select songs by category, including artist, album, genre, or playlist. Jump Mode gets

you closer to the song you want by fast forwarding through the music

categories in 10 percent increments.

ADDITIONAL FEATURES

ZAPPIN™ track sampling search

Passenger Control

SensMe™ App Music Channels

Advanced Sound Engine

RCA outputs for external amplifiers

Wireless card remote

Specifications

Convenience Features

CD Text Display: CD/MP3/WMA/AAC data displayed

On-ScreenClock: 12H

DimmerAdjust: Selectable Auto/on/off

Key Illumination: Variable color illumination

General

Disc Capacity: 1

Color: Dark Titanium

Audio

Preout Impedance: 220 ohms

Preout Voltage: 2 volt

S/NRatio: Audio Power: CEA2006 S/N 80 dBA

Frequency Response: CD: 10-20,000 Hz

Wow and Flutter: Below measurable limit

StationPreset(s): 18 FM / 12 AM

Digital-to-AnalogConverter: 24 bit

Tuner Frequency Range:

FM:Tuner Frequency Range(MHz): 87.5-107.9

AM:Tuner Frequency Range(kHz): 530-1710

Tuner Type: SSIR-EXA with RDS

Volume Control: Tel/Nav Attenuation Circuitry

Band: AM / FM

Signal-to-Noise Ratio (dB): CD: 120 dB

Format(s) Supported: MP3/WMA/AAC files1

Equalizer: EQ7: 7 band EQ,

+/- 6 dB at 63 Hz

+/- 6 dB at 160 Hz

+/- 6 dB at 400 Hz

+/- 6 dB at 1 kHz

+/- 6 dB at 2.5 kHz

+/- 6 dB at 6.3 kHz

+/- 6 dB at 16 kHz

Convenience

Tilt Range: 0-45°mounting angle

Display

Technology: LCD

Display Color: Black / Variable color

Text Displayed: Source, artist, track, playback time, menu and clock

Text Lines: 2 lines of information

S/NRatio: 70 dB (mono)

Frequency Response: FM: 20-15,000 Hz

StereoSeparation: 40 dB at 1 KHz

Power

OutputPower: 52W x4 Watts Max Power - CEA2006 Standard Power Output: 17 Watts RMS per channel into 4 Ohms, 4 channels driven from 20 Hz to 20 kHz with less than 1% THD+N.

CurrentDrain: 3 - 5 amps

Input Voltage: 12 V DC car battery (negative ground)

Inputs and Outputs

RCA Audio Output(s): Front, Rear and Sub RCA pre-amp outputs

Digital Audio Input(s): -Ability to use all forms of USB devices may vary as not all devices are compatible.

This unit can be connected to the following iPods. Update your iPod to the latest software before you use it.

iPod Nano 1st generation*

iPod Nano 2nd generation (aluminum)

iPod Nano 3rd generation (video)

iPod 5th generation (video)*

iPod Classic

iPod Touch

iPhone

This unit is compliant with MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices compliant with the USB standard.

This unit cannot recognize USB devices via a USB hub.

If you have any questions or problems concerning your unit that are not covered in the owners manual, consult your nearest Sony dealer

USBPort(s): Front USB - Full Speed

Antenna Terminal(s): AM/FM Antenna Input Terminal

12V Trigger Output(s):

Power antenna

Amplifier turn on

RemoteJack: Optional wired remote input terminal

Audio In:

Front Aux with variable level: -8dB ∼ +18dB

Front USB input

Sony Bus terminals

Infrared Port: Wireless remote

Dimensions

Weight: 1.3 kg (2 lb. 14 oz.)

Measurements: 178 x 50 x 179mm

Supplied Accessories

Parts for installation and connections (1 set)

RM-X151 wireless remote

Optional Accessories

Replacement remote: RM-X151

CD changer (6discs): CDX-T69

Source selector: XA-C40

Aux-in selector: XA-300

HD Radio® tuner: XT-100HD

iPod® USB cable: RC-100IP

Color: Dark Titanium

UPC Code: 027242796003

1.Not all MP3 and WMA files may playback due to file variations. Copyright protected ACC-LC files cannot be played back.

2.Ability to use all generations of iPod products may vary as not all products are compatible. Compatible with iPod® touch, iPod Nano 3rd generation, iPod classic

3.Ability to use all forms of USB devices may vary as not all devices are compatible.

© 2010 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, Walkman, Xplōd, SenseMe, ZAPPIN, Quick-BrowZer and the Sony and Xplod logos are trademarks of Sony. iPhone and iPod are trademarks of Apple Inc., registered in the U.S. and other countries.

All other trademarks are trademarks of their respective owners. Features and specifications are subject to change without notice. Non-metric weights and measures are approximate and may vary.

Amplifier Section

Speaker Impedance: 4-8 Ohms	Please visit the Dealer Source for current information at
Max power output: 52 watts x 4 at 4 ohms
Tuner		www.sony.com/dealersource
FM Usable Sensitivity: 10 dBf		Last Updated: 04/13/2011
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •www.sony.com
Selectivity: 75 dB at 400 kHz
