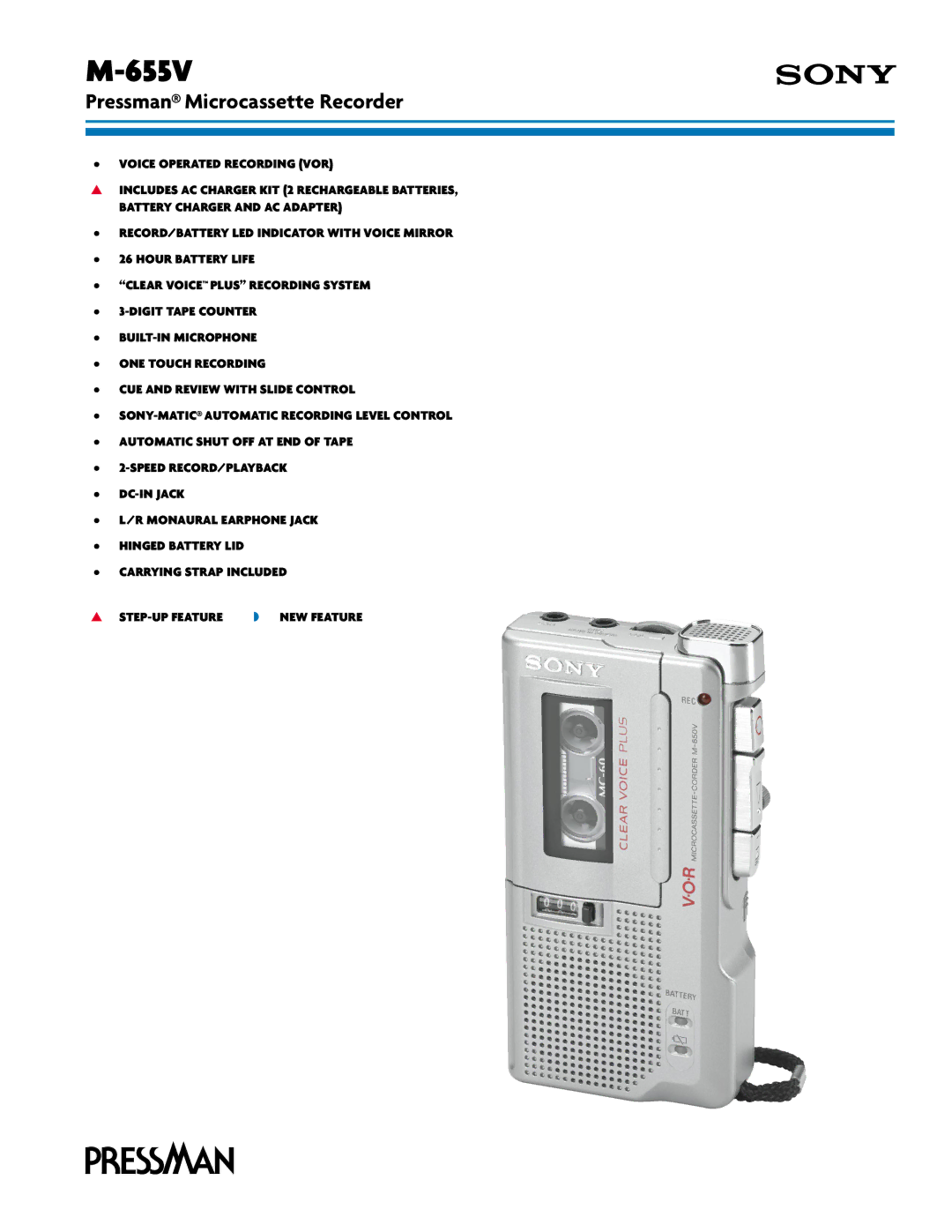

Sony M-655V manual Features, Specifications, Tape System 2-Track 1-Channel monaural

M-655V

features

•VOICE OPERATED RECORDING (VOR) activates the recorder only when audible sound is present, conserving tape and eliminating soundless passages

specifications

TAPE SYSTEM: 2-Track 1-Channel monaural

FREQUENCY RESPONSE: 250-4000Hz

INPUTS: DC-In, 3V

OUTPUTS: Earphone/Headphones

▲ INCLUDES AC CHARGER KIT (2 RECHARGEABLE BATTERIES, BATTERY SPEAKER: 1" (28mm)

CHARGER AND AC ADAPTER) so this Pressman® recorder is ready to go to work for you right out of the box; offers great convenience and economy over disposable batteries plus two-way operation (AC or battery power)

•RECORD/BATTERY LED INDICATOR WITH VOICE MIRROR confirms recording operation by mirroring voice with LED illumination and alerts the user of low battery power

•26 HOUR BATTERY LIFE is made possible by advanced technology which extends battery power beyond previous limits

•“CLEAR VOICE™ PLUS” RECORDING SYSTEM enhances voice quality during record and playback for greater clarity

•3-DIGIT TAPE COUNTER makes it easy to find a specific location on the tape for rapid access and editing

•BUILT-IN MICROPHONE for extra convenience, eliminates the need for an external microphone

•ONE-TOUCH RECORDING for simplified, quick Play/Record operation

•CUE AND REVIEW WITH SLIDE CONTROL provides sound during Fast Forward and Rewind modes to help find specific passages

•SONY-MATIC® AUTOMATIC RECORDING LEVEL CONTROL uses advanced circuitry to ensure correct recording level

POWER REQUIREMENTS: DC 3V with “AA” x 2 rechargeable batteries (supplied) or “AA” x 2 alkaline batteries (optional)

AC 120V, 60Hz with AC adaptor (supplied)

COLOR: Silver

DIMENSIONS (WHD): 4 5⁄8" x 2 1⁄2" x 1" (119.1 x 62.2 x 25.4mm)

WEIGHT: 3 7⁄8 oz (109g)

SUPPLIED ACCESSORIES: Rechargeable “AA” Batteries x 2, Battery Charger, AC Adaptor

OPTIONAL ACCESSORIES: MC-60 Microcassettes

©2002 Sony Electronics Inc.

Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Clear Voice, Pressman and Sony-Matic are trademarks of Sony.

Features and specifications are subject to change without notice. Non-metric weights and measures are approximate.

•AUTOMATIC SHUT OFF AT END OF TAPE pops up buttons to conserve battery power, reduces mechanical wear, and alerts you that the end of the tape has been reached

•2-SPEED RECORD AND PLAYBACK gives you the option of recording on a standard microcassette at either normal speed of 2.4cm/sec or half the normal speed at 1.2cm/sec for extended recording or dictation sessions

•3V DC-IN JACK for 2-way operation using replaceable batteries or with optional AC adaptor

•L/R MONAURAL EARPHONE JACK provide sound in both ears when using with an optional stereo headset

•BUILT-IN SPEAKER has excellent quality to monitor tape playback

•HINGED BATTERY LID helps prevent accidental loss when changing batteries

•CARRYING STRAP INCLUDED provides an extra measure of security when carrying

Sony Electronics Inc • 1 Sony Drive, Park Ridge, New Jersey 07656 • www.sony.com Printed in USA 2/2002
