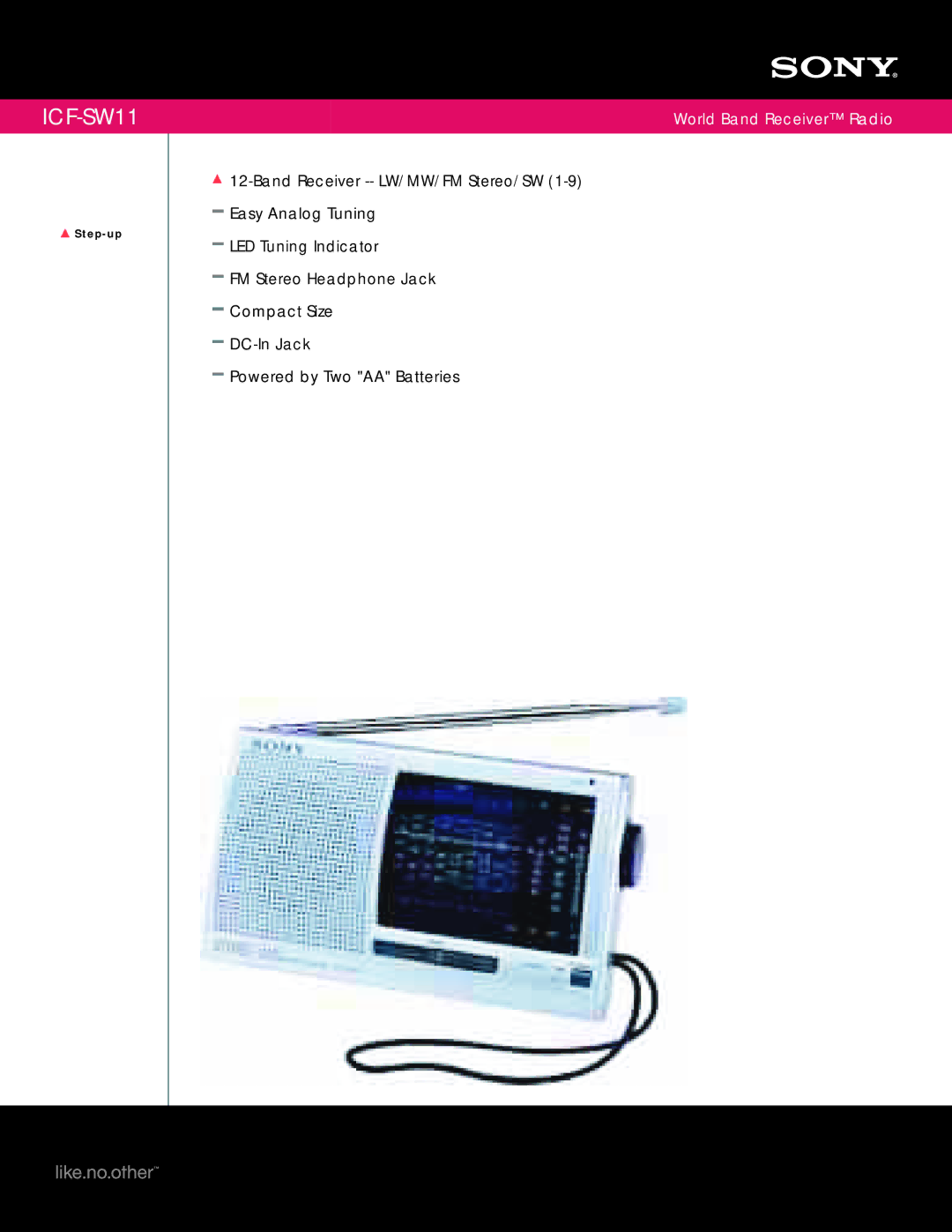

ICF-SW11

World Band Receiver™ Radio













Features

12-Band Receiver -- LW/MW/FM Stereo/SW (1-9) lets you

listen to a worldwide range of frequencies at home and abroad, including FM stereo, MW, LW, and Shortwave bands 1-9

Easy Analog Tuning simplifies tuning-in desired stations

LED Tuning Indicator provides accurate indication of center frequency

FM Stereo Headphone Jack allows for FM stereo reception as well as private listening and improved sound clarity in noisy environments

Compact Size means you can you slip this lightweight radio into a jacket pocket or briefcase for easy portability

DC-In Jack lets you use an optional AC Adaptor to operate the radio

Powered by Two "AA" Batteries

Supplied Accessories

Short Wave Guide Book

Optional Accessories

AC Power Adaptor

Car Power Adaptor (DCC-E130L)

Color: Black, Silver

UPC Code: 027242560413

©2006 Sony Electronics Inc.

Features and specifications are subject to change without notice. Non-metric weights and measures are approximate.

All rights reserved. Sony, World Band Receiver, and like.no.other are trademarks of Sony.Reproduction in whole or in part without written permission is prohibited.

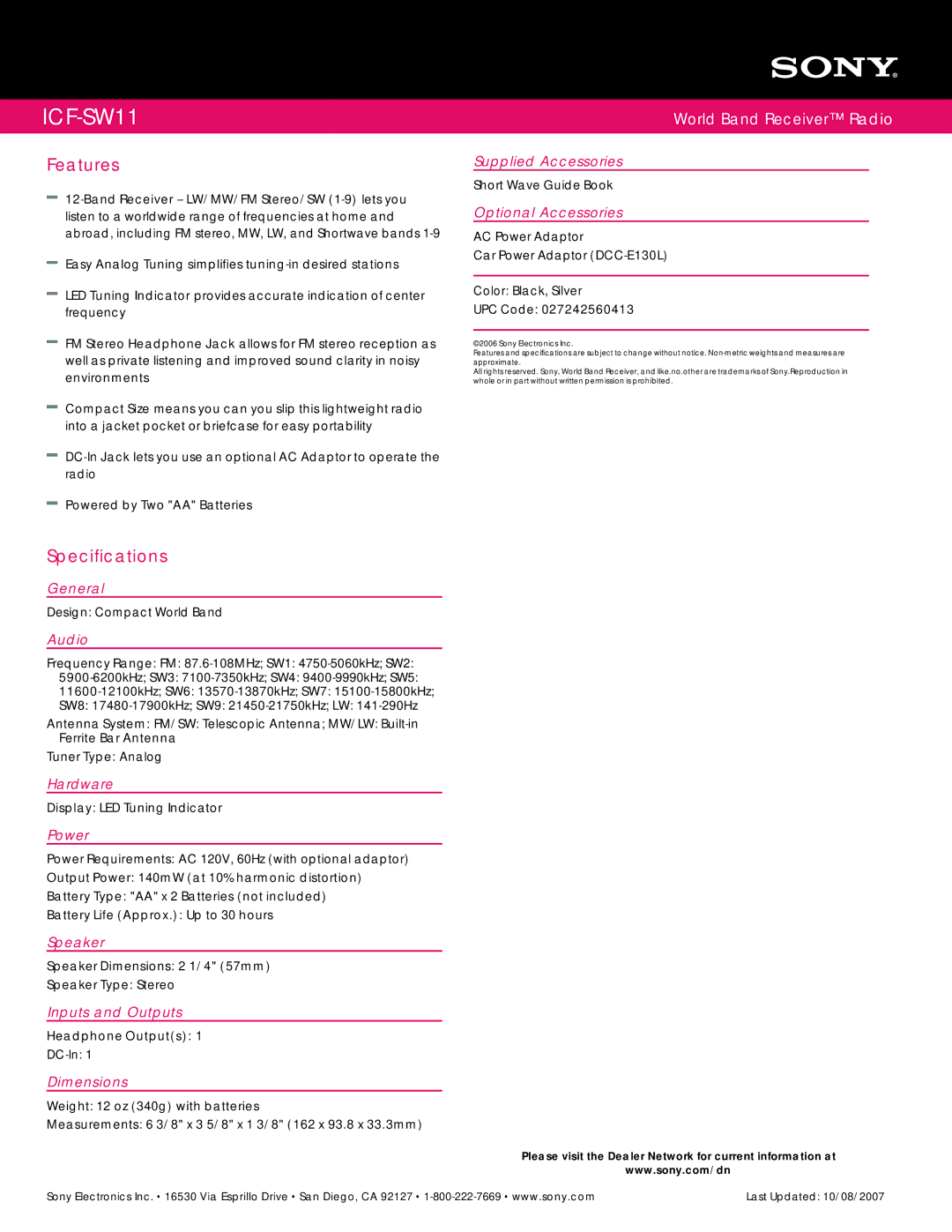

Specifications

General

Design: Compact World Band

Audio

Frequency Range: FM: 87.6-108MHz; SW1: 4750-5060kHz; SW2:

5900-6200kHz; SW3: 7100-7350kHz; SW4: 9400-9990kHz; SW5:

11600-12100kHz; SW6: 13570-13870kHz; SW7: 15100-15800kHz;

SW8: 17480-17900kHz; SW9: 21450-21750kHz; LW: 141-290Hz

Antenna System: FM/SW: Telescopic Antenna; MW/LW: Built-in

Ferrite Bar Antenna

Tuner Type: Analog

Hardware

Display: LED Tuning Indicator

Power

Power Requirements: AC 120V, 60Hz (with optional adaptor)

Output Power: 140mW (at 10% harmonic distortion)

Battery Type: "AA" x 2 Batteries (not included)

Battery Life (Approx.): Up to 30 hours

Speaker

Speaker Dimensions: 2 1/4" (57mm)

Speaker Type: Stereo

Inputs and Outputs

Headphone Output(s): 1

DC-In: 1

Dimensions

Weight: 12 oz (340g) with batteries

Measurements: 6 3/8" x 3 5/8" x 1 3/8" (162 x 93.8 x 33.3mm)

Please visit the Dealer Network for current information at

www.sony.com/dn

Sony Electronics Inc. •16530 Via Esprillo Drive •San Diego, CA 92127 •1-800-222-7669 •www.sony.com

Last Updated: 10/08/2007

Page 2
Image 2
Sony 334, Radio, ICF-SW11 manual Features, Specifications

334, Radio, ICF-SW11 specifications

The Sony ICF-SW11 is a compact and versatile shortwave radio designed for enthusiasts and casual listeners alike. This model is designed to deliver excellent reception qualities and a wide range of listening options, making it a favorite among travelers and radio hobbyists.

One of the standout features of the ICF-SW11 is its capability to receive a multitude of frequencies, including AM, FM, and SW (shortwave). The device can tune into shortwave bands from 3.2 MHz to 21.9 MHz, enabling users to access broadcasts from around the globe. This feature means that whether you're looking to catch the news from a distant country or enjoy international music, the ICF-SW11 can connect you to the world.

The radio is equipped with a built-in digital PLL synthesizer tuning system, which ensures precise tuning and reduces drift, allowing for a more stable listening experience. The easy-to-read LCD display provides information such as frequency and band, making navigation simple and user-friendly.

The ICF-SW11 has a durable and compact design, making it portable for on-the-go usage. Weighing in at a mere 0.66 pounds, it can easily fit into a backpack or bag, making it ideal for travelers, campers, or those who enjoy outdoor activities. The long-lasting battery life ensures that you can listen to your favorite programs for hours.

Sound quality is another area where the ICF-SW11 excels. The built-in speaker delivers clear audio, and there is also an earphone jack for private listening, which is especially useful in noisy environments. Users can also take advantage of the AC power adapter option, giving more flexibility in how the radio is powered.

In terms of user-friendliness, the ICF-SW11 features simple controls for tuning and volume, allowing anyone to operate it with ease. The radio also offers a telescopic antenna that enhances reception quality, ensuring that you can enjoy your favorite broadcasts with minimal interference.

In summary, the Sony ICF-SW11 radio is a robust device filled with features suited for any radio enthusiast. Its broad frequency range, precise tuning capabilities, portable design, impressive sound quality, and user-friendly controls provide an exceptional experience, making it an excellent choice for anyone looking to explore the airwaves.
