Sony VGN-FZ340B manual VGN-FZ340N/B, Specifications, VAIO FZ Series Notebook PC

VGN-FZ340N/B

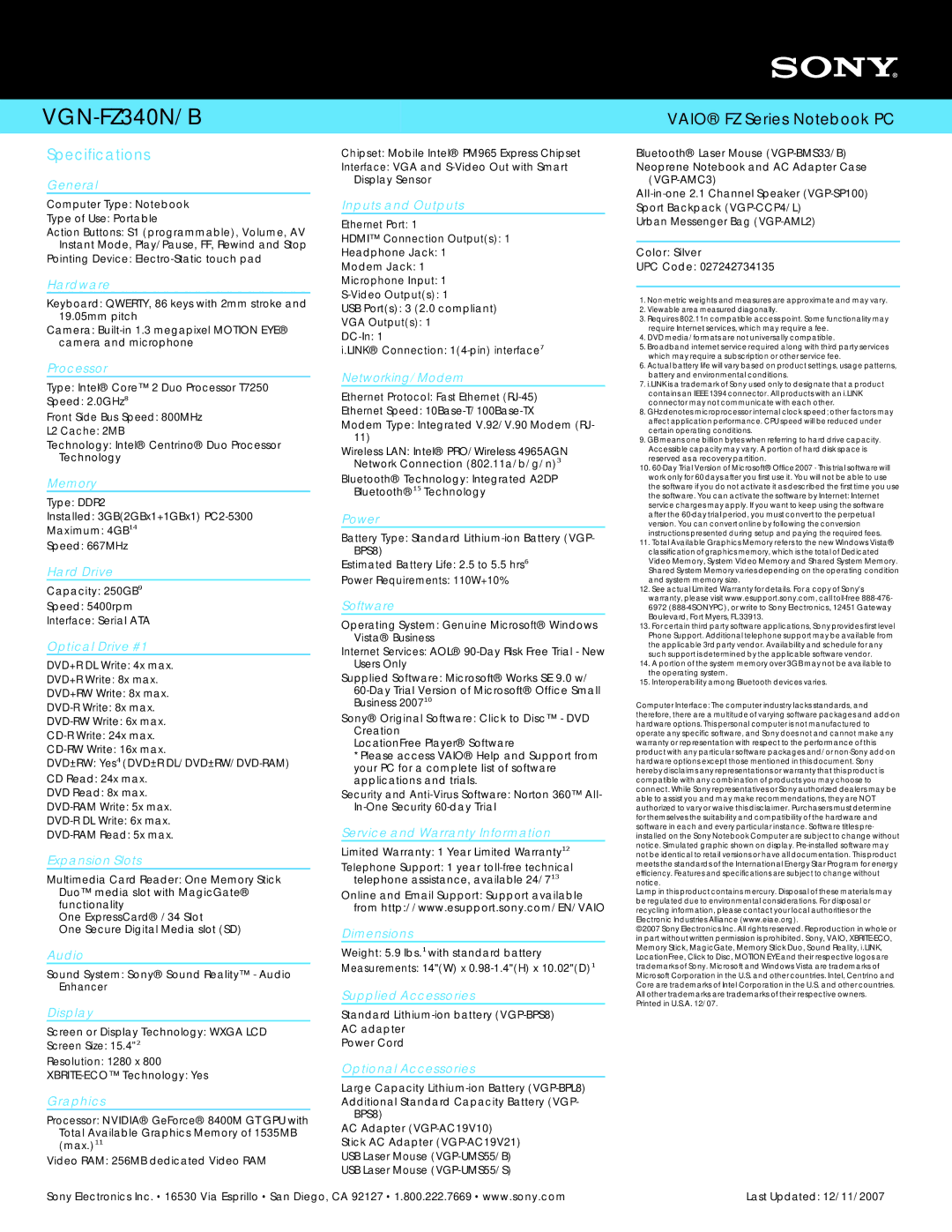

Specifications

General

Computer Type: Notebook

Type of Use: Portable

Action Buttons: S1 (programmable), Volume, AV Instant Mode, Play/Pause, FF, Rewind and Stop

Pointing Device: Electro-Static touch pad

Hardware

Keyboard: QWERTY, 86 keys with 2mm stroke and 19.05mm pitch

Camera: Built-in 1.3 megapixel MOTION EYE® camera and microphone

Processor

Type: Intel® Core™ 2 Duo Processor T7250

Speed: 2.0GHz8

Front Side Bus Speed: 800MHz

L2 Cache: 2MB

Technology: Intel® Centrino® Duo Processor Technology

Memory

Type: DDR2

Installed: 3GB(2GBx1+1GBx1) PC2-5300

Maximum: 4GB14

Speed: 667MHz

Hard Drive

Capacity: 250GB9

Speed: 5400rpm

Interface: Serial ATA

Optical Drive #1

DVD+R DL Write: 4x max.

DVD+R Write: 8x max.

DVD+RW Write: 8x max.

DVD-R Write: 8x max.

DVD-RW Write: 6x max.

CD-R Write: 24x max.

CD-RW Write: 16x max.

DVD±RW: Yes4 (DVD±R DL/DVD±RW/DVD-RAM)

CD Read: 24x max.

DVD Read: 8x max.

DVD-RAM Write: 5x max.

DVD-R DL Write: 6x max.

DVD-RAM Read: 5x max.

Expansion Slots

Multimedia Card Reader: One Memory Stick Duo™ media slot with MagicGate® functionality

One ExpressCard® /34 Slot

One Secure Digital Media slot (SD)

Audio

Sound System: Sony® Sound Reality™ - Audio Enhancer

Display

Screen or Display Technology: WXGA LCD

Screen Size: 15.4”2

Resolution: 1280 x 800

XBRITE-ECO™ Technology: Yes

Graphics

Processor: NVIDIA® GeForce® 8400M GT GPU with

Total Available Graphics Memory of 1535MB (max.)11

Video RAM: 256MB dedicated Video RAM

Chipset: Mobile Intel® PM965 Express Chipset

Interface: VGA and S-Video Out with Smart Display Sensor

Inputs and Outputs

Ethernet Port: 1

HDMI™ Connection Output(s): 1

Headphone Jack: 1

Modem Jack: 1

Microphone Input: 1

S-Video Output(s): 1

USB Port(s): 3 (2.0 compliant)

VGA Output(s): 1

DC-In: 1

i.LINK® Connection: 1(4-pin) interface7

Networking/Modem

Ethernet Protocol: Fast Ethernet (RJ-45)

Ethernet Speed: 10Base-T/100Base-TX

Modem Type: Integrated V.92/V.90 Modem (RJ- 11)

Wireless LAN: Intel® PRO/Wireless 4965AGN Network Connection (802.11a/b/g/n)3

Bluetooth® Technology: Integrated A2DP Bluetooth®15 Technology

Power

Battery Type: Standard Lithium-ion Battery (VGP- BPS8)

Estimated Battery Life: 2.5 to 5.5 hrs6

Power Requirements: 110W+10%

Software

Operating System: Genuine Microsoft® Windows Vista® Business

Internet Services: AOL® 90-Day Risk Free Trial - New Users Only

Supplied Software: Microsoft® Works SE 9.0 w/ 60-Day Trial Version of Microsoft® Office Small Business 200710

Sony® Original Software: Click to Disc™ - DVD Creation

LocationFree Player® Software

*Please access VAIO® Help and Support from your PC for a complete list of software applications and trials.

Security and Anti-Virus Software: Norton 360™ All- In-One Security 60-day Trial

Service and Warranty Information

Limited Warranty: 1 Year Limited Warranty12

Telephone Support: 1 year toll-free technical telephone assistance, available 24/713

Online and Email Support: Support available from http://www.esupport.sony.com/EN/VAIO

Dimensions

Weight: 5.9 lbs.1 with standard battery

Measurements: 14"(W) x 0.98-1.4"(H) x 10.02"(D)1

Supplied Accessories

Standard Lithium-ion battery (VGP-BPS8) AC adapter

Power Cord

Optional Accessories

Large Capacity Lithium-ion Battery (VGP-BPL8)

Additional Standard Capacity Battery (VGP-

BPS8)

AC Adapter (VGP-AC19V10)

Stick AC Adapter (VGP-AC19V21)

USB Laser Mouse (VGP-UMS55/B)

USB Laser Mouse (VGP-UMS55/S)

VAIO® FZ Series Notebook PC

Bluetooth® Laser Mouse (VGP-BMS33/B)

Neoprene Notebook and AC Adapter Case

(VGP-AMC3)

All-in-one 2.1 Channel Speaker (VGP-SP100)

Sport Backpack (VGP-CCP4/L)

Urban Messenger Bag (VGP-AML2)

Color: Silver

UPC Code: 027242734135

1.Non-metric weights and measures are approximate and may vary.

2.Viewable area measured diagonally.

3.Requires 802.11n compatible access point. Some functionality may require Internet services, which may require a fee.

4.DVD media/formats are not universally compatible.

5.Broadband internet service required along with third party services which may require a subscription or other service fee.

6.Actual battery life will vary based on product settings, usage patterns, battery and environmental conditions.

7.i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connector. All products with an i.LINK connector may not communicate with each other.

8.GHz denotes microprocessor internal clock speed; other factors may affect application performance. CPU speed will be reduced under certain operating conditions.

9.GB means one billion bytes when referring to hard drive capacity. Accessible capacity may vary. A portion of hard disk space is reserved as a recovery partition.

10.60-Day Trial Version of Microsoft® Office 2007 - This trial software will work only for 60 days after you first use it. You will not be able to use the software if you do not activate it as described the first time you use the software. You can activate the software by Internet: Internet service charges may apply. If you want to keep using the software after the 60-day trial period, you must convert to the perpetual version. You can convert online by following the conversion instructions presented during setup and paying the required fees.

11.Total Available Graphics Memory refers to the new Windows Vista® classification of graphics memory, which is the total of Dedicated Video Memory, System Video Memory and Shared System Memory. Shared System Memory varies depending on the operating condition and system memory size.

12.See actual Limited Warranty for details. For a copy of Sony's warranty, please visit www.esupport.sony.com, call toll-free 888-476- 6972 (888-4SONYPC), or write to Sony Electronics, 12451 Gateway Boulevard, Fort Myers, FL 33913.

13.For certain third party software applications, Sony provides first level Phone Support. Additional telephone support may be available from the applicable 3rd party vendor. Availability and schedule for any such support is determined by the applicable software vendor.

14.A portion of the system memory over 3GB may not be available to the operating system.

15.Interoperability among Bluetooth devices varies.

Computer Interface: The computer industry lacks standards, and therefore, there are a multitude of varying software packages and add-on hardware options. This personal computer is not manufactured to operate any specific software, and Sony does not and cannot make any warranty or representation with respect to the performance of this product with any particular software packages and/or non-Sony add-on hardware options except those mentioned in this document. Sony hereby disclaims any representations or warranty that this product is compatible with any combination of products you may choose to connect. While Sony representatives or Sony authorized dealers may be able to assist you and may make recommendations, they are NOT authorized to vary or waive this disclaimer. Purchasers must determine for themselves the suitability and compatibility of the hardware and software in each and every particular instance. Software titles pre- installed on the Sony Notebook Computer are subject to change without notice. Simulated graphic shown on display. Pre-installed software may not be identical to retail versions or have all documentation. This product meets the standards of the International Energy Star Program for energy efficiency. Features and specifications are subject to change without notice.

Lamp in this product contains mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance (www.eiae.org).

©2007 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, VAIO, XBRITE-ECO, Memory Stick, MagicGate, Memory Stick Duo, Sound Reality, i.LINK, LocationFree, Click to Disc, MOTION EYE and their respective logos are trademarks of Sony. Microsoft and Windows Vista are trademarks of Microsoft Corporation in the U.S. and other countries. Intel, Centrino and Core are trademarks of Intel Corporation in the U.S. and other countries. All other trademarks are trademarks of their respective owners. Printed in U.S.A. 12/07.

Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •www.sony.com

Last Updated: 12/11/2007
