Design and Specifications subject to change without notice.

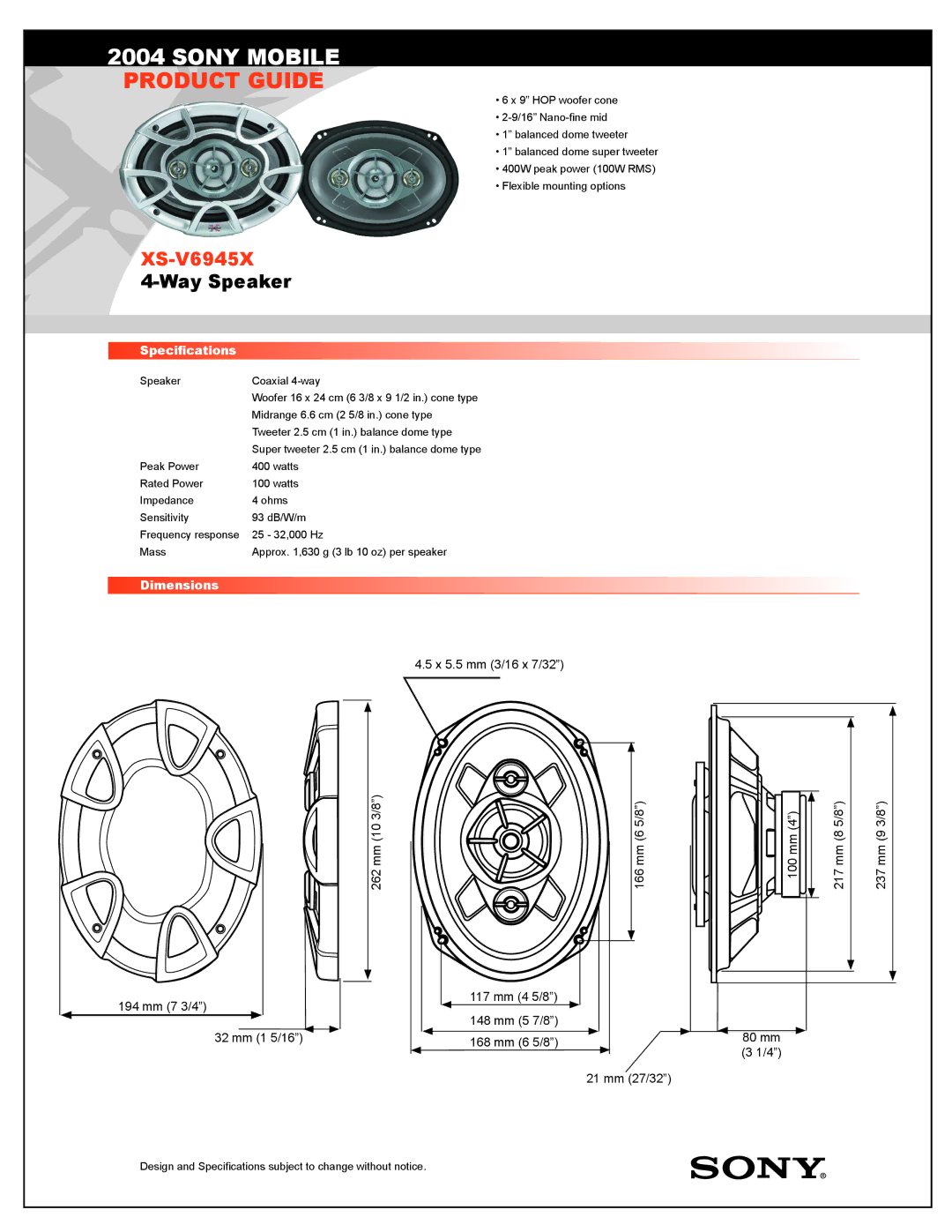

2004 SONY MOBILE

PRODUCT GUIDE

• 6 x 9” HOP woofer cone

2-9/16” Nano-fine mid

• 1” balanced dome tweeter

• 1” balanced dome super tweeter

• 400W peak power (100W RMS)

• Flexible mounting options

XS-V6945X

4-Way Speaker

Specifications

Speaker

Coaxial 4-way



Woofer 16 x 24 cm (6 3/8 x 9 1/2 in.) cone type



Midrange 6.6 cm (2 5/8 in.) cone type



Tweeter 2.5 cm (1 in.) balance dome type



Super tweeter 2.5 cm (1 in.) balance dome type

Peak Power

400 watts

Rated Power

100 watts

Impedance

4 ohms

Sensitivity

93 dB/W/m

Frequency response

25 - 32,000 Hz

Mass

Approx. 1,630 g (3 lb 10 oz) per speaker

Dimensions

4.5 x 5.5 mm (3/16 x 7/32”)

262 mm (10 3/8”)

194 mm (7 3/4”)

32 mm (1 5/16”)

166 mm (6 5/8”)

117 mm (4 5/8”)

148 mm (5 7/8”)

168 mm (6 5/8”)

21 mm (27/32”)

100 mm (4”)

217 mm (8 5/8”)

237 mm (9 3/8”)

80 mm





(3 1/4”)





Design and Specifications subject to change without notice.

Page 1
Image 1
Sony XS-V6945X specifications Sony Mobile, Product Guide, Way Speaker

XS-V6945X specifications

The Sony XS-V6945X is a powerful 6x9 inch coaxial speaker designed to deliver high-quality sound in your vehicle. Boasting an impressive set of features and technologies, this speaker is engineered for those who demand clarity, depth, and volume from their audio experience.

One of the standout characteristics of the XS-V6945X is its maximum input power of 420 watts and a rated power of 60 watts RMS. This allows the speaker to produce a rich and dynamic sound, capable of handling a wide range of musical genres. The speaker achieves its impressive audio performance through Sony's advanced technology, which includes a high-quality polypropylene woofer cone. This component is crafted to provide robust bass and smooth midrange frequencies, ensuring that every beat and note is heard with precision and clarity.

Complementing the woofer is a 1-inch polyester diaphragm tweeter, designed to reproduce the high-frequency sounds with accuracy. This pairing of a superior woofer and tweeter results in a balanced and immersive audio experience, where vocals are clear and instruments are distinct. With a frequency response range of 40 Hz to 22 kHz, the XS-V6945X is versatile enough to accommodate various audio playback needs, from the lowest bass lines to soaring treble notes.

Another key aspect of the XS-V6945X is its sensitivity rating of 92 dB, which ensures that the speaker can produce loud sound without requiring excessive power. This makes it ideal for use in vehicles where space and power constraints are common. The speaker is engineered with a durable design that features a heat-resistant voice coil and a sturdy plastic frame, ensuring longevity and reliability even under harsh conditions.

Installation of the XS-V6945X is straightforward, with multiple mounting options that cater to various vehicles. The speaker’s design allows for easy integration into existing speaker locations, making it an excellent choice for those looking to upgrade their car audio system without extensive modifications.

In summary, the Sony XS-V6945X 6x9 inch coaxial speaker encapsulates a blend of advanced technology, powerful performance, and durable construction. With its impressive power handling, balanced sound profile, and ease of installation, it is an ideal choice for car audio enthusiasts looking to enhance their listening experience on the road. Whether you're enjoying your favorite tracks or catching up with podcasts, the XS-V6945X delivers exceptional audio quality that enhances every journey.
