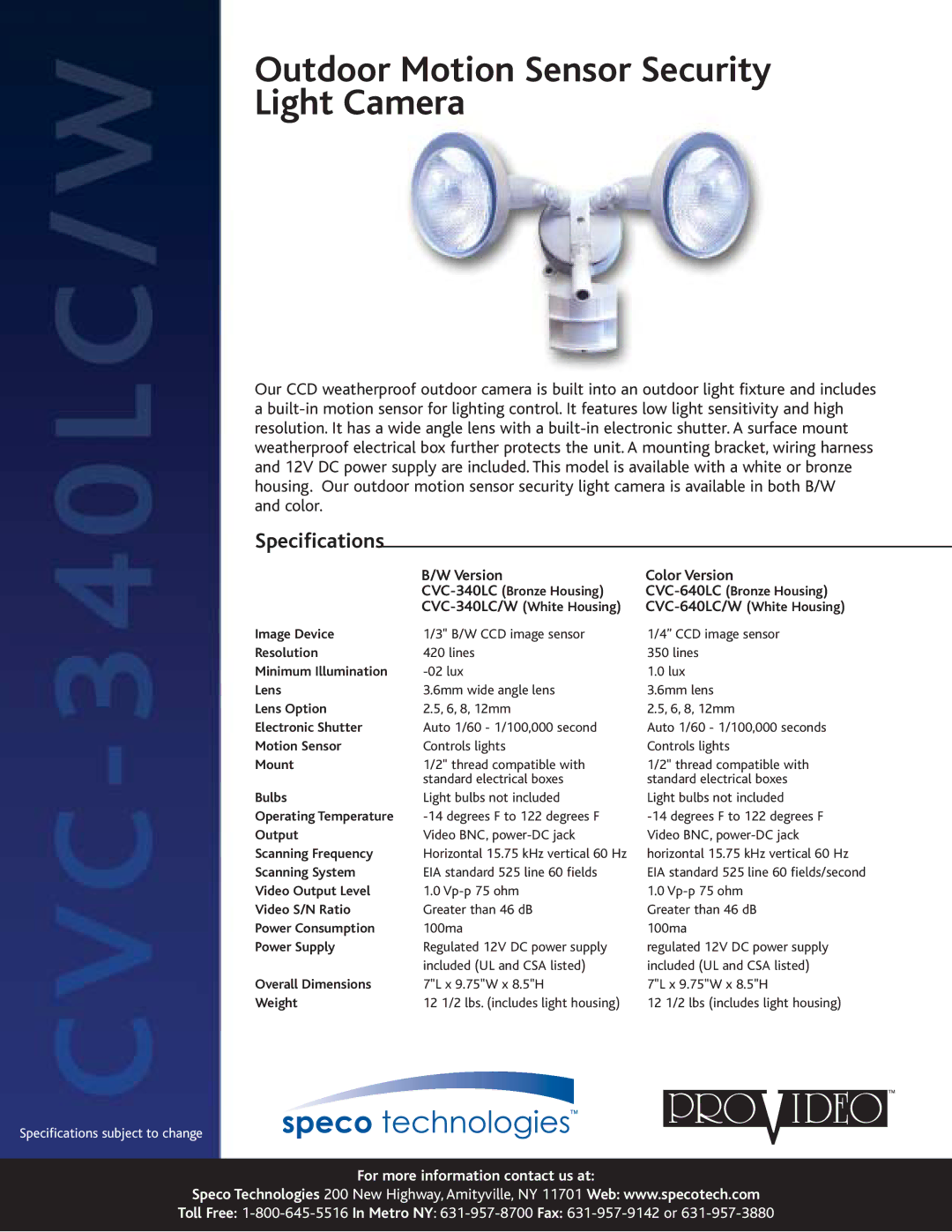

Speco Technologies CVC-340LC/W specifications Outdoor Motion Sensor Security Light Camera

Outdoor Motion Sensor Security

Light Camera

Our CCD weatherproof outdoor camera is built into an outdoor light fixture and includes a built-in motion sensor for lighting control. It features low light sensitivity and high resolution. It has a wide angle lens with a built-in electronic shutter. A surface mount weatherproof electrical box further protects the unit. A mounting bracket, wiring harness and 12V DC power supply are included. This model is available with a white or bronze housing. Our outdoor motion sensor security light camera is available in both B/W and color.

Specifications

	B/W Version	Color Version
	CVC-340LC(Bronze Housing)	CVC-640LC(Bronze Housing)
	CVC-340LC/W(White Housing)	CVC-640LC/W(White Housing)
Image Device	1/3" B/W CCD image sensor	1/4” CCD image sensor
Resolution	420 lines	350 lines
Minimum Illumination	-02 lux	1.0 lux
Lens	3.6mm wide angle lens	3.6mm lens
Lens Option	2.5, 6, 8, 12mm	2.5, 6, 8, 12mm
Electronic Shutter	Auto 1/60 - 1/100,000 second	Auto 1/60 - 1/100,000 seconds
Motion Sensor	Controls lights	Controls lights
Mount	1/2" thread compatible with	1/2" thread compatible with
	standard electrical boxes	standard electrical boxes
Bulbs	Light bulbs not included	Light bulbs not included
Operating Temperature	-14 degrees F to 122 degrees F	-14 degrees F to 122 degrees F
Output	Video BNC, power-DC jack	Video BNC, power-DC jack
Scanning Frequency	Horizontal 15.75 kHz vertical 60 Hz	horizontal 15.75 kHz vertical 60 Hz
Scanning System	EIA standard 525 line 60 fields	EIA standard 525 line 60 fields/second
Video Output Level	1.0 Vp-p 75 ohm	1.0 Vp-p 75 ohm
Video S/N Ratio	Greater than 46 dB	Greater than 46 dB
Power Consumption	100ma	100ma
Power Supply	Regulated 12V DC power supply	regulated 12V DC power supply
	included (UL and CSA listed)	included (UL and CSA listed)
Overall Dimensions	7"L x 9.75"W x 8.5"H	7"L x 9.75"W x 8.5"H
Weight	12 1/2 lbs. (includes light housing)	12 1/2 lbs (includes light housing)

Specifications subject to change

For more information contact us at:

Speco Technologies 200 New Highway,Amityville, NY 11701 Web: www.specotech.com Toll Free: 1-800-645-5516In Metro NY: 631-957-8700Fax: 631-957-9142 or 631-957-3880
