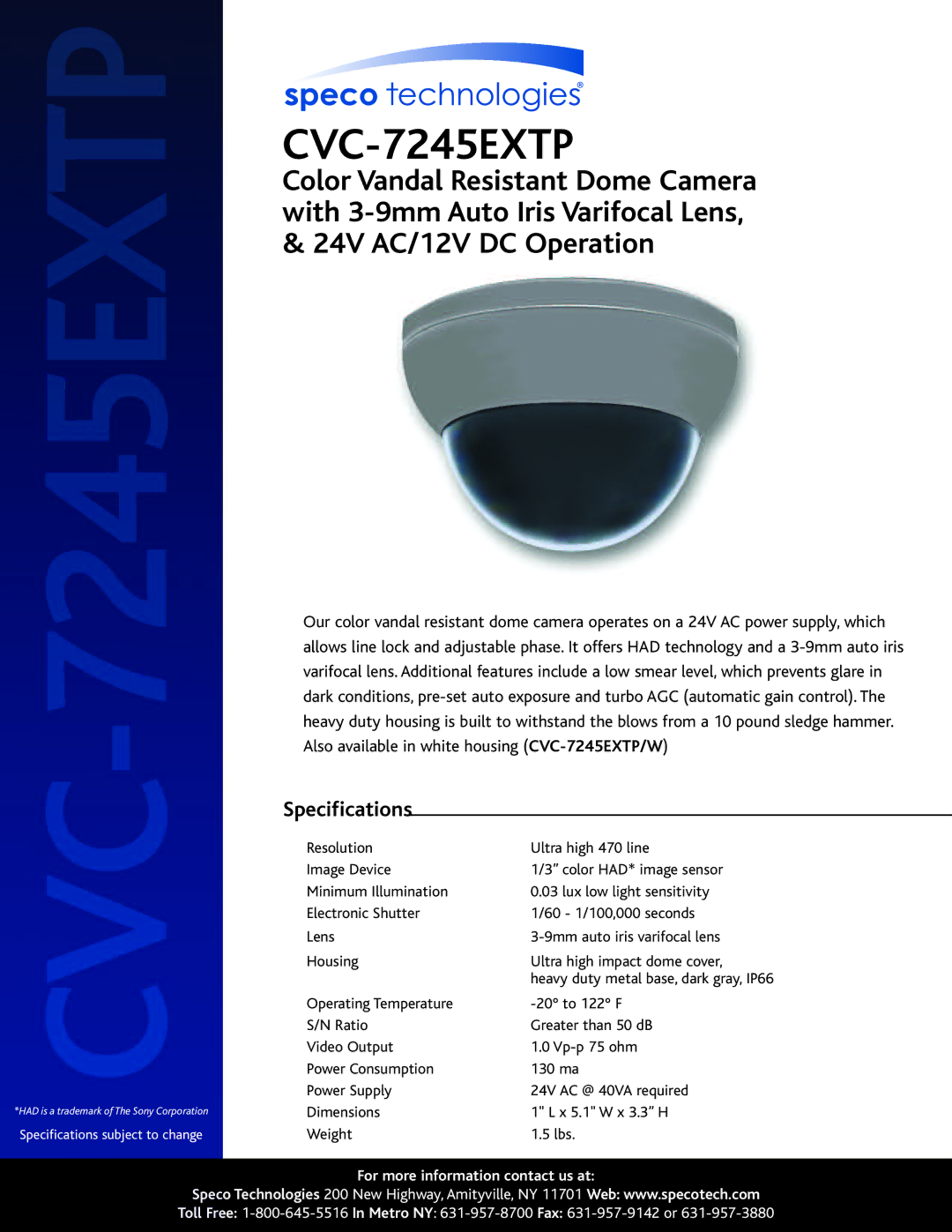

Speco Technologies CVC-7245EXTP specifications Specifications, For more information contact us at

CVC-7245EXTP

Color Vandal Resistant Dome Camera with 3-9mm Auto Iris Varifocal Lens, & 24V AC/12V DC Operation

*HAD is a trademark of The Sony Corporation

Specifications subject to change

Our color vandal resistant dome camera operates on a 24V AC power supply, which allows line lock and adjustable phase. It offers HAD technology and a 3-9mm auto iris varifocal lens. Additional features include a low smear level, which prevents glare in dark conditions, pre-set auto exposure and turbo AGC (automatic gain control). The heavy duty housing is built to withstand the blows from a 10 pound sledge hammer. Also available in white housing (CVC-7245EXTP/W)

Specifications

Resolution	Ultra high 470 line
Image Device	1/3” color HAD* image sensor
Minimum Illumination	0.03 lux low light sensitivity
Electronic Shutter	1/60 - 1/100,000 seconds
Lens	3-9mm auto iris varifocal lens
Housing	Ultra high impact dome cover,
	heavy duty metal base, dark gray, IP66
Operating Temperature	-20° to 122° F
S/N Ratio	Greater than 50 dB
Video Output	1.0 Vp-p 75 ohm
Power Consumption	130 ma
Power Supply	24V AC @ 40VA required
Dimensions	1" L x 5.1" W x 3.3” H
Weight	1.5 lbs.

For more information contact us at:

Speco Technologies 200 New Highway,Amityville, NY 11701 Web: www.specotech.com Toll Free: 1-800-645-5516In Metro NY: 631-957-8700Fax: 631-957-9142 or 631-957-3880
