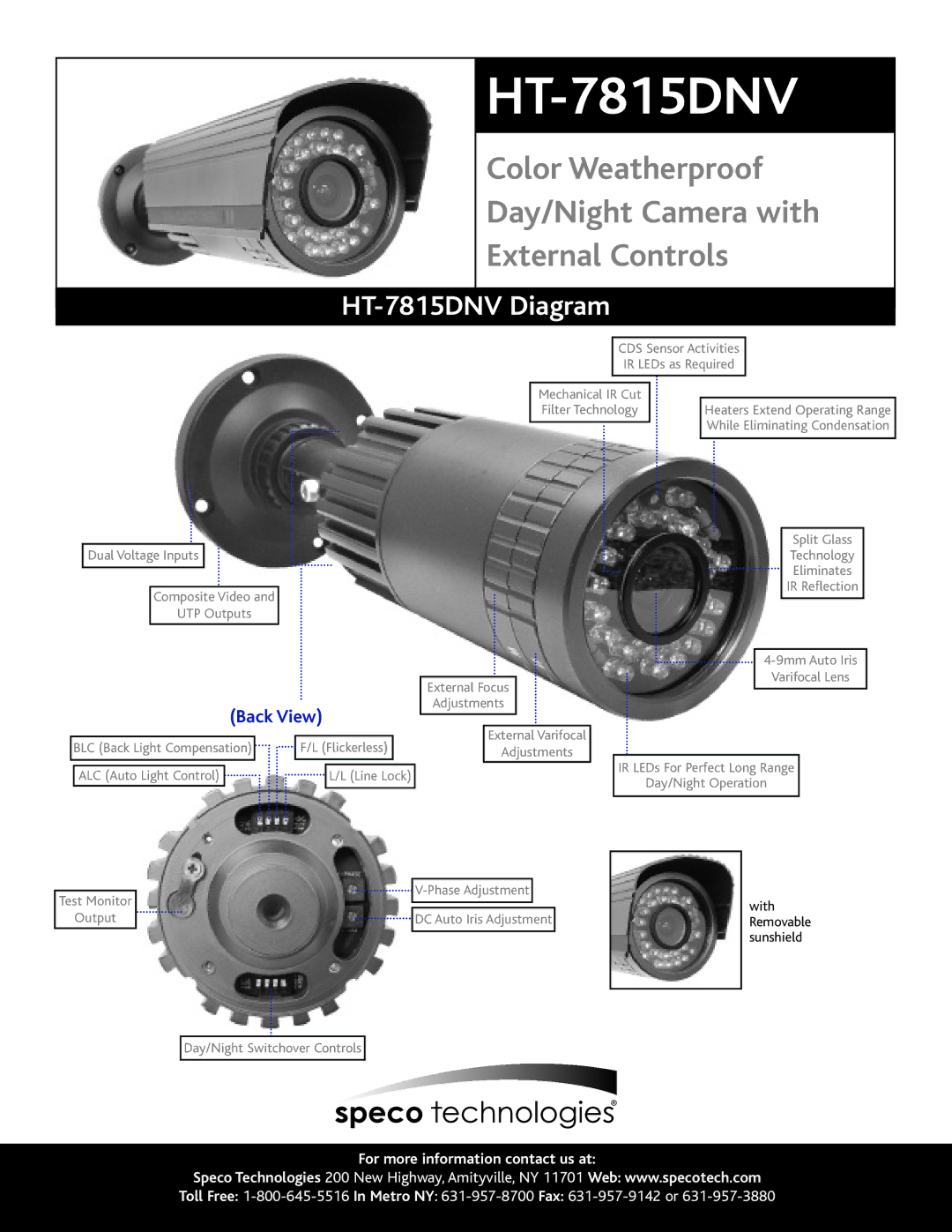

HT-7815DNV

Color Weatherproof Day/Night Camera with External Controls

Specifications subject to change

•External lens control of zoom and focus • Split Glass Technology eliminates IR reflections

•Mechanical day/night IR cut filter

•Lux level dip switch controls when the camera switches into B/W mode

•Built-in 25 IR LED'S & CDS sensor • IR range 100 ft.*

•UTP function built-in for use with twisted pair wiring in addition to standard coax

•1/3" SONY ExView** CCD • Day/night DC varifocal auto iris lens (4mm-9mm)

•Video test connector for easy installation • Dual voltage operation

•Built-in heater extends operating range and eliminates condensation • Weatherproof sunshield

•Rear panel controls (BLC, ELC, F/L, L/L) • Turbo AGC • Heat sink body

Image Sensor	1/3”Sony ExView** CCD
Resolution	480 lines
Minimum Illumination	.0.03 lux (IR off) 0.00 lux (IR on)
Lens	Day/Night DC Auto Iris Varifocal Lens (4mm-9mm)
CDS Sensor	Photoconductive Cells Adjustable
Electronic Shutter	1/60 - 1/100,000 seconds
Video Output	1.0 Vp-p into75 ohms composite
TV System	NTSC
Scanning System	2:1 Interlace
Sync System	Line Locked/ Adjustable V-Phase
	Line Lock/Internal On-Off
S/N Ratio	More than 60 dB
IR/Cut Filter	Mechanical - Auto Adjusts when required
Power Supply	24 Volts AC, 12 Volts DC- Dual Voltage
Power Consumption	700mA
Operating Temperature	-20˚F to 122˚F - RH 95%
Weatherproof Rating	IP-65
Dimensions	.3.125”W x 3.5”H x 12”L
Weight	3 lbs.
*Depending on scene reflection
**ExView is a trademark of the Sony Corporation

HT-7815DNV Camera	Instructions	Video Test Cable
Mounting Hardware	Warranty card
