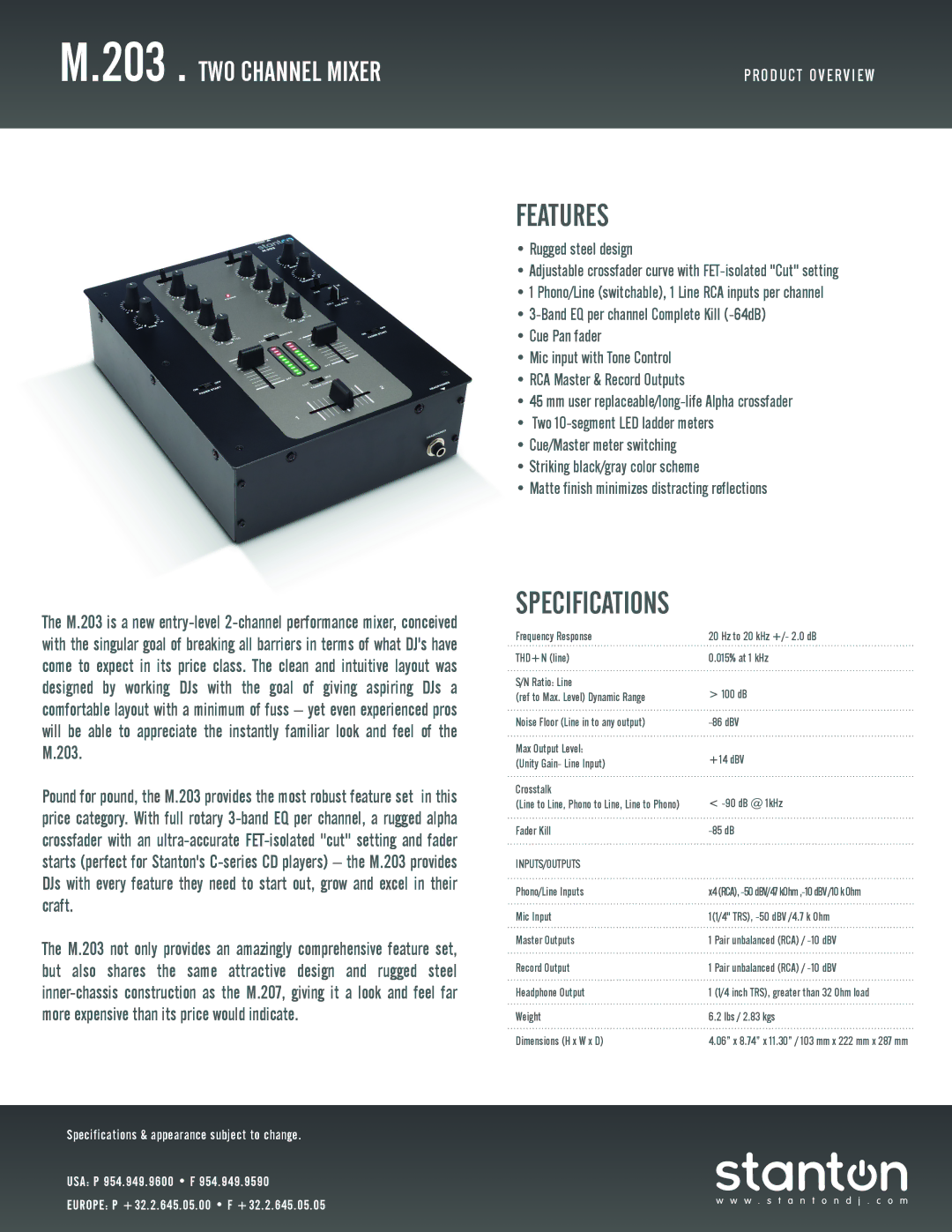

M.203 . TWO CHANNEL MIXER

The M.203 is a new entry-level 2-channel performance mixer, conceived with the singular goal of breaking all barriers in terms of what DJ's have come to expect in its price class. The clean and intuitive layout was designed by working DJs with the goal of giving aspiring DJs a comfortable layout with a minimum of fuss – yet even experienced pros will be able to appreciate the instantly familiar look and feel of the M.203.

Pound for pound, the M.203 provides the most robust feature set in this price category. With full rotary 3-band EQ per channel, a rugged alpha crossfader with an ultra-accurate FET-isolated "cut" setting and fader starts (perfect for Stanton's C-series CD players) – the M.203 provides DJs with every feature they need to start out, grow and excel in their craft.

The M.203 not only provides an amazingly comprehensive feature set, but also shares the same attractive design and rugged steel inner-chassis construction as the M.207, giving it a look and feel far more expensive than its price would indicate.

Specifications & appearance subject to change.

USA: P 954.949.9600 • F 954.949.9590

EUROPE: P +32.2.645.05.00 • F +32.2.645.05.05

P R O D U C T O V E R V I E W

FEATURES

Rugged steel design

Adjustable crossfader curve with FET-isolated "Cut" setting

1 Phono/Line (switchable), 1 Line RCA inputs per channel

3-Band EQ per channel Complete Kill (-64dB)

Cue Pan fader

Mic input with Tone Control

RCA Master & Record Outputs

45 mm user replaceable/long-life Alpha crossfader

Two 10-segment LED ladder meters

Cue/Master meter switching

Striking black/gray color scheme

Matte finish minimizes distracting reflections

SPECIFICATIONS

Frequency Response

20 Hz to 20 kHz +/- 2.0 dB

THD+N (line)

0.015% at 1 kHz

S/N Ratio: Line

> 100 dB

(ref to Max. Level) Dynamic Range

Noise Floor (Line in to any output)

-86 dBV

Max Output Level:

+14 dBV

(Unity Gain- Line Input)



Crosstalk

< -90 dB @ 1kHz

(Line to Line, Phono to Line, Line to Phono)

Fader Kill

-85 dB

INPUTS/OUTPUTS



Phono/Line Inputs

x4 (RCA), -50 dBV/47 kOhm ,-10 dBV /10 k Ohm

Mic Input

1(1/4" TRS), -50 dBV /4.7 k Ohm

Master Outputs

1 Pair unbalanced (RCA) / -10 dBV

Record Output

1 Pair unbalanced (RCA) / -10 dBV

Headphone Output

1 (1/4 inch TRS), greater than 32 Ohm load

Weight

6.2 lbs / 2.83 kgs

Dimensions (H x W x D)

4.06” x 8.74” x 11.30” / 103 mm x 222 mm x 287 mm

Page 1
