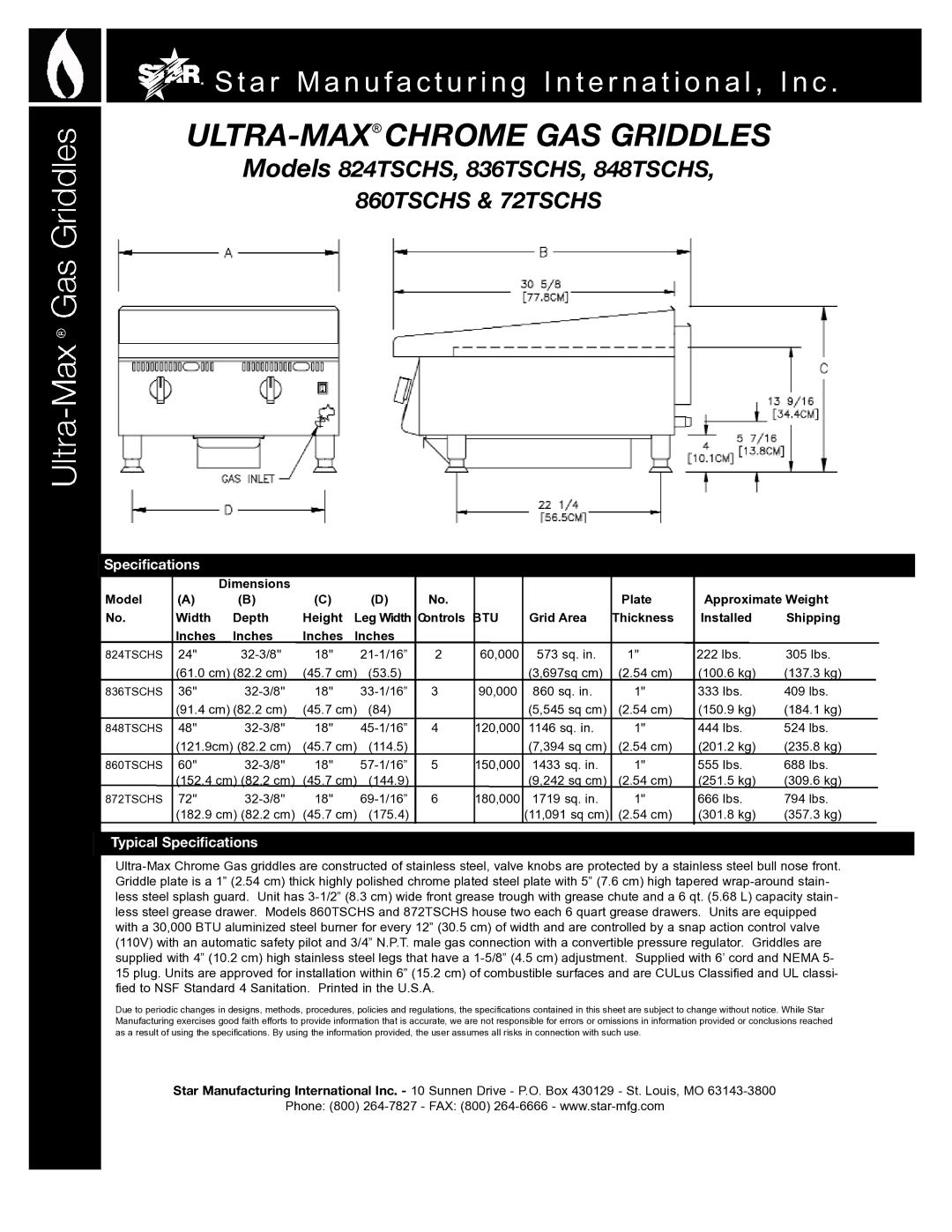

Star Manufacturing International, Inc .

ULTRA-MAX®CHROME GAS GRIDDLES

Models 824TSCHS, 836TSCHS, 848TSCHS,

860TSCHS & 72TSCHS



Specifications





























































Dimensions

























Model

(A)

(B)

(C)



(D)

No.





Plate

Approximate Weight



No.

Width

Depth

Height

Leg Width

Controls

BTU

Grid Area

Thickness

Installed

Shipping





Inches

Inches

Inches

Inches



















824TSCHS

24"

32-3/8"

18"



21-1/16”

2

60,000

573 sq. in.

1"

222 lbs.

305 lbs.





(61.0 cm) (82.2 cm)

(45.7 cm)

(53.5)





(3,697sq cm)

(2.54 cm)

(100.6 kg)

(137.3 kg)





836TSCHS

36"

32-3/8"

18"



33-1/16”

3

90,000

860 sq. in.

1"

333 lbs.

409 lbs.





(91.4 cm) (82.2 cm)

(45.7 cm)

(84)





(5,545 sq cm)

(2.54 cm)

(150.9 kg)

(184.1 kg)



848TSCHS

48"

32-3/8"

18"



45-1/16”

4

120,000

1146 sq. in.

1"

444 lbs.

524 lbs.





(121.9cm) (82.2 cm)

(45.7 cm)

(114.5)





(7,394 sq cm)

(2.54 cm)

(201.2 kg)

(235.8 kg)





860TSCHS

60"

32-3/8"

18"



57-1/16”

5

150,000

1433 sq. in.

1"

555 lbs.

688 lbs.





(152.4 cm) (82.2 cm)

(45.7 cm)

(144.9)





(9,242 sq cm)

(2.54 cm)

(251.5 kg)

(309.6 kg)



872TSCHS

72"

32-3/8"

18"



69-1/16”

6

180,000

1719 sq. in.

1"

666 lbs.

794 lbs.





(182.9 cm) (82.2 cm)

(45.7 cm)

(175.4)





(11,091 sq cm)

(2.54 cm)

(301.8 kg)

(357.3 kg)































Typical Specifications

Ultra-Max Chrome Gas griddles are constructed of stainless steel, valve knobs are protected by a stainless steel bull nose front. Griddle plate is a 1” (2.54 cm) thick highly polished chrome plated steel plate with 5” (7.6 cm) high tapered wrap-around stain- less steel splash guard. Unit has 3-1/2” (8.3 cm) wide front grease trough with grease chute and a 6 qt. (5.68 L) capacity stain- less steel grease drawer. Models 860TSCHS and 872TSCHS house two each 6 quart grease drawers. Units are equipped with a 30,000 BTU aluminized steel burner for every 12” (30.5 cm) of width and are controlled by a snap action control valve (110V) with an automatic safety pilot and 3/4” N.P.T. male gas connection with a convertible pressure regulator. Griddles are supplied with 4” (10.2 cm) high stainless steel legs that have a 1-5/8” (4.5 cm) adjustment. Supplied with 6’ cord and NEMA 5- 15 plug. Units are approved for installation within 6” (15.2 cm) of combustible surfaces and are CULus Classified and UL classi- fied to NSF Standard 4 Sanitation. Printed in the U.S.A.

Due to periodic changes in designs, methods, procedures, policies and regulations, the specifications contained in this sheet are subject to change without notice. While Star Manufacturing exercises good faith efforts to provide information that is accurate, we are not responsible for errors or omissions in information provided or conclusions reached as a result of using the specifications. By using the information provided, the user assumes all risks in connection with such use.

Star Manufacturing International Inc. - 10 Sunnen Drive - P.O. Box 430129 - St. Louis, MO 63143-3800

Phone: (800) 264-7827 - FAX: (800) 264-6666 - www.star-mfg.com
