Instruction Manual

3.5in Front Bay USB 2.0 22-in-1 Memory Card Reader

35FCREADBK2

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Packaging Contents

•1 x Internal Card Reader

•1 x 9-pin IDC cable

•1 x Bag of mounting screws

• 1 x Installation Guide *actual product may vary from photos

System Requirements

•Computer chassis with available 3.5in front bay

•Computer system with available internal 9-pin USB header

•Windows 2000/ XP(32/64-bit)/ Server 2003 (32/64-bit)/ Vista (32/64- bit)/ 7 / 8 (32/64-bit)/ Server 2008 R2, Linux kernel 2.4 or later

Card Slot 1	Micro SD/SDHC/SDXC
Card Slot 2
	Memory Stick Micro (M2™)
Card Slot 3	xD-Picture card™
Card Slot 4	SD/SDHC/SDXC/SM, MMC/RS-MMC/
	HS-MMC/MMCmobile/MMCplus/
	MMCmicro/HC-MMC
Card Slot 5	CompactFlash™ type I/II
Card Slot 6	MemoryStick™ (MS/MS Duo/HS-MS/
	MS PRO/MS PRO Duo/MS PRO-HG Duo/
	MS-ROM)

Installation

WARNING! Computer parts can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti- static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds.

1.Turn your computer off and any peripherals connected to the computer (i.e. Printers, external hard drives, etc.). Unplug the power cable from the rear of the power supply on the back of the computer and disconnect all peripheral devices.

2.Remove the cover from the computer case. Refer to documentation for your computer system for details.

3.Remove the cover for a front panel 3.5in bay. Refer to documentation for your computer system for details.

4.Slide the internal card reader into the 3.5in bay from the outside. Once the mounting holes along the sides of the card reader line up with the mounting holes for the 3.5in bay, fasten the card reader in place. Refer to documentation for your computer system for details.

5.Connect the USB cable from the rear of the card reader to an available 9-pin USB header on the motherboard. The connector is keyed to help prevent incorrect installation. See system or motherboard documentation for specific details.

6.Place the cover back onto the computer case.

7.Insert the power cable into the socket on the power supply and reconnect all other connectors removed in Step 1.

8.No driver installation is required, as the operating system should detect and install it automatically. Once installed, memory cards may be inserted into the reader and used (only one card at a time supported).

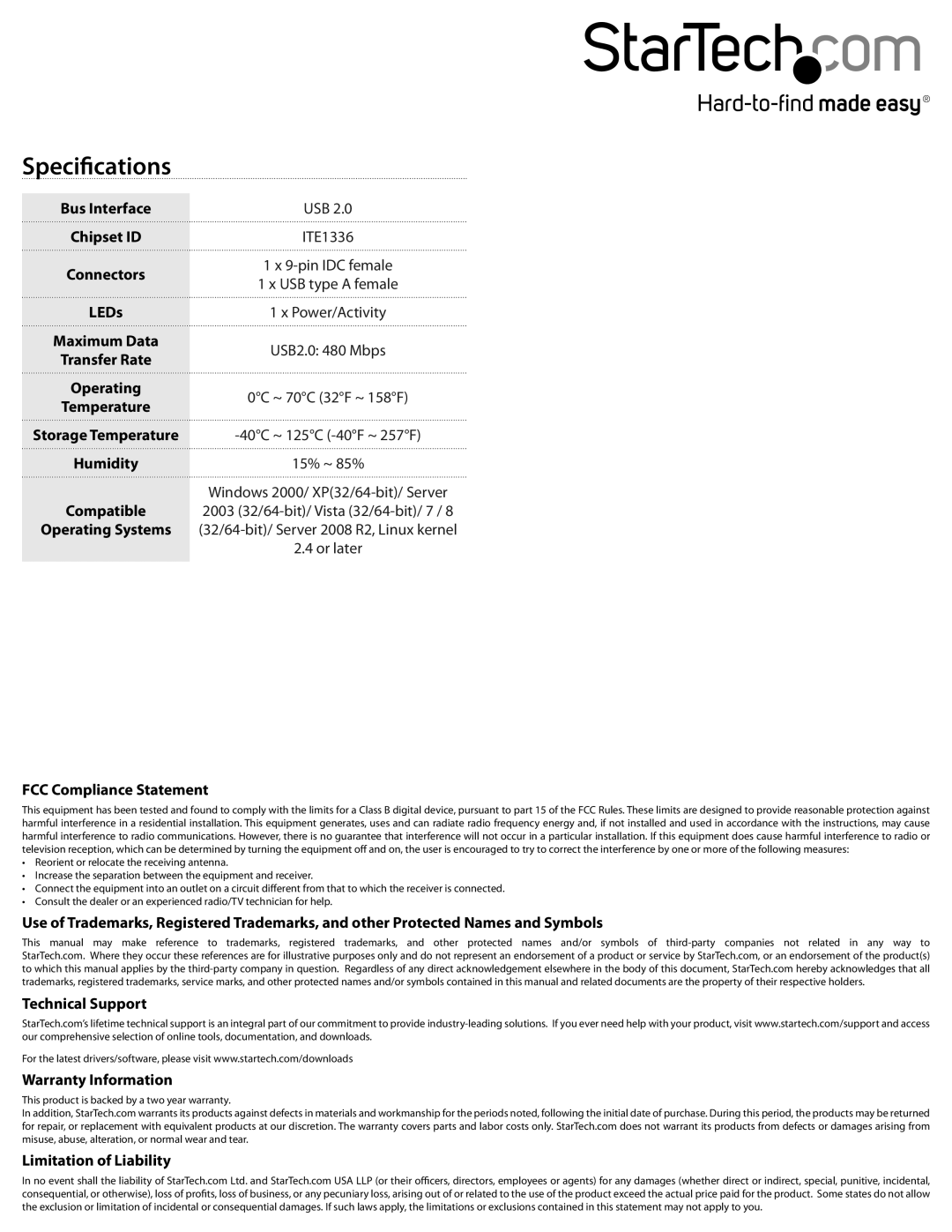

For the most up-to-date information, please visit: www.startech.com

Manual Revision: 08/07/2012
