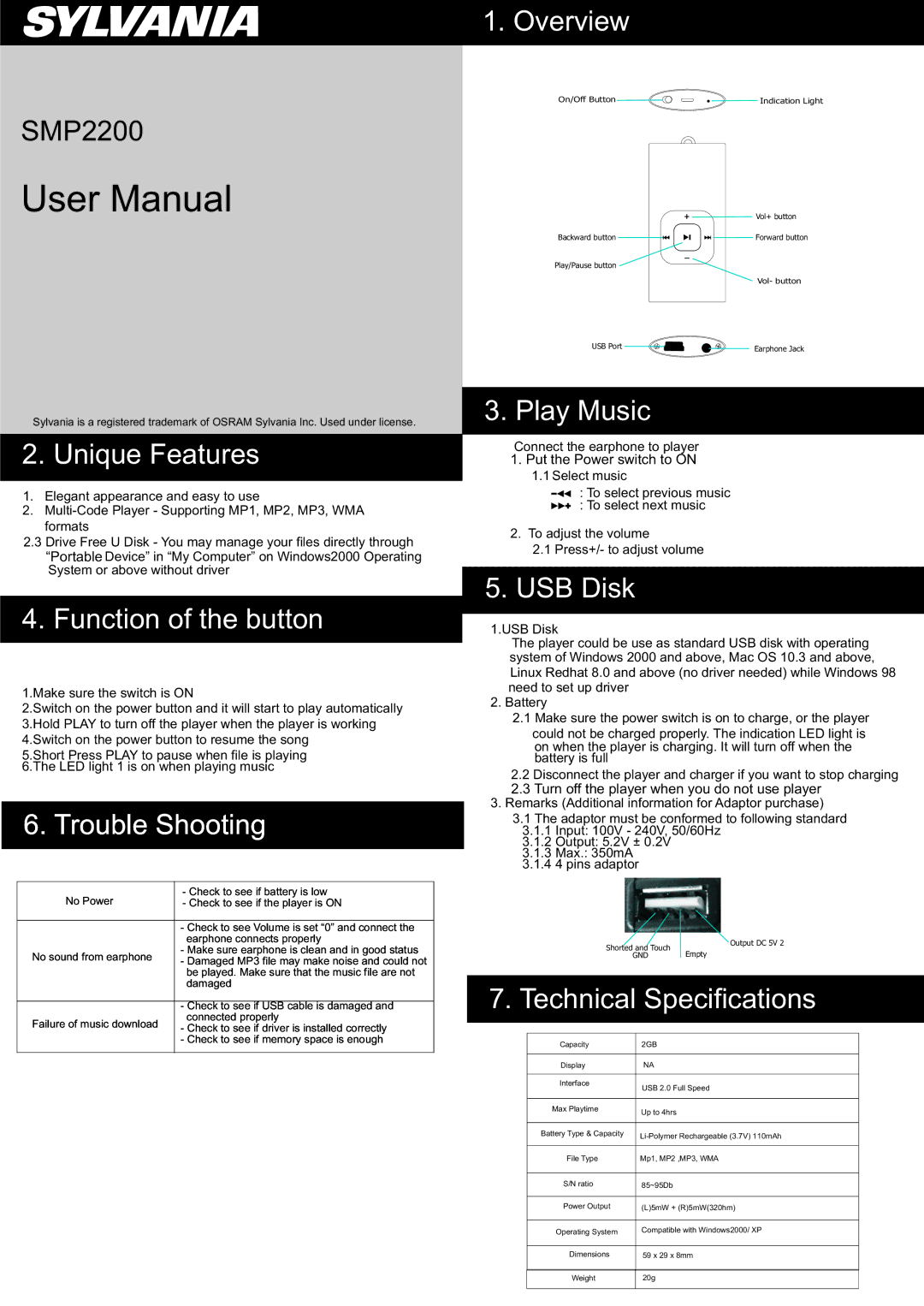

SMP2200

User Manual

Sylvania is a registered trademark of OSRAM Sylvania Inc. Used under license.

2. Unique Features

1.Elegant appearance and easy to use

2.Multi-Code Player - Supporting MP1, MP2, MP3, WMA formats

2.3Drive Free U Disk - You may manage your files directly through “Portable Device” in “My Computer” on Windows2000 Operating System or above without driver

4. Function of the button

1.Make sure the switch is ON

2.Switch on the power button and it will start to play automatically 3.Hold PLAY to turn off the player when the player is working 4.Switch on the power button to resume the song

5.Short Press PLAY to pause when file is playing 6.The LED light 1 is on when playing music

6. Trouble Shooting

1. Overview

On/Off Button Indication Light



Vol+ button

Backward button

Forward button

Play/Pause button





Vol- button

USB Port

Earphone Jack



3. Play Music

Connect the earphone to player

1.Put the Power switch to ON

1.1Select music

: To select previous music

: To select next music

2.To adjust the volume

2.1Press+/- to adjust volume

5.USB Disk

1.USB Disk

The player could be use as standard USB disk with operating system of Windows 2000 and above, Mac OS 10.3 and above, Linux Redhat 8.0 and above (no driver needed) while Windows 98 need to set up driver

2.Battery

2.1Make sure the power switch is on to charge, or the player

could not be charged properly. The indication LED light is on when the player is charging. It will turn off when the battery is full

2.2Disconnect the player and charger if you want to stop charging

2.3Turn off the player when you do not use player

3.Remarks (Additional information for Adaptor purchase)

3.1The adaptor must be conformed to following standard

3.1.1Input: 100V - 240V, 50/60Hz

3.1.2Output: 5.2V 0.2V

3.1.3Max.: 350mA

3.1.44 pins adaptor

No Power

- Check to see if battery is low

- Check to see if the player is ON







- Check to see Volume is set “0” and connect the



earphone connects properly



- Make sure earphone is clean and in good status

Shorted and Touch

Output DC 5V 2

No sound from earphone

- Damaged MP3 file may make noise and could not



be played. Make sure that the music file are not



damaged







- Check to see if USB cable is damaged and

Failure of music download

connected properly

- Check to see if driver is installed correctly



- Check to see if memory space is enough

GNDEmpty

7. Technical Specifications

Capacity

2GB





Display

NA





Interface

USB 2.0 Full Speed







Max Playtime

Up to 4hrs







Battery Type & Capacity

Li-Polymer Rechargeable (3.7V) 110mAh





File Type

Mp1, MP2 ,MP3, WMA





S/N ratio

85~95Db





Power Output

(L)5mW + (R)5mW(320hm)





Operating System

Compatible with Windows2000/ XP





Dimensions

59 x 29 x 8mm





Weight

20g
