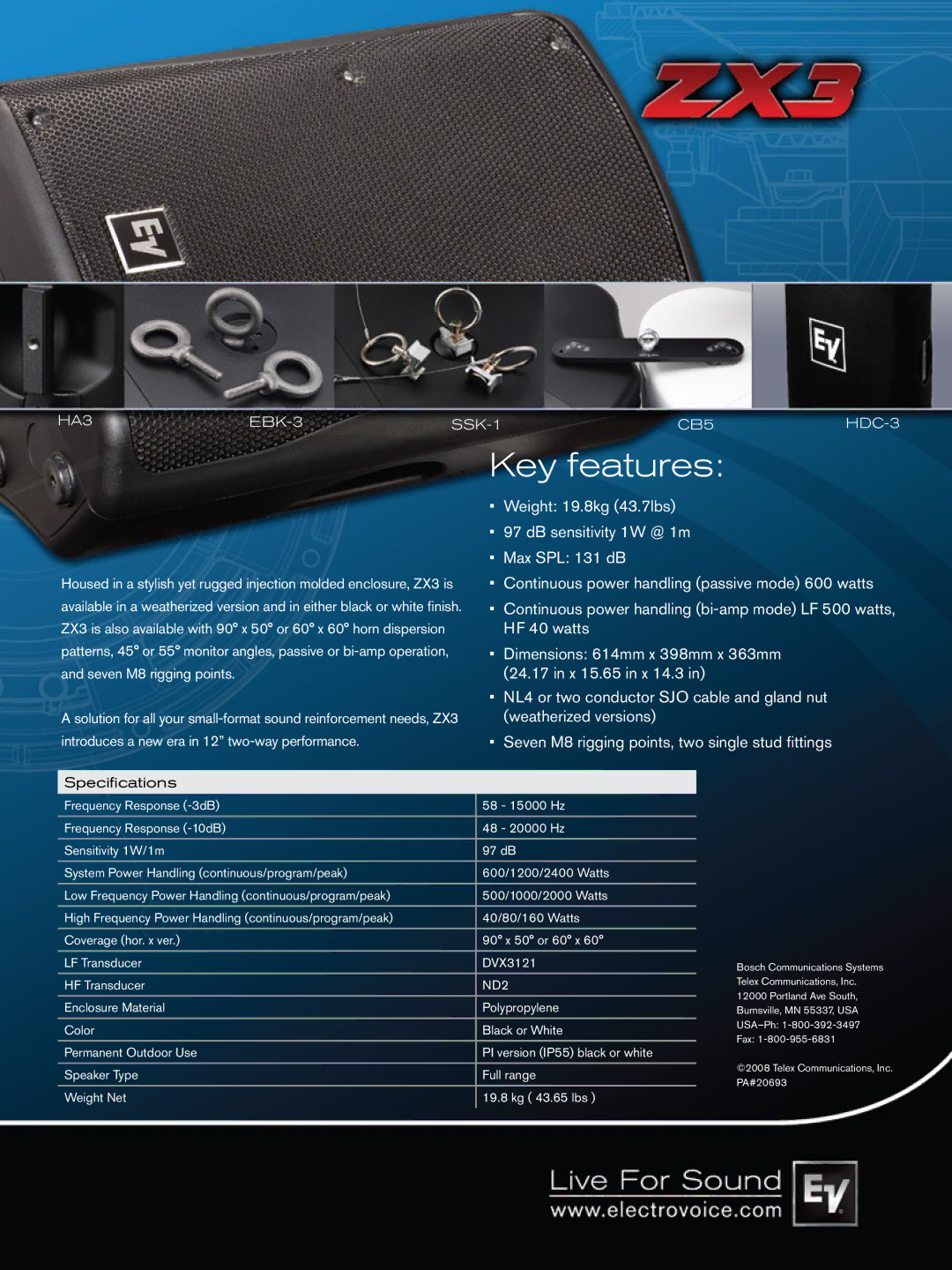

HA3

EBK-3

SSK-1

CB5

HDC-3

Housed in a stylish yet rugged injection molded enclosure, ZX3 is available in a weatherized version and in either black or white finish. ZX3 is also available with 90° x 50° or 60° x 60° horn dispersion patterns, 45° or 55° monitor angles, passive or bi-amp operation, and seven M8 rigging points.

A solution for all your small-format sound reinforcement needs, ZX3 introduces a new era in 12” two-way performance.

Specifications

Key features:

Weight: 19.8kg (43.7lbs)

97 dB sensitivity 1W @ 1m

Max SPL: 131 dB

Continuous power handling (passive mode) 600 watts

Continuous power handling (bi-amp mode) LF 500 watts,

HF 40 watts

Dimensions: 614mm x 398mm x 363mm

(24.17 in x 15.65 in x 14.3 in)

NL4 or two conductor SJO cable and gland nut

(weatherized versions)

Seven M8 rigging points, two single stud fittings

Frequency Response (-3dB)

58 - 15000 Hz





Frequency Response (-10dB)

48 - 20000 Hz





Sensitivity 1W/1m

97 dB

System Power Handling (continuous/program/peak)

600/1200/2400 Watts





Low Frequency Power Handling (continuous/program/peak)

500/1000/2000 Watts





High Frequency Power Handling (continuous/program/peak)

40/80/160 Watts

Coverage (hor. x ver.)

90° x 50° or 60° x 60°





LF Transducer

DVX3121





HF Transducer

ND2

Enclosure Material

Polypropylene





Color

Black or White





Permanent Outdoor Use

PI version (IP55) black or white

Speaker Type

Full range





Weight Net

19.8 kg ( 43.65 lbs )





Bosch Communications Systems

Telex Communications, Inc.

12000 Portland Ave South,

Burnsville, MN 55337, USA

USA–Ph: 1-800-392-3497

Fax: 1-800-955-6831

©2008 Telex Communications, Inc. PA#20693
