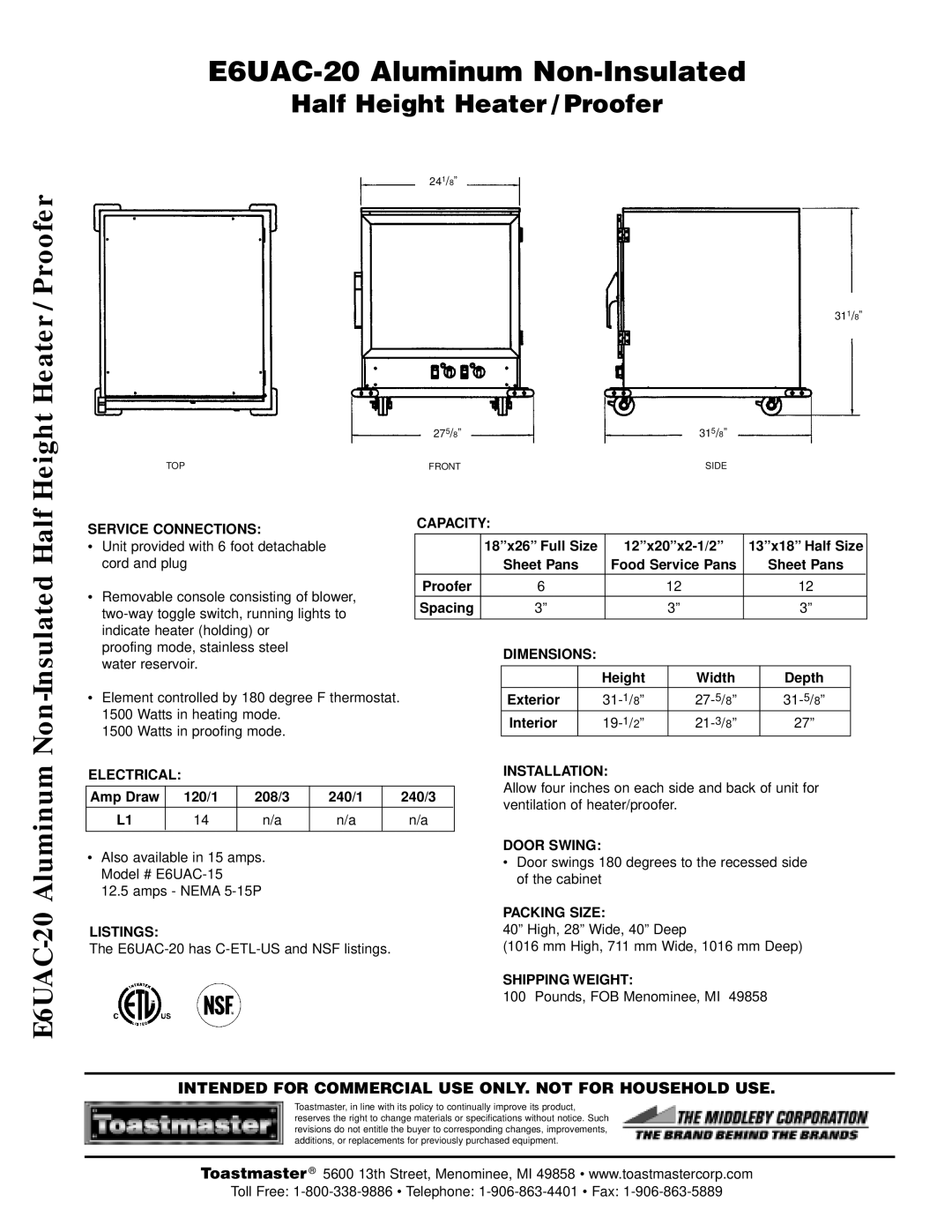

Height Heater / Proofer

E6UAC-20 Aluminum Non-Insulated

Half Height Heater / Proofer

241/8”

311/8”

275/8”315/8”

TOP FRONT SIDE

Non-Insulated Half

SERVICE CONNECTIONS:

•Unit provided with 6 foot detachable cord and plug

•Removable console consisting of blower, two-way toggle switch, running lights to indicate heater (holding) or

proofing mode, stainless steel water reservoir.

•Element controlled by 180 degree F thermostat. 1500 Watts in heating mode.

1500 Watts in proofing mode.

CAPACITY:

	18”x26” Full Size			12”x20”x2-1/2”			13”x18” Half Size
		Sheet Pans		Food Service Pans				Sheet Pans
Proofer	6				12		12
Spacing		3”			3”			3”
		DIMENSIONS:
			Height			Width		Depth
		Exterior	31-1/8”			27-5/8”		31-5/8”
		Interior	19-1/2”			21-3/8”		27”

E6UAC-20 Aluminum

ELECTRICAL:

Amp Draw	120/1	208/3	240/1	240/3
L1	14	n/a	n/a	n/a

•Also available in 15 amps. Model # E6UAC-15

12.5 amps - NEMA 5-15P

LISTINGS:

The E6UAC-20 has C-ETL-US and NSF listings.

INSTALLATION:

Allow four inches on each side and back of unit for ventilation of heater/proofer.

DOOR SWING:

•Door swings 180 degrees to the recessed side of the cabinet

PACKING SIZE:

40” High, 28” Wide, 40” Deep

(1016 mm High, 711 mm Wide, 1016 mm Deep)

SHIPPING WEIGHT:

100 Pounds, FOB Menominee, MI 49858

INTENDED FOR COMMERCIAL USE ONLY. NOT FOR HOUSEHOLD USE.

Toastmaster, in line with its policy to continually improve its product, reserves the right to change materials or specifications without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.

Toastmaster ® 5600 13th Street, Menominee, MI 49858 • www.toastmastercorp.com

Toll Free: 1-800-338-9886 • Telephone: 1-906-863-4401 • Fax: 1-906-863-5889
