Foodservice Equipment

JobItem#

Conveyor Toaster

TC17D3674, TC17D3663, TC17D3666, TC17D3666UK

Models shown may ship UPS

Standard Features:

10” wide conveyor belt

Automatic cool-down feature

Energy-saving standby mode

Stainless steel exterior construction

Air-cooled case construction

Single-piece stainless steel crumb tray

Damage resistant calrod heating elements

All models toast bread, buns and bagels

Convection air dries product faster

Large, easy-to-operate dial controls

Separate upper and lower heat

Settings and conveyor belt speed

High volume (400 slices per hour)

Factory installed NEMA cord and plug

Featuring a 3” loading height to

accommodate a variety of productTC17D3674 thicknesses

Conveyor Toaster - Models: TC17D3674,

Application:

TC17D3 Series Conveyor Toasters are designed to uniformly toast breads, buns, bagels, and muffins in large quantities, using continuous feed methods.

General Information:

Product Height:

Extra-Tall 3” (76mm) high opening.

Conveyor Type:

TC17D3 - Conveyor extends to the end of the toasting chamber.

Product Loading:

TC17D3 is equipped with a loading rack that is angled to feed the product into the toaster continuously.

Product Delivery:

TC17D3’s are capable of rear- exit pass through operation. They are shipped as front-return models, but can easily be converted to rear-exit operation. by following the supplied instructions.

Safety:

Unique air flow design keeps case, top, and sides cool. The unit is equipped with an auto cool down feature which allows the fan to cool the outer skin when the unit is turned off.

Construction:

Steel construction with a stainless steel finish is used for durability. A stainless steel full-length, slide out crumb tray for easy clean-up. A fiberglass return tray is included.

Electrical:

Available in 120V, 208V or 240V, 1-phase only. Total rated input is

1.97KW at 120V; 2.62 KW at 208V and 240V; and 2.41 KW for CE toasters. A factory installed 6 foot (1.8m) cord is included.

Heating:

When control is set to “ON”, top and bottom tubular elements will turn on to toast both sides of bread. Lightness and darkness of the product is achieved by adjusting the top and bottom heat controls. Standby position allows for energy savings during non-peak periods.

Controls:

Rotary 3-position dial selects ON/OFF/ STANDBY positions.

A conveyor speed dial controls the belt speed. Heat dials control the upper and lower heating elements.

Accessories:

Fiberglass return tray.

Angled loading rack. (Supplied with TC17D3)

Horizontal loading rack (optional)

Stainless steel tray (optional) fits models as an exit tray.

Warranty:

Warranty includes one year parts and labor, on-site service. (USA only) Call factory for warranty authorization.

TC17D3663, TC17D3666, TC17D3666UK

Toastmaster® 5600 13th Street, Menominee, MI 49858 • www.toastmastercorp.com Toll Free: 1-800-338-9886 • Telephone: 1-906-863-4401 • Fax: 1-906-863-5889

Page 1

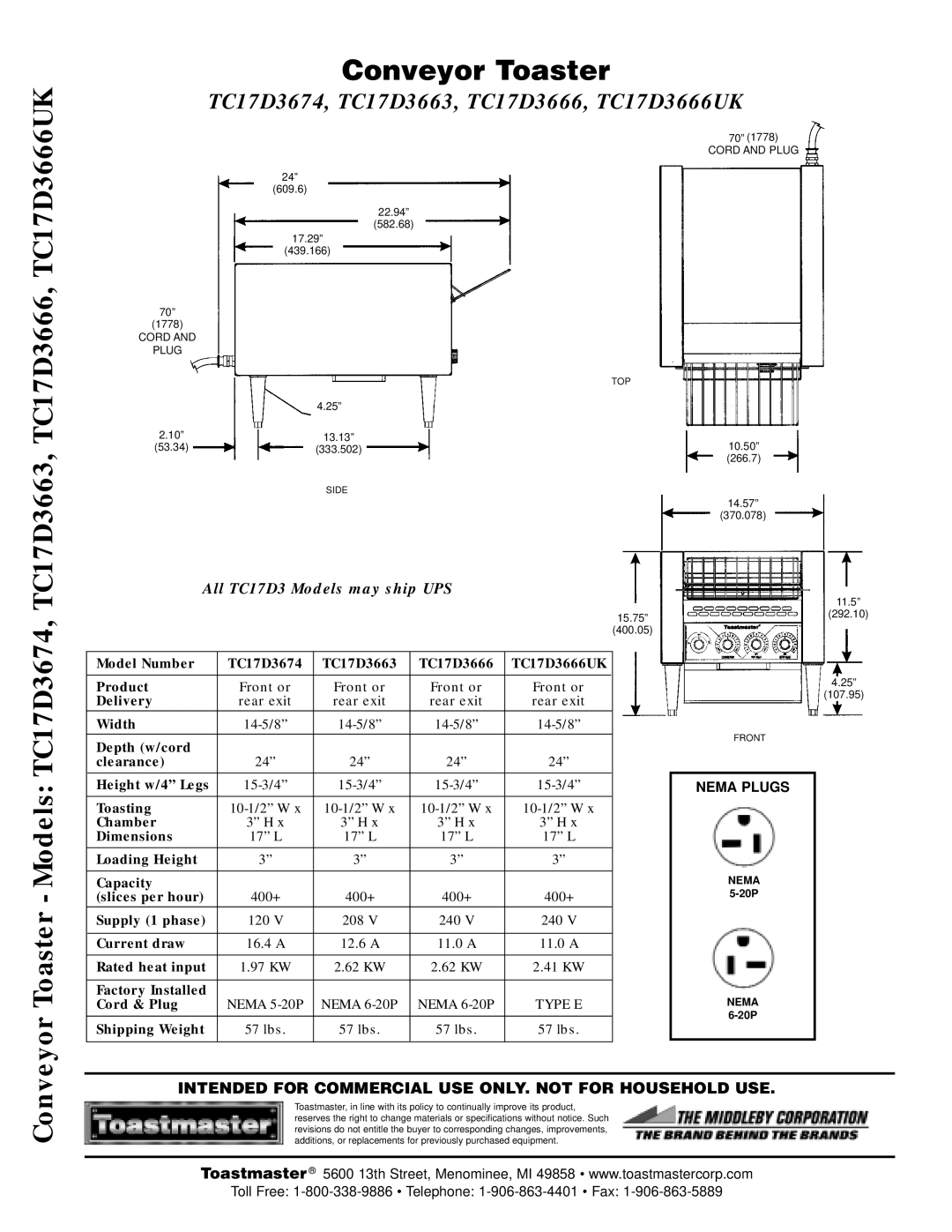

Image 1
