Toshiba manual Satellite A215-S7472, System Characteristics1, Accessories

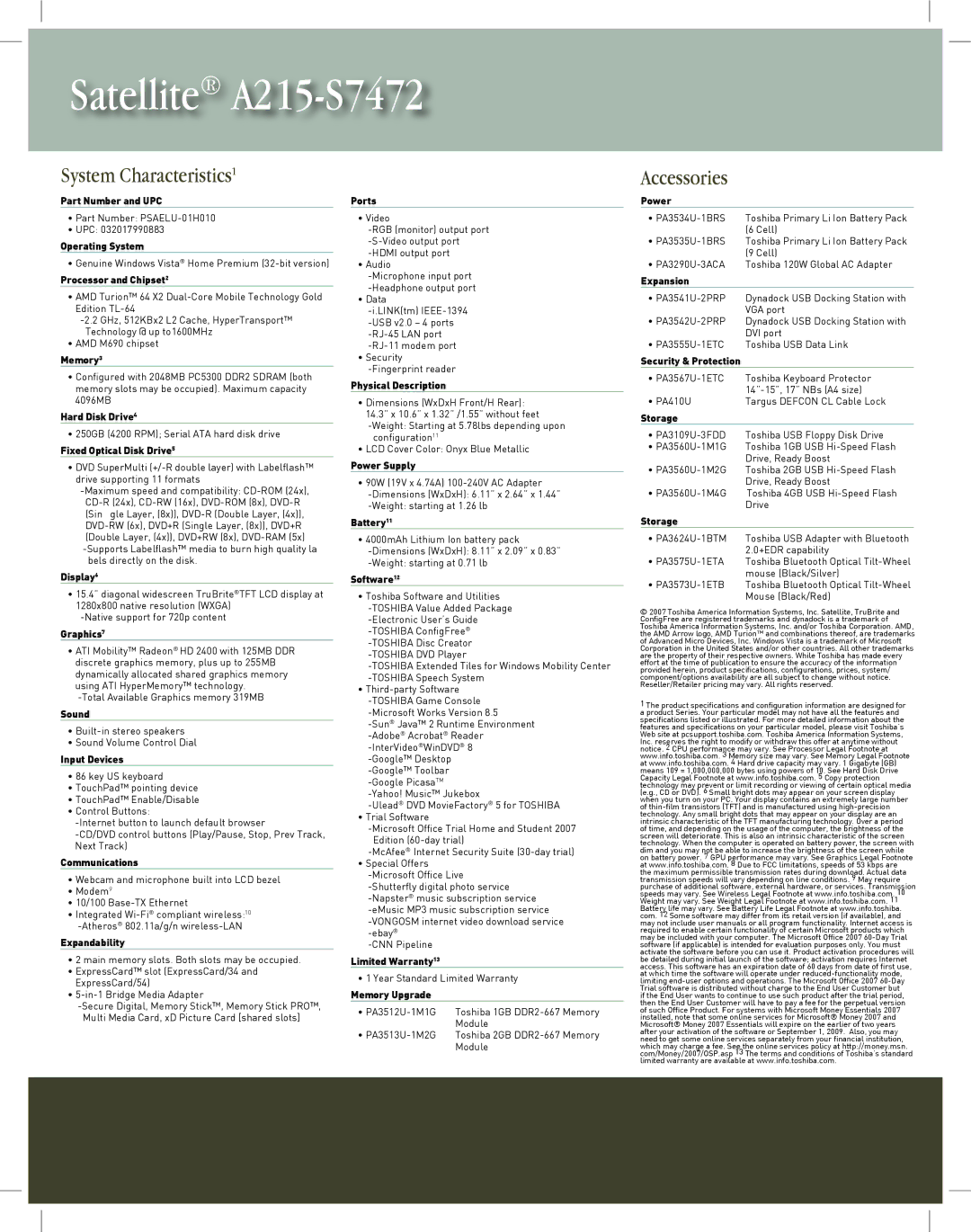

Satellite® A215-S7472

System Characteristics1

Part Number and UPC

•Part Number: PSAELU-01H010

•UPC: 032017990883

Operating System

•Genuine Windows Vista® Home Premium (32-bit version)

Processor and Chipset2

•AMD Turion™ 64 X2 Dual-Core Mobile Technology Gold Edition TL-64

-2.2 GHz, 512KBx2 L2 Cache, HyperTransport™ Technology @ up to1600MHz

•AMD M690 chipset

Memory3

•Configured with 2048MB PC5300 DDR2 SDRAM (both memory slots may be occupied). Maximum capacity 4096MB

Hard Disk Drive4

•250GB (4200 RPM); Serial ATA hard disk drive

Fixed Optical Disk Drive5

•DVD SuperMulti (+/-R double layer) with Labelflash™ drive supporting 11 formats

-Maximum speed and compatibility: CD-ROM (24x), CD-R (24x), CD-RW (16x), DVD-ROM (8x), DVD-R (Sin gle Layer, (8x)), DVD-R (Double Layer, (4x)), DVD-RW (6x), DVD+R (Single Layer, (8x)), DVD+R (Double Layer, (4x)), DVD+RW (8x), DVD-RAM (5x) -Supports Labelflash™ media to burn high quality la bels directly on the disk.

Display6

•15.4” diagonal widescreen TruBrite®TFT LCD display at 1280x800 native resolution (WXGA)

-Native support for 720p content

Graphics7

•ATI Mobility™ Radeon® HD 2400 with 125MB DDR discrete graphics memory, plus up to 255MB dynamically allocated shared graphics memory using ATI HyperMemory™ technology.

-Total Available Graphics memory 319MB

Sound

•Built-in stereo speakers

•Sound Volume Control Dial

Input Devices

•86 key US keyboard

•TouchPad™ pointing device

•TouchPad™ Enable/Disable

•Control Buttons:

-Internet button to launch default browser

-CD/DVD control buttons (Play/Pause, Stop, Prev Track, Next Track)

Communications

•Webcam and microphone built into LCD bezel

•Modem9

•10/100 Base-TX Ethernet

•Integrated Wi-Fi®compliant wireless:10

-Atheros®802.11a/g/n wireless-LAN

Expandability

•2 main memory slots. Both slots may be occupied.

•ExpressCard™ slot (ExpressCard/34 and ExpressCard/54)

•5-in-1 Bridge Media Adapter

-Secure Digital, Memory Stick™, Memory Stick PRO™, Multi Media Card, xD Picture Card [shared slots]

Ports

• Video

-RGB (monitor) output port -S-Video output port -HDMI output port

• Audio

-Microphone input port -Headphone output port

• Data

-i.LINK(tm) IEEE-1394 -USB v2.0 – 4 ports -RJ-45 LAN port -RJ-11 modem port

• Security -Fingerprint reader

Physical Description

•Dimensions (WxDxH Front/H Rear):

14.3” x 10.6” x 1.32” /1.55” without feet

-Weight: Starting at 5.78lbs depending upon configuration11

•LCD Cover Color: Onyx Blue Metallic

Power Supply

• 90W (19V x 4.74A) 100-240V AC Adapter -Dimensions (WxDxH): 6.11” x 2.64” x 1.44” -Weight: starting at 1.26 lb

Battery11

• 4000mAh Lithium Ion battery pack -Dimensions (WxDxH): 8.11” x 2.09” x 0.83” -Weight: starting at 0.71 lb

Software12

• Toshiba Software and Utilities -TOSHIBA Value Added Package -Electronic User’s Guide -TOSHIBA ConfigFree® -TOSHIBA Disc Creator -TOSHIBA DVD Player

-TOSHIBA Extended Tiles for Windows Mobility Center -TOSHIBA Speech System

• Third-party Software -TOSHIBA Game Console -Microsoft Works Version 8.5

-Sun®Java™ 2 Runtime Environment -Adobe®Acrobat® Reader -InterVideo®WinDVD®8

-Google™ Desktop

-Google™ Toolbar

-Google PicasaTM

-Yahoo! Music™ Jukebox

-Ulead®DVD MovieFactory® 5 for TOSHIBA

• Trial Software

-Microsoft Office Trial Home and Student 2007

Edition (60-day trial)

-McAfee®Internet Security Suite (30-day trial)

• Special Offers -Microsoft Office Live

-Shutterfly digital photo service

-Napster®music subscription service

-eMusic MP3 music subscription service

-VONGOSM internet video download service -ebay®

-CNN Pipeline

Limited Warranty13

•1 Year Standard Limited Warranty

Memory Upgrade

•PA3512U-1M1G Toshiba 1GB DDR2-667 Memory

Module

•PA3513U-1M2G Toshiba 2GB DDR2-667 Memory

Module

Accessories

Power

• PA3534U-1BRS	Toshiba Primary Li Ion Battery Pack
	(6 Cell)
• PA3535U-1BRS	Toshiba Primary Li Ion Battery Pack
	(9 Cell)
• PA3290U-3ACA	Toshiba 120W Global AC Adapter
Expansion
• PA3541U-2PRP	Dynadock USB Docking Station with
	VGA port
• PA3542U-2PRP	Dynadock USB Docking Station with
	DVI port
• PA3555U-1ETC	Toshiba USB Data Link
Security & Protection
• PA3567U-1ETC	Toshiba Keyboard Protector
	14”-15”, 17” NBs (A4 size)
• PA410U	Targus DEFCON CL Cable Lock
Storage
• PA3109U-3FDD	Toshiba USB Floppy Disk Drive

•PA3560U-1M1G Toshiba 1GB USB Hi-Speed Flash

Drive, Ready Boost

•PA3560U-1M2G Toshiba 2GB USB Hi-Speed Flash

Drive, Ready Boost

•PA3560U-1M4G Toshiba 4GB USB Hi-Speed Flash Drive

Storage

• PA3624U-1BTM	Toshiba USB Adapter with Bluetooth
	2.0+EDR capability
• PA3575U-1ETA	Toshiba Bluetooth Optical Tilt-Wheel
	mouse (Black/Silver)
• PA3573U-1ETB	Toshiba Bluetooth Optical Tilt-Wheel
	Mouse (Black/Red)

© 2007 Toshiba America Information Systems, Inc. Satellite, TruBrite and ConfigFree are registered trademarks and dynadock is a trademark of Toshiba America Information Systems, Inc. and/or Toshiba Corporation. AMD, the AMD Arrow logo, AMD Turion™ and combinations thereof, are trademarks of Advanced Micro Devices, Inc. Windows Vista is a trademark of Microsoft Corporation in the United States and/or other countries. All other trademarks are the property of their respective owners. While Toshiba has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, prices, system/ component/options availability are all subject to change without notice. Reseller/Retailer pricing may vary. All rights reserved.

1The product specifications and configuration information are designed for a product Series. Your particular model may not have all the features and specifications listed or illustrated. For more detailed information about the features and specifications on your particular model, please visit Toshiba’s

Web site at pcsupport.toshiba.com. Toshiba America Information Systems, Inc. reserves the right to modify or withdraw this offer at anytime without notice. 2 CPU performance may vary. See Processor Legal Footnote at www.info.toshiba.com. 3 Memory size may vary. See Memory Legal Footnote at www.info.toshiba.com. 4 Hard drive capacity may vary. 1 Gigabyte (GB) means 109 = 1,000,000,000 bytes using powers of 10. See Hard Disk Drive

Capacity Legal Footnote at www.info.toshiba.com. 5 Copy protection technology may prevent or limit recording or viewing of certain optical media (e.g., CD or DVD). 6 Small bright dots may appear on your screen display when you turn on your PC. Your display contains an extremely large number of thin-film transistors (TFT) and is manufactured using high-precision technology. Any small bright dots that may appear on your display are an intrinsic characteristic of the TFT manufacturing technology. Over a period of time, and depending on the usage of the computer, the brightness of the screen will deteriorate. This is also an intrinsic characteristic of the screen technology. When the computer is operated on battery power, the screen with dim and you may not be able to increase the brightness of the screen while on battery power. 7 GPU performance may vary. See Graphics Legal Footnote at www.info.toshiba.com. 8 Due to FCC limitations, speeds of 53 kbps are the maximum permissible transmission rates during download. Actual data transmission speeds will vary depending on line conditions. 9 May require purchase of additional software, external hardware, or services. Transmission speeds may vary. See Wireless Legal Footnote at www.info.toshiba.com. 10 Weight may vary. See Weight Legal Footnote at www.info.toshiba.com. 11 Battery life may vary. See Battery Life Legal Footnote at www.info.toshiba. com. 12 Some software may differ from its retail version (if available), and may not include user manuals or all program functionality. Internet access is required to enable certain functionality of certain Microsoft products which may be included with your computer. The Microsoft Office 2007 60-Day Trial software (if applicable) is intended for evaluation purposes only. You must activate the software before you can use it. Product activation procedures will be detailed during initial launch of the software; activation requires Internet access. This software has an expiration date of 60 days from date of first use, at which time the software will operate under reduced-functionality mode, limiting end-user options and operations. The Microsoft Office 2007 60-Day

Trial software is distributed without charge to the End User Customer but if the End User wants to continue to use such product after the trial period, then the End User Customer will have to pay a fee for the perpetual version of such Office Product. For systems with Microsoft Money Essentials 2007 installed, note that some online services for Microsoft® Money 2007 and Microsoft® Money 2007 Essentials will expire on the earlier of two years after your activation of the software or September 1, 2009. Also, you may need to get some online services separately from your financial institution, which may charge a fee. See the online services policy at http://money.msn. com/Money/2007/OSP.asp 13 The terms and conditions of Toshiba’s standard limited warranty are available at www.info.toshiba.com.
