Specifications

B-852 Advance

Model	B-852 Advanced
Technology	Thermal transfer / Direct thermal
Printhead	Flat type
Resolution	12 dots/mm (305dpi)
Print width	Maximum 216.8mm
Print length	Maximum 819mm
Print speed	Up to 101.4mm/s
Interfaces	Bidirectional parallel port, USB 2.0, LAN (100BASE),
	serial port, wireless LAN
Barcodes	UPC/EAN/JAN,Code 39,Code 93,Code 128,EAN 128,
	NW7,MSI,Industrial 2 of 5,ITF,Postnet,RM4SCC,
	KIX-code,RSS14,Customer Bar Code
2D codes	Data Matrix, PDF 417, Maxicode,
	QR code, Micro PDF 417, CP Code
Fonts	Bitmap font (21 fonts), Outline font (4 types),
	Price font (3 types)
Optional	Cutter module, wireless LAN module, serial interface
	board, expansion I/O board, RTC (real time clock)

Customers’ Benefits

The B-852 Advanced wide web printers have been designed to benefit the end user with:

•New and improved connectivity features

•Increased expandability options

•Higher processing speed to improve data processing of large files

•Easy maintenance and low cost of ownership

•Capability to replace legacy systems and competitors’ products.

TOSHIBA TEC EUROPE RETAIL INFORMATION SYSTEMS

Dimensions	385(W) x 180(D) x 243(H)mm
Weight	15.6 kg (without media and ribbon)

* Option

Your Toshiba dealer:	All company and/or
	product names are
	trademarks and/or
	registered trademarks
	of their respective
	owners. All features and
	specifications described
	on this brochure are
	subject to change
	without notice.

Austria

Handelskai 388/Top 621 Donau Business Center AT - 1020 WIEN

T. +49 (0)2151 838 01 F. +49 (0)2151 838 480 info@toshibatec-eu.de

Belgium & Headquarters

Rue de la Célidée, 33 - Celideestraat 33BE - 1080 BRUXELLES/BRUSSEL T. +32 (0)2 410 21 00

F. +32 (0)2 410 68 69

F. HQ: +32 (0)2 410 79 87 info@toshibatec-eu.be

France

23/25 Avenue Jeanne d’Arc FR - 94117 ARCUEIL Cedex T. +33 (0)1 58 07 20 00 F. +33 (0)1 58 07 20 01 info@toshibatec-eu.fr

Germany

Europark Fichtenhain B15 DE - 47807 KREFELD

T. +49 (0)2151 838 01 F. +49 (0)2151 838 480 info@toshibatec-eu.de

Ireland

Unit 7, Crumlin Business Centre Stannaway Drive

IE - DUBLIN 12

T. +353 (0)1 465 22 20

F. +353 (0)1 465 22 29 info@toshibatec-eu.ie

Portugal

Taguspark - Parque de Ciência e Tecnologia

Nucleo Central - Sala 268

PT - 2780-920 OEIRAS (Lisboa) T. +351 21 422 20 64

F. +351 21 424 02 11 comercial@toshibatec-eu.pt

Spain

C/Doctor Esquerdo 207 ES - 28007 MADRID T. +34 91 502 15 90 F. +34 91 501 81 00 retail@toshibatec-eu.es

Campus 300, Spring Way

Maylands Avenue, Hemel Hempstead

GB - HERTFORDSHIRE, HP2 7GG T. +44 (0)870 890 7200

F. +44 (0)870 890 7350 marketing@toshibatec-eu.co.uk

GROUP Companies

TOSHIBA TEC NETHERLANDS RETAIL INFORMATION SYSTEMS B.V. Postbus 2510, NL - 3800 GB AMERSFOORT Softwareweg 3, NL - 3821 BN AMERSFOORT T. +31 (0)33 453 81 00

F. +31 (0)33 455 44 11 info@toshibatec-eu.nl

TEC Polska Sp. z.o.o.

ul. Marynarska 21PL - 02-674

WARSZAWA

T. +48 (0)22 640 48 58 F. +48 (0)22 640 48 53 info@tec.pl

www.toshibatec-eu.co.uk	With powerful networking capabilities, the B-852 Advance wide web
	printer from Toshiba delivers outstanding performance for a wide variety
	of environments and applications. This innovative industrial printer offers
	superior features including extremely fast processing, large internal
	memory, web printer controls and outstanding SNMP networking tools*.
	*Also links to other Toshiba products including the e-studio series, an evolutionary family of
	information devices that fit perfectly within commercial information environments.

H i g h P e r f o r m a n c e , Q u a l i t y I n d u s t r i a l P r i n t e r s

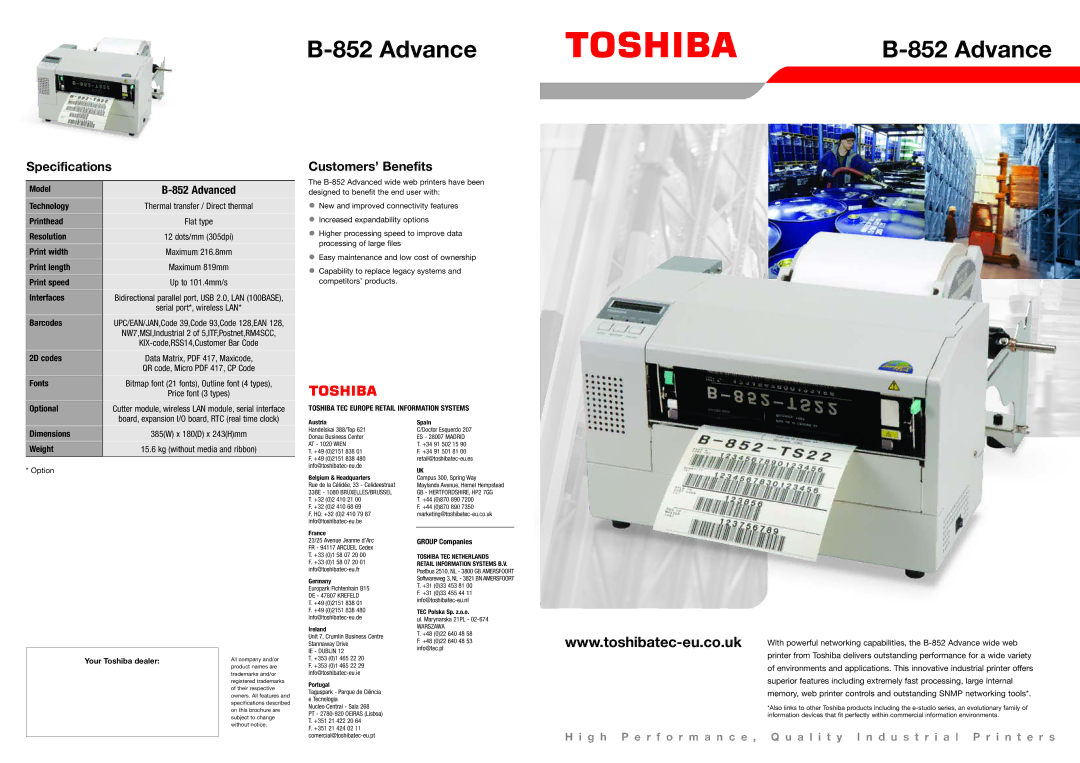

Toshiba B-852 Advance specifications Specifications, Customers’ Benefits

Models: B-852 Advance
