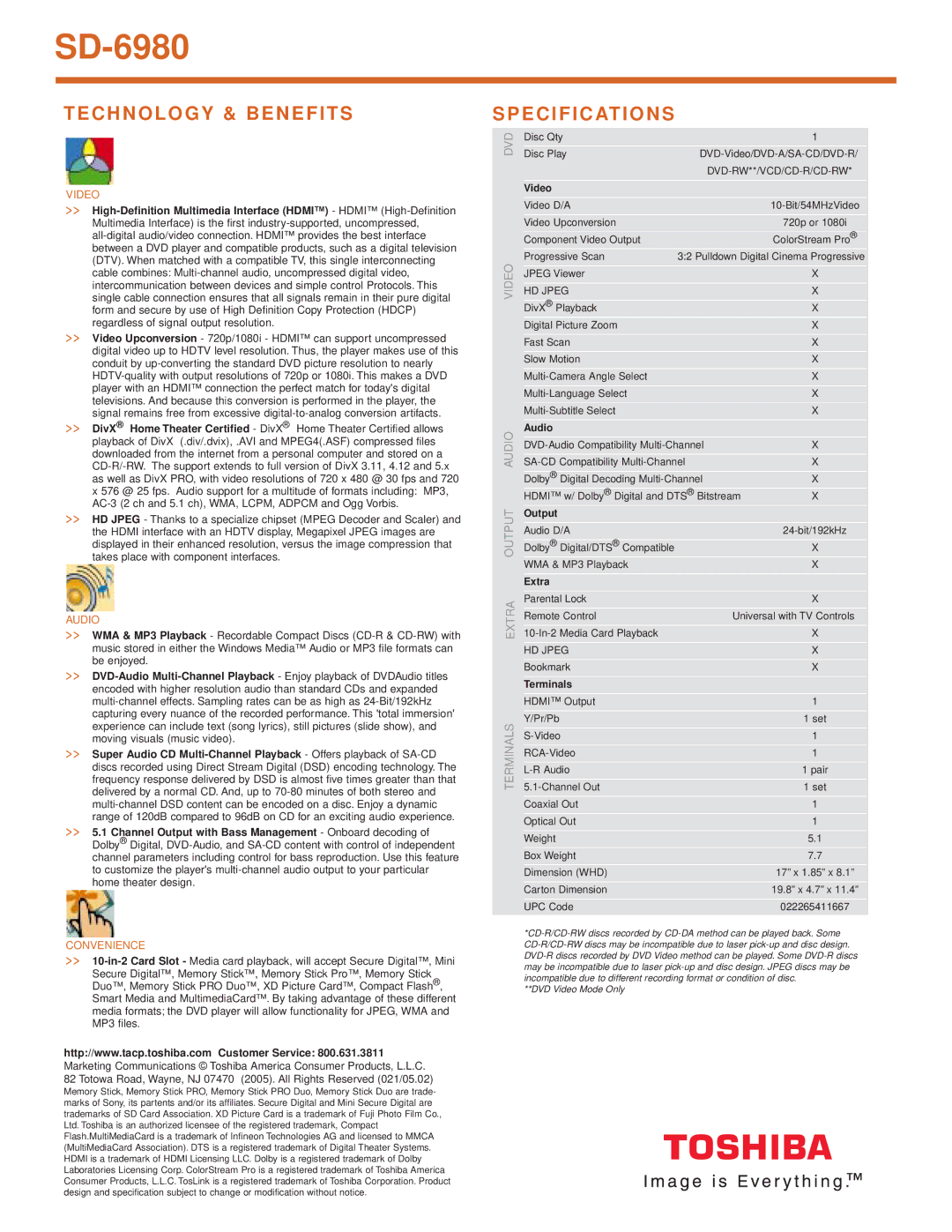

SD-6980

T E C H N O L O G Y & B E N E F I T S

VIDEO

>> High-Definition Multimedia Interface (HDMI™) - HDMI™ (High-Definition Multimedia Interface) is the first industry-supported, uncompressed, all-digital audio/video connection. HDMI™ provides the best interface between a DVD player and compatible products, such as a digital television (DTV). When matched with a compatible TV, this single interconnecting cable combines: Multi-channel audio, uncompressed digital video, intercommunication between devices and simple control Protocols. This single cable connection ensures that all signals remain in their pure digital form and secure by use of High Definition Copy Protection (HDCP) regardless of signal output resolution.

>> Video Upconversion - 720p/1080i - HDMI™ can support uncompressed digital video up to HDTV level resolution. Thus, the player makes use of this conduit by up-converting the standard DVD picture resolution to nearly HDTV-quality with output resolutions of 720p or 1080i. This makes a DVD player with an HDMI™ connection the perfect match for today's digital televisions. And because this conversion is performed in the player, the signal remains free from excessive digital-to-analog conversion artifacts.

>> DivX® Home Theater Certified - DivX® Home Theater Certified allows playback of DivX (.div/.dvix), .AVI and MPEG4(.ASF) compressed files downloaded from the internet from a personal computer and stored on a CD-R/-RW. The support extends to full version of DivX 3.11, 4.12 and 5.x as well as DivX PRO, with video resolutions of 720 x 480 @ 30 fps and 720 x 576 @ 25 fps. Audio support for a multitude of formats including: MP3, AC-3 (2 ch and 5.1 ch), WMA, LCPM, ADPCM and Ogg Vorbis.

>> HD JPEG - Thanks to a specialize chipset (MPEG Decoder and Scaler) and the HDMI interface with an HDTV display, Megapixel JPEG images are displayed in their enhanced resolution, versus the image compression that takes place with component interfaces.

AUDIO

>> WMA & MP3 Playback - Recordable Compact Discs (CD-R & CD-RW) with music stored in either the Windows Media™ Audio or MP3 file formats can be enjoyed.

>> DVD-AudioMulti-Channel Playback - Enjoy playback of DVDAudio titles encoded with higher resolution audio than standard CDs and expanded multi-channel effects. Sampling rates can be as high as 24-Bit/192kHz capturing every nuance of the recorded performance. This 'total immersion' experience can include text (song lyrics), still pictures (slide show), and moving visuals (music video).

>> Super Audio CD Multi-Channel Playback - Offers playback of SA-CD discs recorded using Direct Stream Digital (DSD) encoding technology. The frequency response delivered by DSD is almost five times greater than that delivered by a normal CD. And, up to 70-80 minutes of both stereo and multi-channel DSD content can be encoded on a disc. Enjoy a dynamic range of 120dB compared to 96dB on CD for an exciting audio experience.

>> 5.1 Channel Output with Bass Management - Onboard decoding of Dolby®Digital, DVD-Audio, and SA-CD content with control of independent channel parameters including control for bass reproduction. Use this feature to customize the player's multi-channel audio output to your particular home theater design.

CONVENIENCE

>> 10-in-2 Card Slot - Media card playback, will accept Secure Digital™, Mini Secure Digital™, Memory Stick™, Memory Stick Pro™, Memory Stick

Duo™, Memory Stick PRO Duo™, XD Picture Card™, Compact Flash ®, Smart Media and MultimediaCard™. By taking advantage of these different media formats; the DVD player will allow functionality for JPEG, WMA and MP3 files.

http://www.tacp.toshiba.com Customer Service: 800.631.3811 Marketing Communications © Toshiba America Consumer Products, L.L.C. 82 Totowa Road, Wayne, NJ 07470 (2005). All Rights Reserved (021/05.02)

Memory Stick, Memory Stick PRO, Memory Stick PRO Duo, Memory Stick Duo are trade- marks of Sony, its partents and/or its affiliates. Secure Digital and Mini Secure Digital are trademarks of SD Card Association. XD Picture Card is a trademark of Fuji Photo Film Co., Ltd. Toshiba is an authorized licensee of the registered trademark, Compact Flash.MultiMediaCard is a trademark of Infineon Technologies AG and licensed to MMCA (MultiMediaCard Association). DTS is a registered trademark of Digital Theater Systems. HDMI is a trademark of HDMI Licensing LLC. Dolby is a registered trademark of Dolby Laboratories Licensing Corp. ColorStream Pro is a registered trademark of Toshiba America Consumer Products, L.L.C. TosLink is a registered trademark of Toshiba Corporation. Product design and specification subject to change or modification without notice.

S P E C I F I C AT I O N S

DVD

Disc Qty





1









Disc Play

DVD-Video/DVD-A/SA-CD/DVD-R/







DVD-RW**/VCD/CD-R/CD-RW*



Video









Video D/A





10-Bit/54MHzVideo



Video Upconversion





720p or 1080i



Component Video Output





ColorStream Pro®

VIDEO

Progressive Scan

3:2 Pulldown Digital Cinema Progressive

JPEG Viewer





X



HD JPEG





X



DivX®Playback





X



Digital Picture Zoom





X



Fast Scan





X



Slow Motion





X



Multi-Camera Angle Select





X



Multi-Language Select





X



Multi-Subtitle Select





X

AUDIO

Audio







DVD-Audio Compatibility Multi-Channel



X

SA-CD Compatibility Multi-Channel



X



Dolby®Digital Decoding Multi-Channel



X



HDMI™ w/ Dolby®Digital and DTS®Bitstream

X

OUTPUT

Output







Audio D/A





24-bit/192kHz



Dolby®Digital/DTS®Compatible





X



WMA & MP3 Playback





X



Extra







EXTRA

Parental Lock





X

10-In-2 Media Card Playback





X



Remote Control



Universal with TV Controls



HD JPEG





X



Bookmark





X



Terminals









HDMI™ Output





1

TERMINALS

Y/Pr/Pb





1 set

5.1-Channel Out





1 set



S-Video





1



RCA-Video





1



L-R Audio





1 pair



Coaxial Out





1



Optical Out





1



Weight





5.1



Box Weight





7.7



Dimension (WHD)





17” x 1.85” x 8.1”



Carton Dimension





19.8” x 4.7” x 11.4”



UPC Code





022265411667











*CD-R/CD-RW discs recorded by CD-DA method can be played back. Some CD-R/CD-RW discs may be incompatible due to laser pick-up and disc design. DVD-R discs recorded by DVD Video method can be played. Some DVD-R discs may be incompatible due to laser pick-up and disc design. JPEG discs may be incompatible due to different recording format or condition of disc.

**DVD Video Mode Only

Page 2

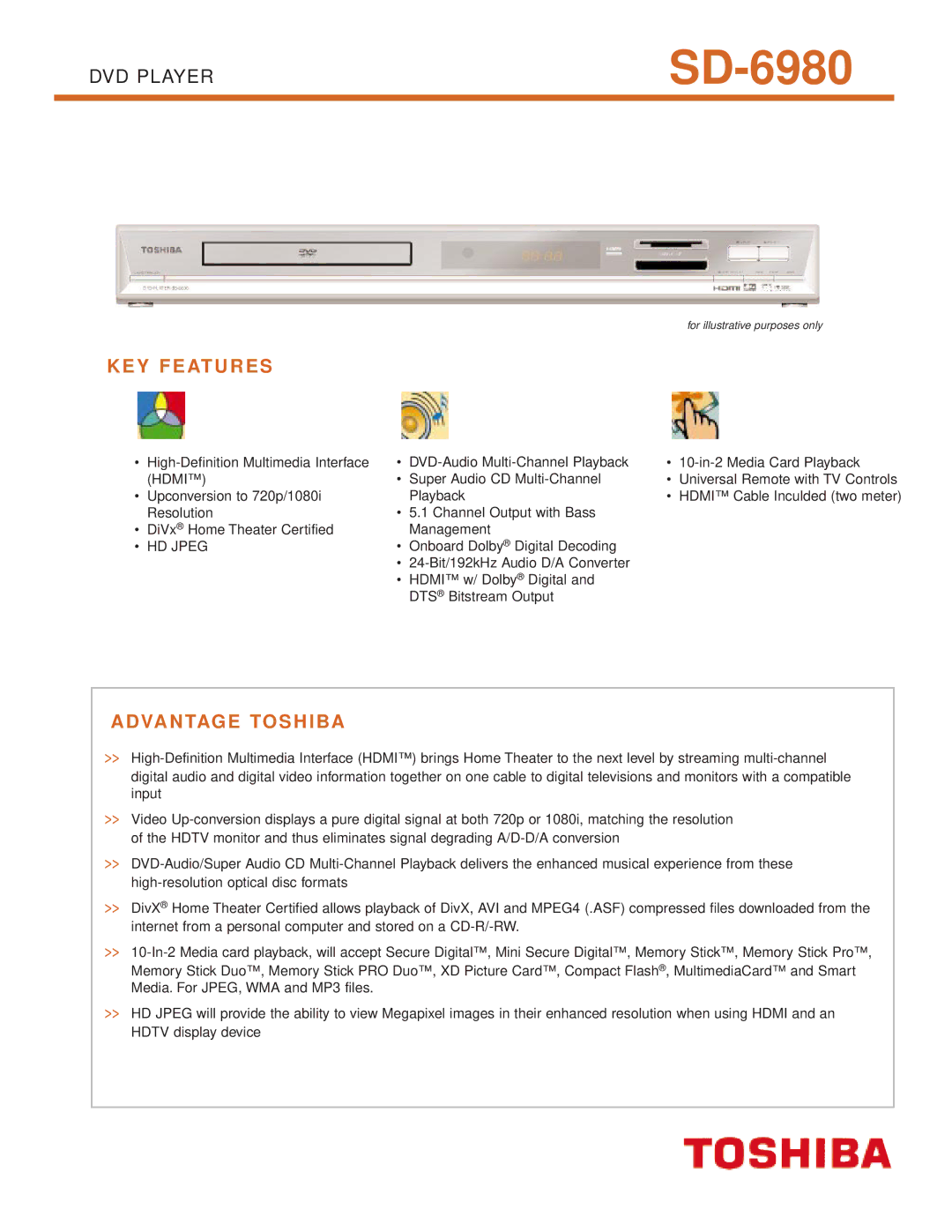

Image 2
Toshiba SD-6980 manual E C I F I C At I O N S

SD-6980 specifications

The Toshiba SD-6980 is a versatile and compact DVD player that captures the attention of both movie enthusiasts and casual viewers alike. Known for its quality performance and user-friendly features, this model has become a staple in many home entertainment systems.

One of the standout characteristics of the SD-6980 is its ability to play a wide range of disc formats. It supports DVD-Video, DVD-R/RW, DVD+R/RW, CD, CD-R/RW, and MP3 CDs, making it an ideal choice for those with diverse media collections. This extensive format compatibility ensures that users can enjoy their favorite movies, music, and other content without worrying about compatibility issues.

The SD-6980 is equipped with advanced video technology that enhances the viewing experience. It features progressive scan output, which delivers clearer and sharper images by providing a complete image in a single pass rather than alternating lines. This technology helps reduce motion artifacts and ensures that fast-moving action scenes are smooth and detailed.

Audio quality is equally impressive, with the SD-6980 supporting Dolby Digital and DTS audio formats. This feature provides immersive sound that complements the high-quality video, allowing users to enjoy a cinematic experience right in the comfort of their living rooms. Additionally, the player includes a built-in 24-bit digital to analog converter, enhancing the overall audio performance.

Another noteworthy aspect of the Toshiba SD-6980 is its convenient connectivity options. It comes equipped with composite, S-Video, and component video outputs, providing flexibility in connecting to various TVs and home theater systems. It also offers optical and coaxial digital audio outputs, allowing for seamless connectivity with modern audio equipment.

User experience is enhanced by the SD-6980’s intuitive interface and remote control. The straightforward menu navigation ensures that users can easily access their preferred features and settings. The player also supports multiple language subtitles and audio tracks, catering to a global audience.

In summary, the Toshiba SD-6980 is a reliable and feature-rich DVD player that combines quality, compatibility, and convenience. With its ability to handle multiple formats, enhanced video and audio technologies, and user-friendly design, it remains a popular choice for anyone looking to elevate their home entertainment experience. Whether you're watching DVDs or listening to music, the SD-6980 is designed to deliver high performance and satisfaction.
