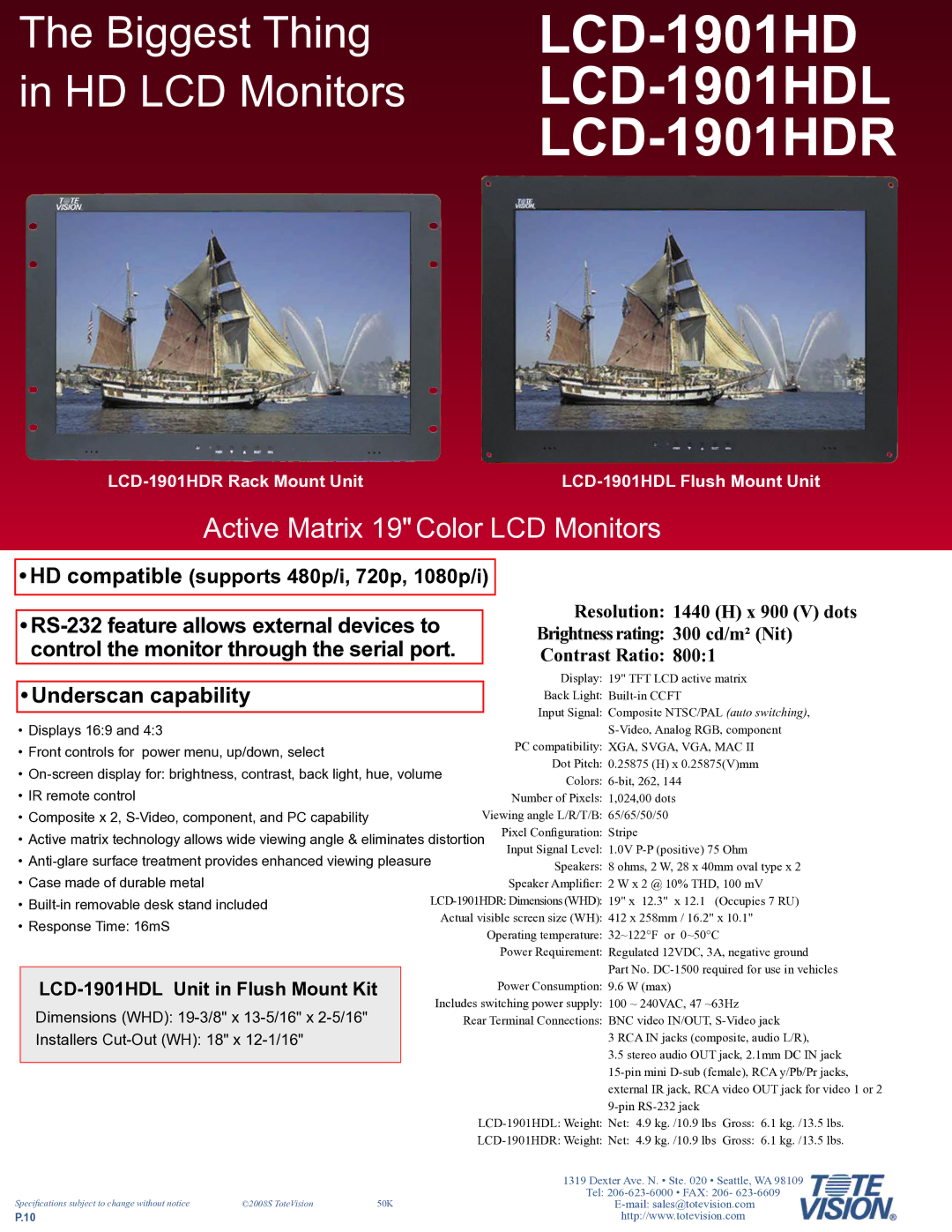

The Biggest Thing in HD LCD Monitors

The Biggest Thing in HD LCD Monitors

LCD-1901HD LCD-1901HDL LCD-1901HDR

LCD-1901HDR Rack Mount UnitLCD-1901HDL Flush Mount Unit

Active Matrix 19" Color LCD Monitors

•HD compatible (supports 480p/i, 720p, 1080p/i)

•RS-232 feature allows external devices to control the monitor through the serial port.

Resolution: 1440 (H) x 900 (V) dots Brightness rating: 300 cd/m² (Nit) Contrast Ratio: 800:1



















Display: 19" TFT LCD active matrix







• Underscan capability











Back Light: Built-in CCFT























Input Signal: Composite NTSC/PAL (auto switching),



• Displays 16:9 and 4:3



























S-Video, Analog RGB, component



• Front controls for power menu, up/down, select











PC compatibility: XGA, SVGA, VGA, MAC II















Dot Pitch: 0.25875 (H) x 0.25875(V)mm





• On-screen display for: brightness, contrast, back light, hue, volume













Colors: 6-bit, 262, 144







• IR remote control































Number of Pixels: 1,024,00 dots







• Composite x 2, S-Video, component, and PC capability







Viewing angle L/R/T/B: 65/65/50/50







• Active matrix technology allows wide viewing angle & eliminates distortion

Pixel Configuration: Stripe







Input Signal Level: 1.0V P-P (positive) 75 Ohm





• Anti-glare surface treatment provides enhanced viewing pleasure

















Speakers: 8 ohms, 2 W, 28 x 40mm oval type x 2



• Case made of durable metal













Speaker Amplifier: 2 W x 2 @ 10% THD, 100 mV



• Built-in removable desk stand included



LCD-1901HDR: Dimensions (WHD): 19" x 12.3" x 12.1 (Occupies 7 RU)



• Response Time: 16mS







Actual visible screen size (WH): 412 x 258mm / 16.2" x 10.1"

















Operating temperature: 32~122°F or 0~50°C













































Power Requirement: Regulated 12VDC, 3A, negative ground



















Part No. DC-1500 required for use in vehicles





LCD-1901HDL Unit in Flush Mount Kit





















Power Consumption: 9.6 W (max)









Dimensions (WHD): 19-3/8" x 13-5/16" x 2-5/16"





Includes switching power supply: 100 ~ 240VAC, 47 ~63Hz













Rear Terminal Connections: BNC video IN/OUT, S-Video jack





Installers Cut-Out (WH): 18" x 12-1/16"











3 RCA IN jacks (composite, audio L/R),



















3.5 stereo audio OUT jack, 2.1mm DC IN jack



















15-pin mini D-sub (female), RCA y/Pb/Pr jacks,



















external IR jack, RCA video OUT jack for video 1 or 2



















9-pin RS-232 jack



















LCD-1901HDL: Weight: Net:

4.9 kg. /10.9 lbs

Gross:

6.1 kg. /13.5 lbs.















LCD-1901HDR: Weight: Net:

4.9 kg. /10.9 lbs

Gross:

6.1 kg. /13.5 lbs.



















1319 Dexter Ave. N. • Ste. 020 • Seattle, WA 98109



















Tel: 206-623-6000 • FAX: 206- 623-6609

Specifications subject to change without notice

©2008S ToteVision
