Tote Vision LCD-2300HD dimensions The Biggest Thing in LCD HDTV Monitors, with, RS-232, Hdmi

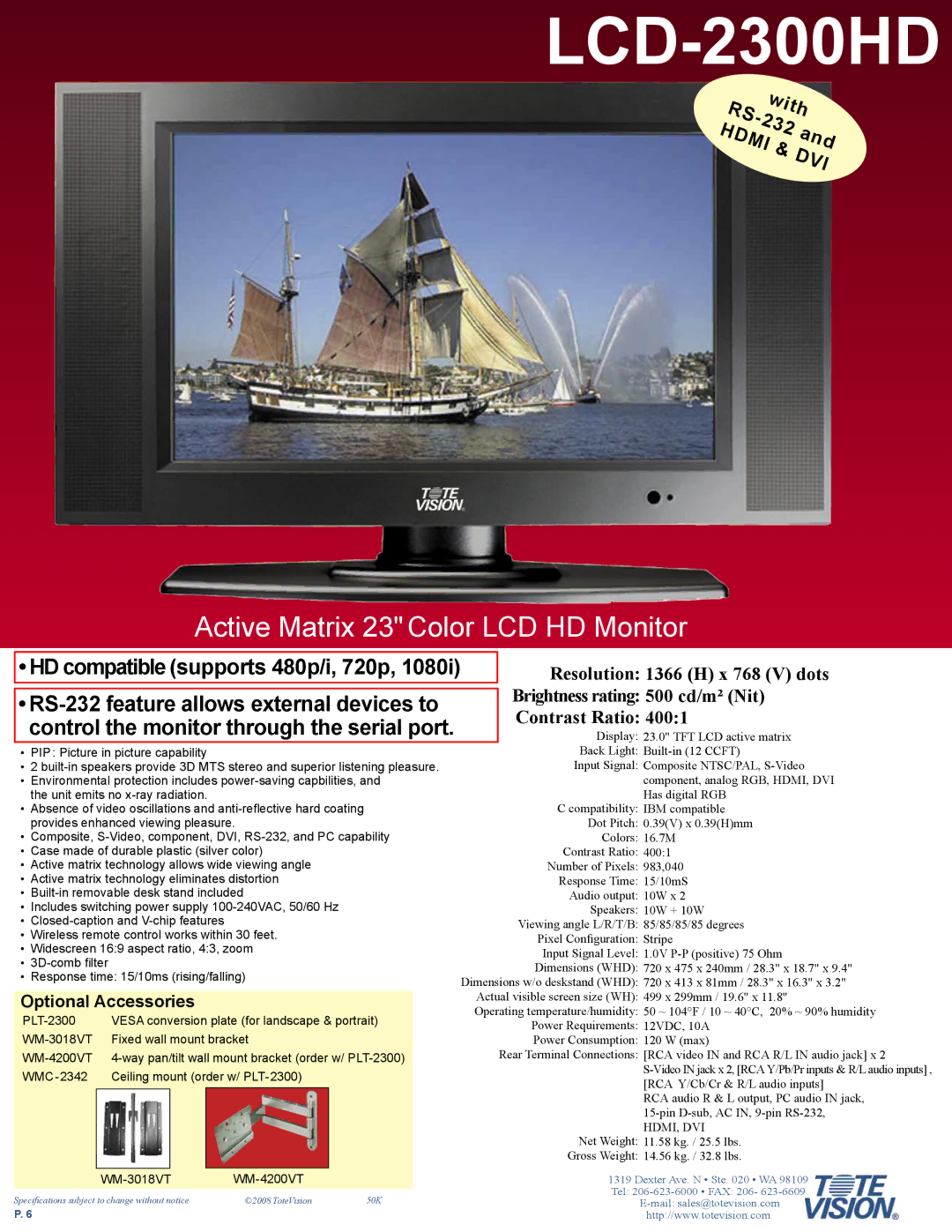

LCD-2300HD

The Biggest Thing in LCD HDTV Monitors

	with
RS-232		and
HDMI	&
		DVI

Active Matrix 23" Color LCD HD Monitor

• HD compatible (supports 480p/i, 720p, 1080i)			Resolution: 1366 (H) x 768 (V) dots
• RS-232 feature allows external devices to			Brightness rating: 500 cd/m² (Nit)
			Contrast Ratio: 400:1
control the monitor through the serial port.
			Display: 23.0" TFT LCD active matrix
• PIP : Picture in picture capability			Back Light: Built-in (12 CCFT)
• 2 built-in speakers provide 3D MTS stereo and superior listening pleasure.			Input Signal: Composite NTSC/PAL, S-Video
• Environmental protection includes power-saving capbilities, and			component, analog RGB, HDMI, DVI
the unit emits no x-ray radiation.			Has digital RGB
• Absence of video oscillations and anti-reflective hard coating			C compatibility: IBM compatible
provides enhanced viewing pleasure.			Dot Pitch: 0.39(V) x 0.39(H)mm
• Composite, S-Video, component, DVI, RS-232, and PC capability			Colors: 16.7M
• Case made of durable plastic (silver color)			Contrast Ratio: 400:1
• Active matrix technology allows wide viewing angle			Number of Pixels: 983,040
• Active matrix technology eliminates distortion
			Response Time: 15/10mS
• Built-in removable desk stand included
			Audio output: 10W x 2
• Includes switching power supply 100-240VAC, 50/60 Hz
			Speakers: 10W + 10W
• Closed-caption and V-chip features
			Viewing angle L/R/T/B: 85/85/85/85 degrees
• Wireless remote control works within 30 feet.
			Pixel Configuration: Stripe
• Widescreen 16:9 aspect ratio, 4:3, zoom
			Input Signal Level: 1.0V P-P (positive) 75 Ohm
• 3D-comb filter
			Dimensions (WHD): 720 x 475 x 240mm / 28.3" x 18.7" x 9.4"
• Response time: 15/10ms (rising/falling)
		Dimensions w/o deskstand (WHD): 720 x 413 x 81mm / 28.3" x 16.3" x 3.2"
Optional Accessories			Actual visible screen size (WH): 499 x 299mm / 19.6" x 11.8"
			Operating temperature/humidity: 50 ~ 104°F / 10 ~ 40°C, 20% ~ 90% humidity
PLT-2300	VESA conversion plate (for landscape & portrait)
			Power Requirements: 12VDC, 10A
WM-3018VT Fixed wall mount bracket
			Power Consumption: 120 W (max)
WM-4200VT	4-way pan/tilt wall mount bracket (order w/ PLT-2300)		Rear Terminal Connections: [RCA video IN and RCA R/L IN audio jack] x 2
WMC-2342	Ceiling mount (order w/ PLT-2300)		S-Video IN jack x 2, [RCA Y/Pb/Pr inputs & R/L audio inputs] ,
			[RCA Y/Cb/Cr & R/L audio inputs]

RCA audio R & L output, PC audio IN jack, 15-pin D-sub, AC IN, 9-pin RS-232,

HDMI, DVI

Net Weight: 11.58 kg. / 25.5 lbs. Gross Weight: 14.56 kg. / 32.8 lbs.

WM-3018VT	WM-4200VT
Specifications subject to change without notice	©2008 ToteVision	50K
