Transition Networks A-CF-01(SM) warranty Pwr, Activity Fiber, Activity Copper

MEDIA CONVERTER TECHNICAL SPECIFICATIONS

Standards	ATM UNI 3.1 #AF-PHY-0015
Case dimensions	3.9" x 3.0" x 1.0"	(99mm x 76mm x 25mm)
Environment	Temperature:	0-40°C (32° to 104° F )
	Humidity	10-90%, non condensing
	Altitude	0-10,000 feet
Warranty	Lifetime

Power Supply Requirements Replace power supply with only the equivalent input rating (see below) and output rating (regulated 9VDC at 0.5 A).

TN PN	Requirement	Location
3517	240 volts, 50 hertz	United Kingdom
3516	230 volts, 50 hertz	Europe
3518	120 volts, 60 hertz	USA/Canada/Mexico
3514	100 volts, 50-60 hertz	Japan
3515	240 volts, 50 hertz	Australia

CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in damage to the public telephone network.

Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer Konformität.

Compliance Information

UL Listed

CISPR/EN55022 Class A

FCC Regulations

This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at the user’s own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on the radio interference regulations of the Canadian Department of Communications.

European Regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Copyright Restrictions

© 1997 TRANSITION Networks.

All rights reserved. No part of this work may be reproduced or used in any form or by any means – graphic, electronic, or mechanical – without written permission from TRANSITION Networks.

Trademark Notice

Minneapolis, MN 55344 USA

25/155 Mb/s ATM

Copper-to-Fiber Media Converter

A-CF-01, A-CF-01(SM)

USER’S GUIDE

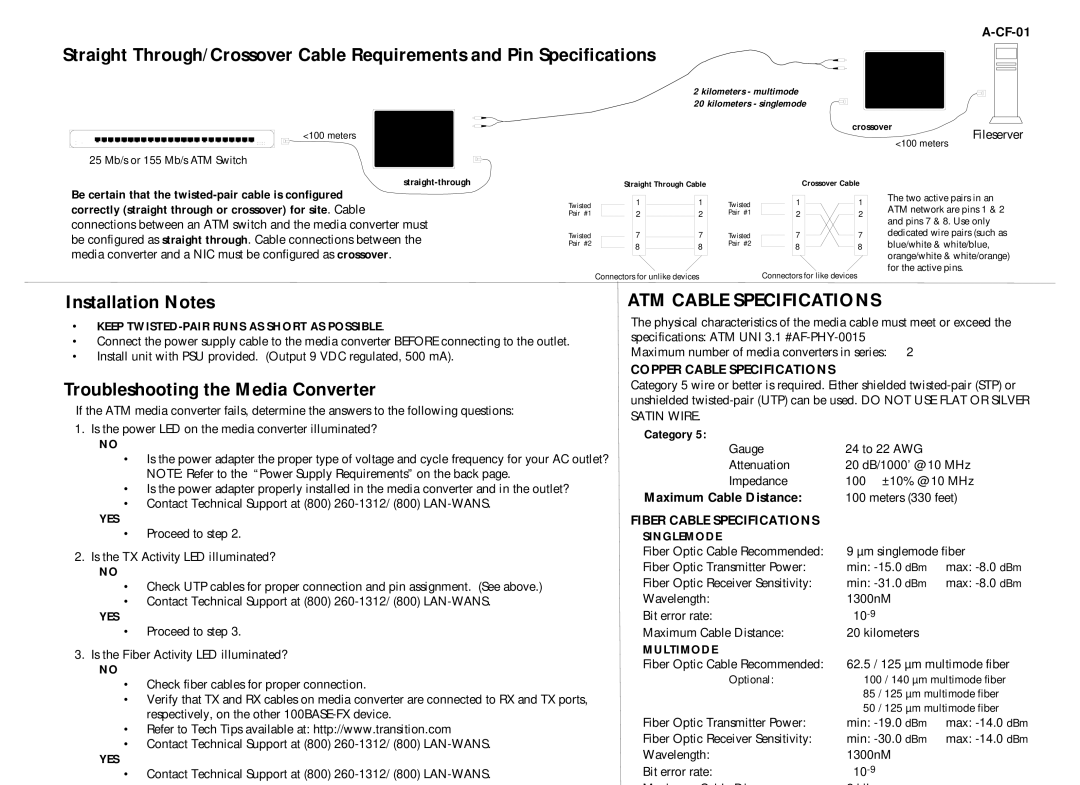

The TRANSITION Networks ATM (Asynchronous Transfer Mode) copper-to- fiber media converters connect twisted-pair copper cable network segments to multimode fiber optic cable network segments (using A-CF-01) OR to singlemode fiber optic cable network segments (using A-CF-01(SM)).

UTP

A-CF-01

Fiber

The ATM media converters provide network connection using an RJ-45 twisted- pair ATM connector and a set of RX (receive) and TX (transmit) SC-type ATM fiber connectors. NOTE: Effective cable distances are determined by ambient RF noise and by signal loss in the cable. The fiber connection, with low signal loss and high resistance to radio frequency noise, allows extended distances between ATM devices. Twisted-pair runs are best kept as short as possible to preserve signal integrity.

Status LEDs on the connector side of the media converter provide the following information:

Pwr	(Power) Illuminated		Activity
	green LED indicates		Fiber
	connection to external		Copper
	AC power.	Fiber		LinkCopper
Activity (Fiber)	Steady green LED
	indicates the fiber port is active.
Activity (Copper)	Steady green LED indicates the twisted-pair port is active.

All registered trademarks and trademarks are the property of their respective owners. 33021.D
