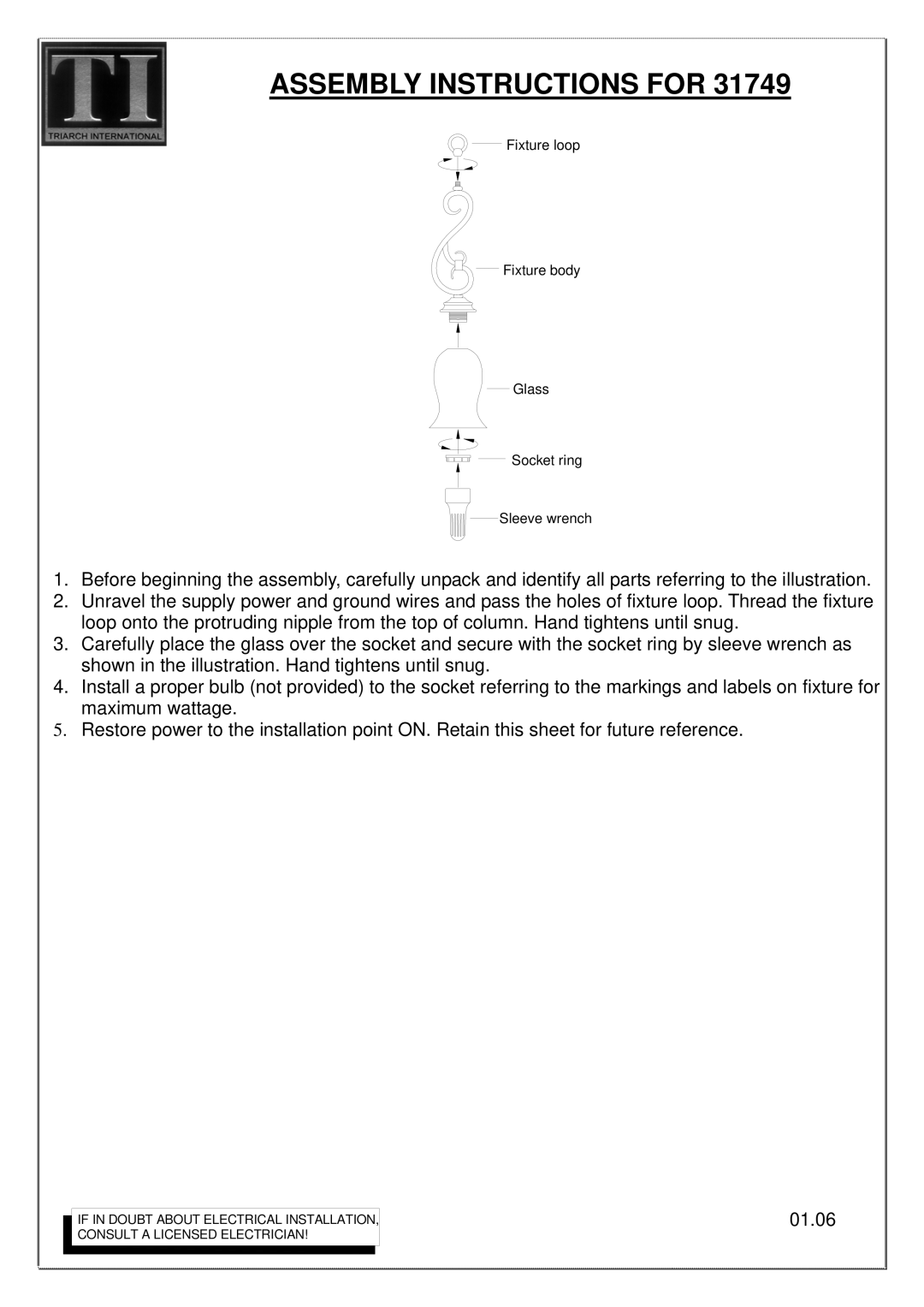

ASSEMBLY INSTRUCTIONS FOR 31749
Fixture loop
Fixture body
Glass
Socket ring
Sleeve wrench
1.Before beginning the assembly, carefully unpack and identify all parts referring to the illustration.
2.Unravel the supply power and ground wires and pass the holes of fixture loop. Thread the fixture loop onto the protruding nipple from the top of column. Hand tightens until snug.
3.Carefully place the glass over the socket and secure with the socket ring by sleeve wrench as shown in the illustration. Hand tightens until snug.
4.Install a proper bulb (not provided) to the socket referring to the markings and labels on fixture for maximum wattage.
5.Restore power to the installation point ON. Retain this sheet for future reference.
IF IN DOUBT ABOUT ELECTRICAL INSTALLATION, CONSULT A LICENSED ELECTRICIAN!
01.06
