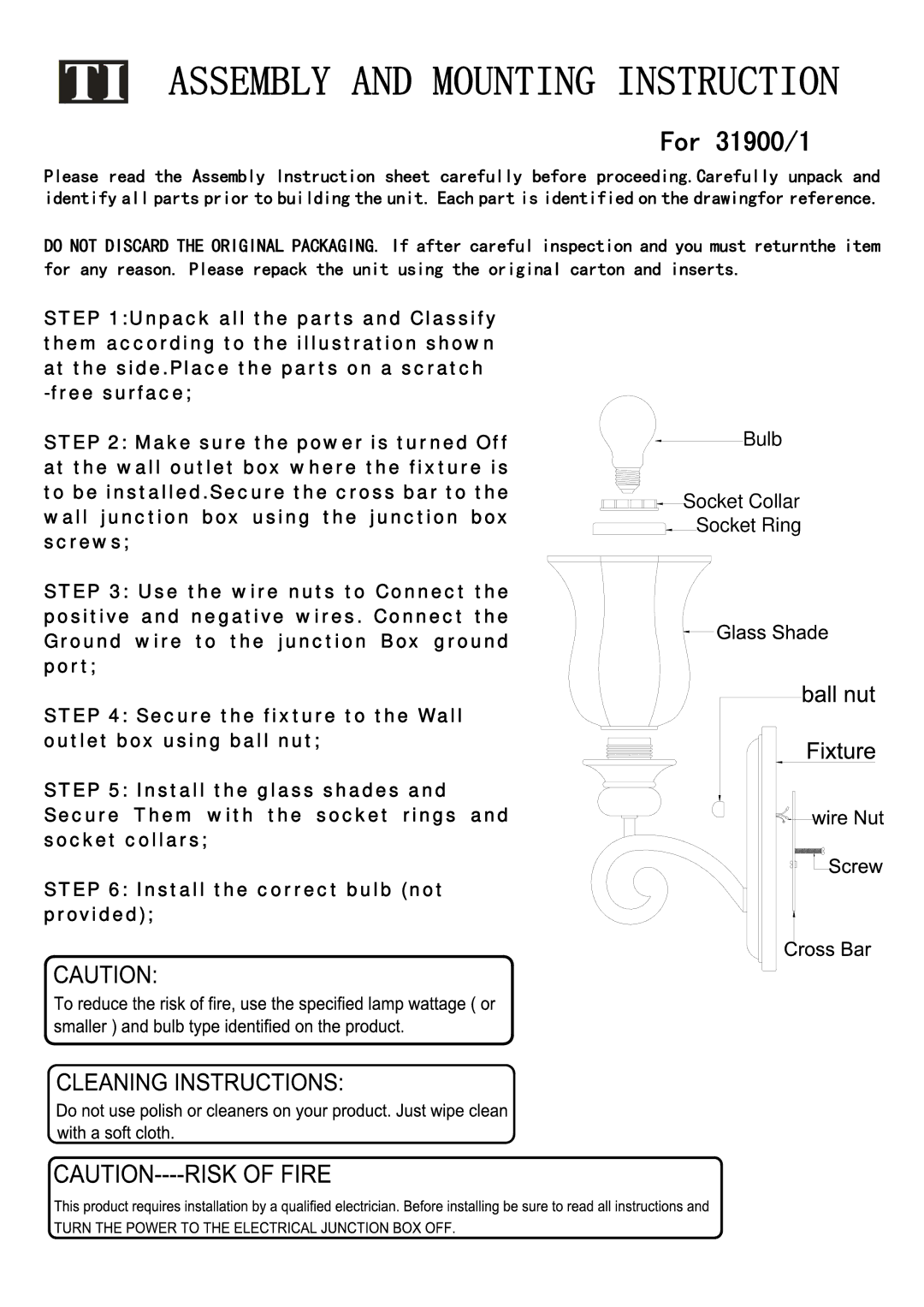

ASSEMBLY AND MOUNTING INSTRUCTION

For 31900/1

Please read the Assembly lnstruction sheet carefully before proceeding.Carefully unpack and identify all parts prior to building the unit. Each part is identified on the drawingfor reference.

DO NOT DISCARD THE ORIGINAL PACKAGING. If after careful inspection and you must returnthe item for any reason. Please repack the unit using the original carton and inserts.

STEP 1:Unpack all the parts and Classify them according to the illustration shown at the side.Place the parts on a scratch -free surface;

STEP 2: Make sure the power is turned Off at the wall outlet box where the fixture is to be installed.Secure the cross bar to the wall junction box using the junction box screws;

STEP 3: Use the wire nuts to Connect the positive and negative wires. Connect the Ground wire to the junction Box ground port;

STEP 4: Secure the fixture to the Wall outlet box using ball nut;

STEP 5: Install the glass shades and Secure Them with the socket rings and socket collars;

STEP 6: Install the correct bulb (not provided);

Bulb

Socket Collar Socket Ring
