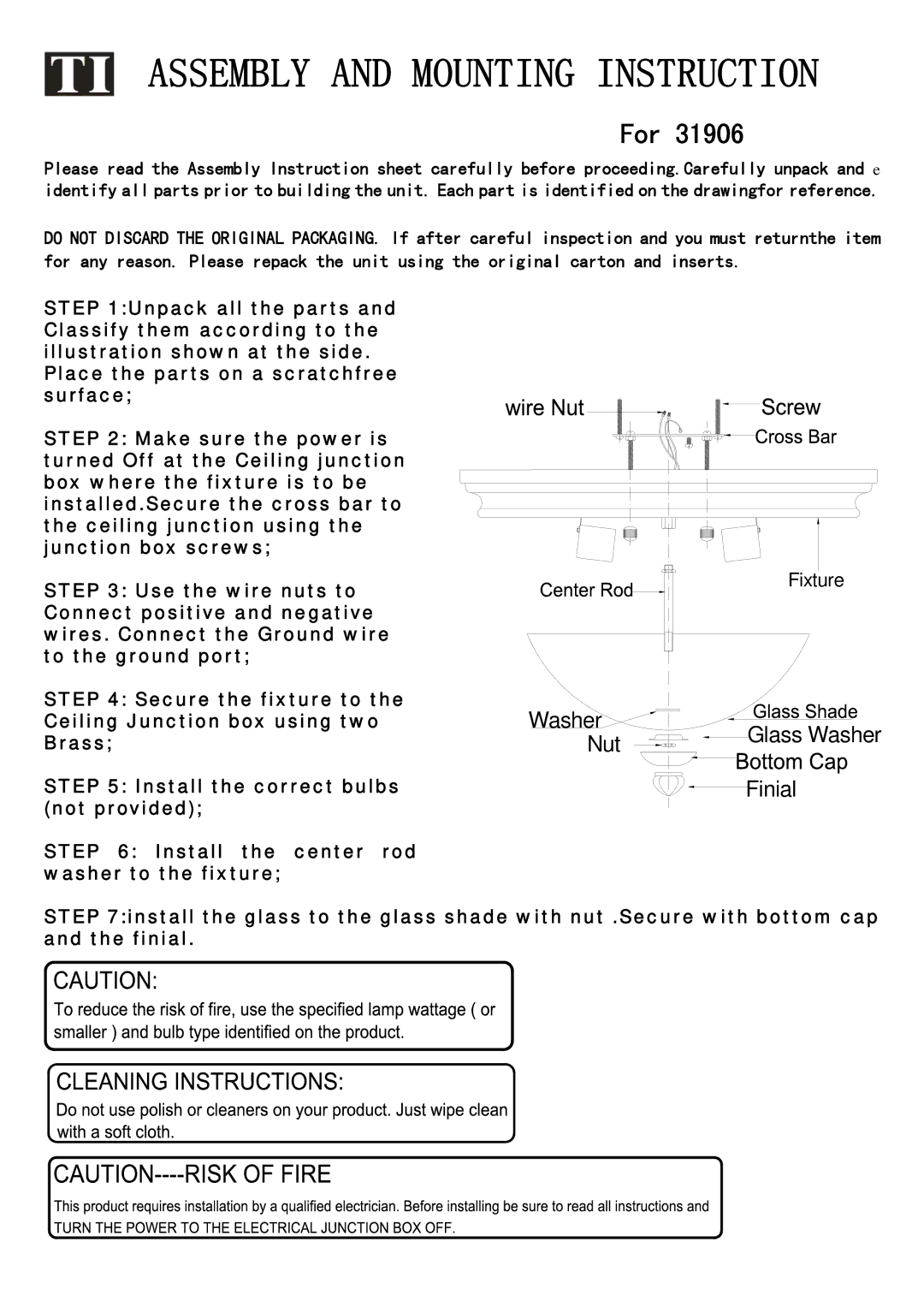

ASSEMBLY AND MOUNTING INSTRUCTION
For 31906
Please read the Assembly lnstruction sheet carefully before proceeding.Carefully unpack and e identify all parts prior to building the unit. Each part is identified on the drawingfor reference.
DO NOT DISCARD THE ORIGINAL PACKAGING. If after careful inspection and you must returnthe item for any reason. Please repack the unit using the original carton and inserts.
STEP 1:Unpack all the parts and Classify them according to the illustration shown at the side. Place the parts on a scratchfree surface;
STEP 2: Make sure the power is turned Off at the Ceiling junction box where the fixture is to be installed.Secure the cross bar to the ceiling junction using the junction box screws;
STEP 3: Use the wire nuts to Connect positive and negative wires. Connect the Ground wire to the ground port;
STEP 4: Secure the fixture to the Ceiling Junction box using two Brass;
STEP 5: Install the correct bulbs (not provided);
STEP 6: Install the center rod washer to the fixture;
Fixture
Washer | Glass Washer | |
Nut | ||
| ||
| Finial |
STEP 7:install the glass to the glass shade with nut .Secure with bottom cap and the finial.
