Top View

Side View

Inlet View

System

Module

Module

Inside

Module

Inside

System

Module

Flange

Flange

Weight

(CFM)

Designation

Width

Width

Height

Height

Depth

(lbs)

2000

Shallow Filter

26.00

24.00

29.25

24.25

22.00

110

Deep Filter

26.00

24.00

29.25

24.25

34.00

132





Gas/Odor Filter

26.00

24.00

29.25

24.25

38.00

300



HEPA Filter

28.00

26.00

29.50

24.50

22.25

127



Blower

28.00

n/a

31.00

n/a

36.39

188

















3000

Shallow Filter

37.25

35.25

29.25

24.25

22.00

120

Deep Filter

37.25

35.25

29.25

24.25

34.00

155





Gas/Odor Filter

38.00

36.00

29.25

24.25

38.00

421



HEPA Filter

41.00

39.00

29.50

24.50

22.25

142



Blower

41.00

n/a

31.00

n/a

36.39

212

















4000

Shallow Filter

49.25

47.25

29.25

24.25

22.00

145

Deep Filter

49.25

47.25

29.25

24.25

34.00

176





Gas/Odor Filter

50.00

48.00

29.25

24.25

38.00

518



HEPA Filter

53.00

51.00

29.50

24.50

22.25

185



Blower

53.00

n/a

31.00

n/a

36.39

233

















6000

Shallow Filter

37.25

35.25

53.50

48.50

22.00

150

Deep Filter

37.25

35.25

53.50

48.50

34.00

194





Gas/Odor Filter

38.00

36.00

53.50

48.50

38.00

687



HEPA Filter

41.00

39.00

54.00

49.00

22.25

241



Blower

41.00

n/a

54.25

n/a

42.39

408

















8000

Shallow Filter

49.25

47.25

53.50

48.50

22.00

185

Deep Filter

49.25

47.25

53.50

48.50

34.00

233





Gas/Odor Filter

50.00

48.00

53.50

48.50

38.00

889



HEPA Filter

53.00

51.00

54.00

49.00

22.25

277



Blower

53.00

n/a

54.25

n/a

42.39

441

















1.All dimensions in inches

2.Module height dimensions include 3” rails

3.Module weight determined without filters

4.Gas/Odor Filter weight includes 76-84# carbon/1000 CFM; consult factory for weights including Potassium Permanganate trays.

6

Page 6
Image 6

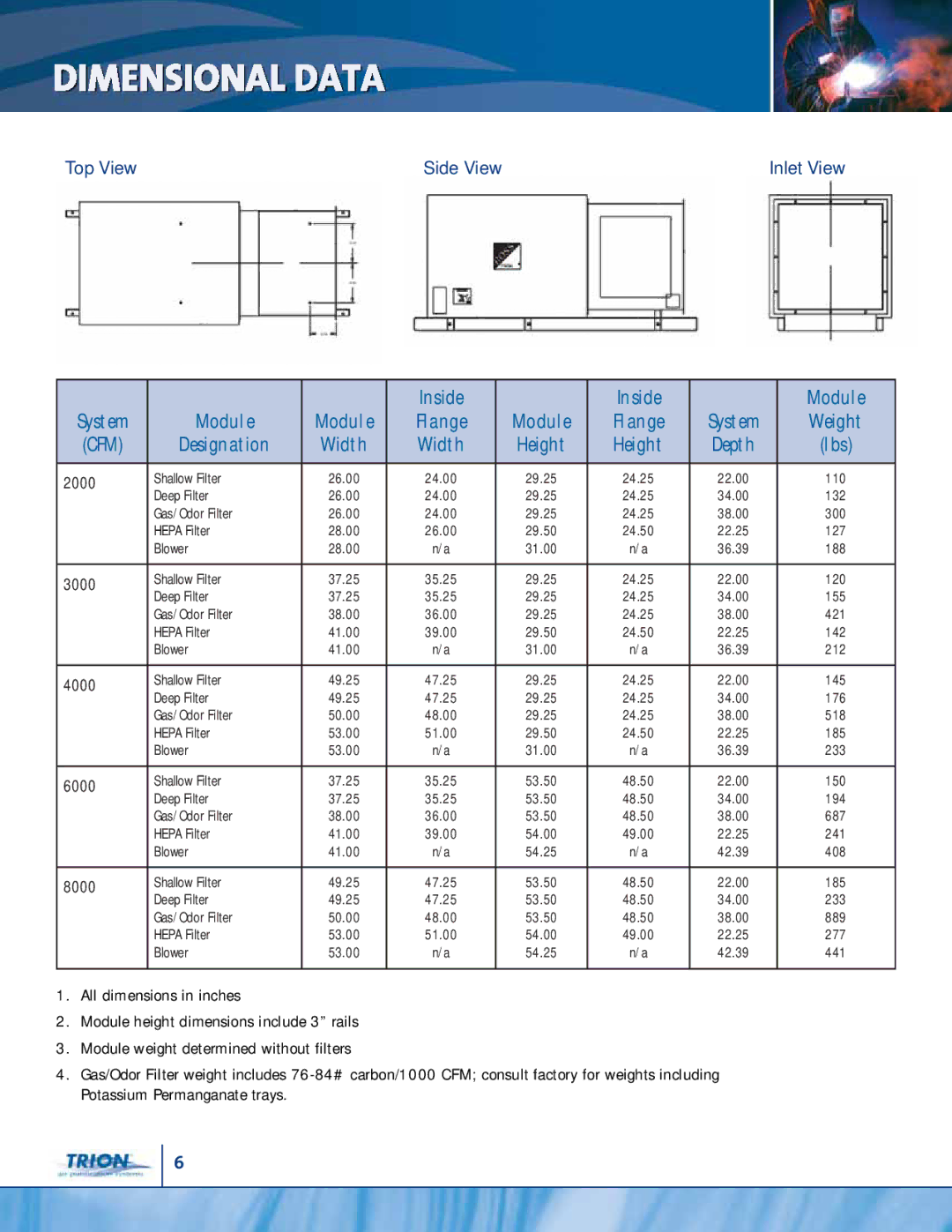

Trion Modular Filterpac Media Air Cleaner manual Cfm, Top View Side View Inlet View
