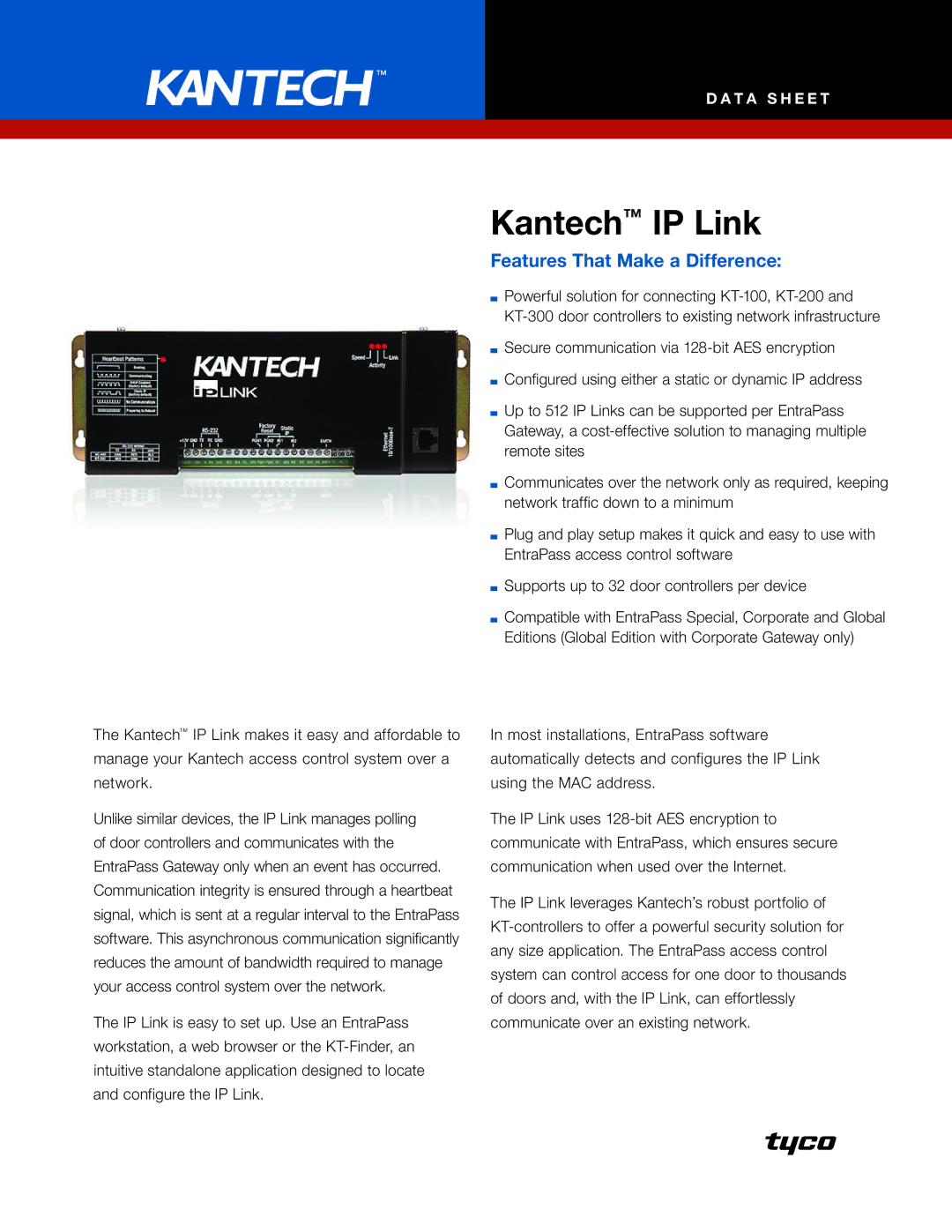

Tyco KT-300, KT-200 manual D A T a s h e e t, Kantech IP Link, Features That Make a Difference

D A T a s h e e t

The Kantech™ IP Link makes it easy and affordable to manage your Kantech access control system over a network.

Unlike similar devices, the IP Link manages polling of door controllers and communicates with the EntraPass Gateway only when an event has occurred. Communication integrity is ensured through a heartbeat signal, which is sent at a regular interval to the EntraPass software. This asynchronous communication significantly reduces the amount of bandwidth required to manage your access control system over the network.

The IP Link is easy to set up. Use an EntraPass workstation, a web browser or the KT-Finder, an intuitive standalone application designed to locate and configure the IP Link.

Kantech™ IP Link

Features That Make a Difference:

Powerful solution for connecting KT-100, KT-200 and KT-300 door controllers to existing network infrastructure

Secure communication via 128-bit AES encryption

Configured using either a static or dynamic IP address

Up to 512 IP Links can be supported per EntraPass Gateway, a cost-effective solution to managing multiple remote sites

Communicates over the network only as required, keeping network traffic down to a minimum

Plug and play setup makes it quick and easy to use with EntraPass access control software

Supports up to 32 door controllers per device

Compatible with EntraPass Special, Corporate and Global Editions (Global Edition with Corporate Gateway only)

In most installations, EntraPass software automatically detects and configures the IP Link using the MAC address.

The IP Link uses 128-bit AES encryption to communicate with EntraPass, which ensures secure communication when used over the Internet.

The IP Link leverages Kantech’s robust portfolio of KT-controllers to offer a powerful security solution for any size application. The EntraPass access control system can control access for one door to thousands of doors and, with the IP Link, can effortlessly communicate over an existing network.
