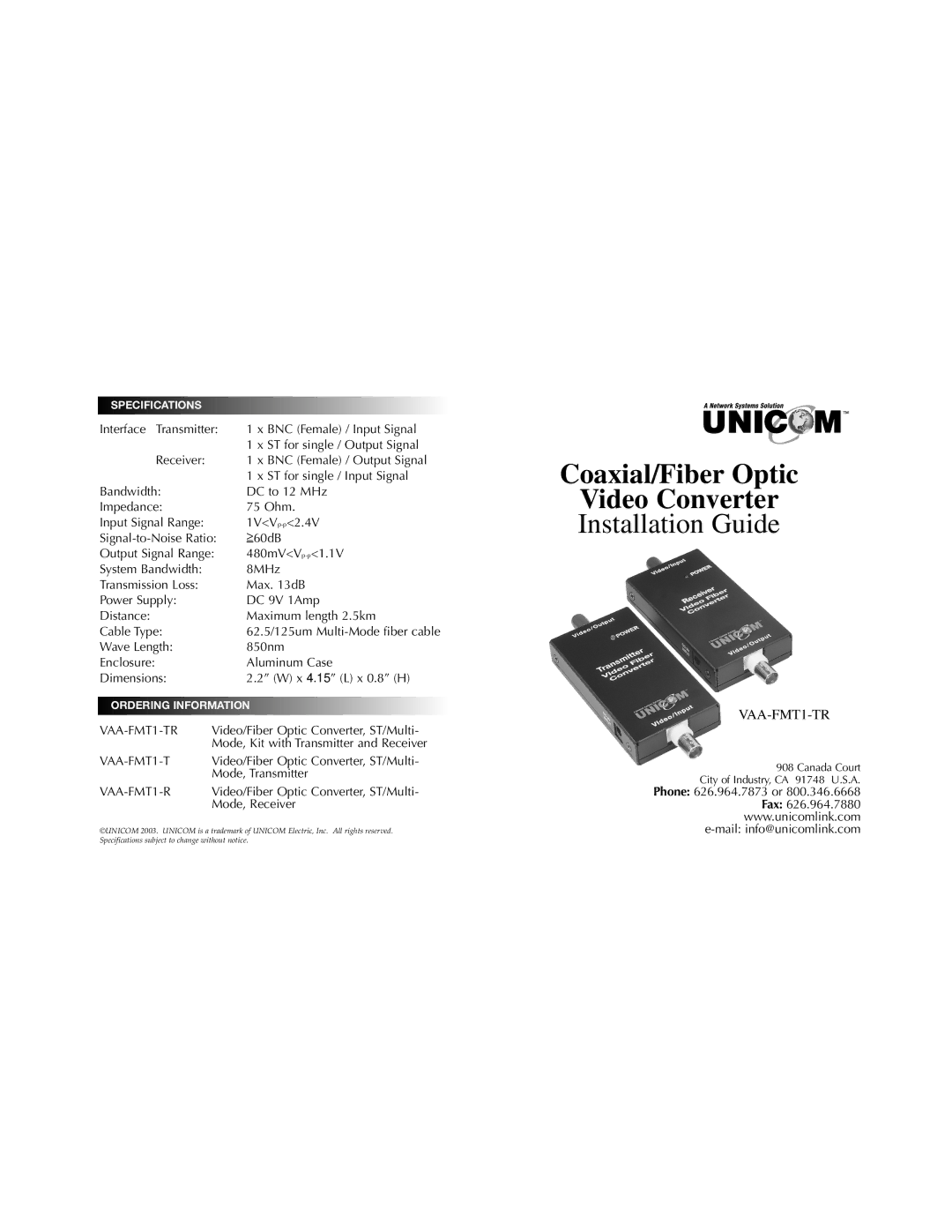

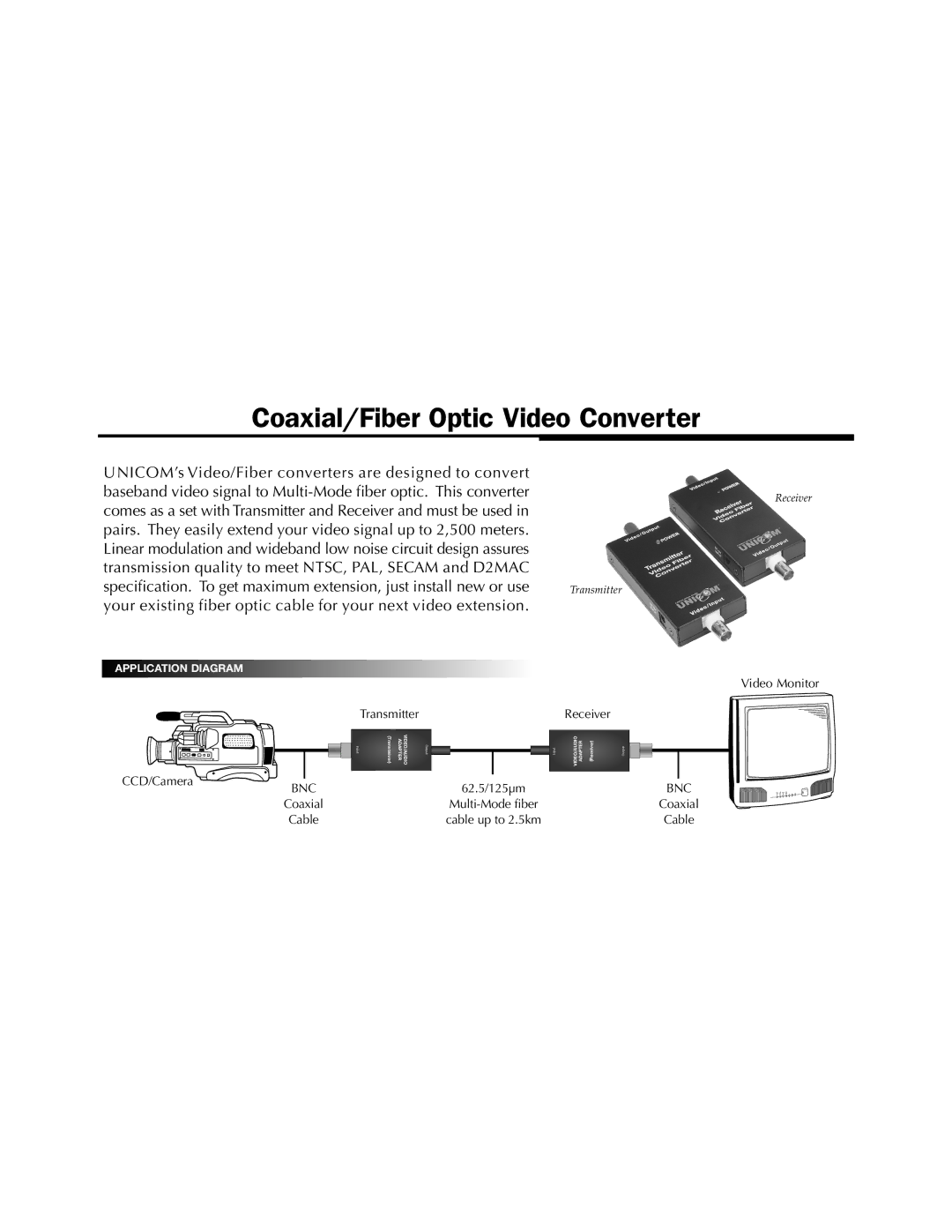

Coaxial/Fiber OpticVideo ConverterInstallation Guide

VAA-FMT1-TR

SPECIFICATIONS
Interface Transmitter: 1 x BNC (Female) / Input Signal
1 x ST for single / Output Signal
Receiver: 1 x BNC (Female) / Output Signal
1 x ST for single / Input Signal
Bandwidth: DC to 12 MHz
Impedance: 75 Ohm.
Input Signal Range: 1V<Vp-p<2.4V
Signal-to-Noise Ratio: ≥60dB
Output Signal Range: 480mV<Vp-p<1.1V
System Bandwidth: 8MHz
Transmission Loss: Max. 13dB
Power Supply: DC 9V 1Amp
Distance: Maximum length 2.5km
Cable Type: 62.5/125um Multi-Mode fiber cable
Wave Length: 850nm
Enclosure: Aluminum Case
Dimensions: 2.2” (W) x 4.15” (L) x 0.8” (H)
VAA-FMT1-TR Video/Fiber Optic Converter, ST/Multi-
Mode, Kit with Transmitter and Receiver
VAA-FMT1-T Video/Fiber Optic Converter, ST/Multi-
Mode, Transmitter
VAA-FMT1-R Video/Fiber Optic Converter, ST/Multi-
Mode, Receiver
ORDERING INFORMATION
©UNICOM 2003. UNICOM is a trademark of UNICOM Electric, Inc. All rights reserved.
Specifications subject to change without notice.
