Premium VGA Cooling Kit 6 PRODUCT DESCRIPTION

As the universal cooler, Vantec’s IceBerg 6 introduces new era of extreme VGA cooling. The sophisticated design of dual adjustable axles and multiple mounting holes solved compatibility issues with most prominent VGA cards on the market. In addition to effective GPU and memory chipsets cooling, the built-in inhaling blower and wind tunnel help to drop the temperature in your computer case.

FEATURES

RECOMMENDED FOR

Compatible with vitually all VGA cards

nVidiaTM

ATITM

Long life Silent Ball Bearing fans

GeForce 3 Ti 200/ 500

RADEON 9000/ 9000 PRO







GeForce 4 MX 420/ 440/ 460

RADEON 9200/ 9200 PRO/ 9200 SE

Excellent heat dissipating copper heat sink

GeForce 4 MX 440 SE/ 440 8X

RADEON 9250

GeForce 4 Ti 4200/ 4200 8X

RADEON 9500/ 9550

Special designed wind tunnel for efficient airflow

GeForce 4 Ti 4400/ 4600/ 4800

RADEON 9600/ 9600 PRO/ 9600 XT

GeForce FX 5200/ 5500/ 5600/ 5700 LE

RADEON 9700/ 9700 PRO/ 9800 PRO/ 9800 XT

Easy installation

GeForce FX 5600 ULTRA/ 5700/ 5700 ULTRA

RADEON X300/ X550/ X600/ X700/ X800 /X850

















GeForce FX 5800 Series

RADEON X1300/ X1600/ X1800/ X1900 Series







GeForce FX 5900/ 5900 XT

















GeForce FX 5950 ULTRA

















GeForce 6200/ 6600 /6600 GT

















GeForce 6800/ 6800GT /6800 ULTRA











SPECIFICATION



















GeForce7600 GT/ 7600 GS

































GeForce 7800 GT/ 7800 GTX











Dimension: 203.5 x 90.2 x 33.4 mm

GeForce 7900 GT/ 7900 GTX























Heatsink Material: Full Copper

PACKAGE INCLUDES













Fan Dimension: 45 x 15 mm







Screw A X4











Bearing Type: Ball Bearing





















Fan Speed: 2700 RPM

Screw B X1





















Rated Current: 0.13 A

Spring Nut X4





















Rated Voltage: DC 12V

Cushion Spacer X4





















Power Consumption: 1.56 W

Insulation Spacer X5





















Noise: 20.9dBA

Memory Heatsink X8





















Weight: 456 g

Thermal Tape X8



Power Adapter X1

MODEL: CCB-A6C

Thermal Compound X1



Tel: (510) 668-0368

Fax: (510) 668-0367

Address: 43951 Boscell Road Fremont, CA 94538

Copyright 2006 Vantec Thermal Technologies. All Rights Reserved

www.vantecusa.com



All Registered Trademarks Belong To Their Respected Companies.

Page 1

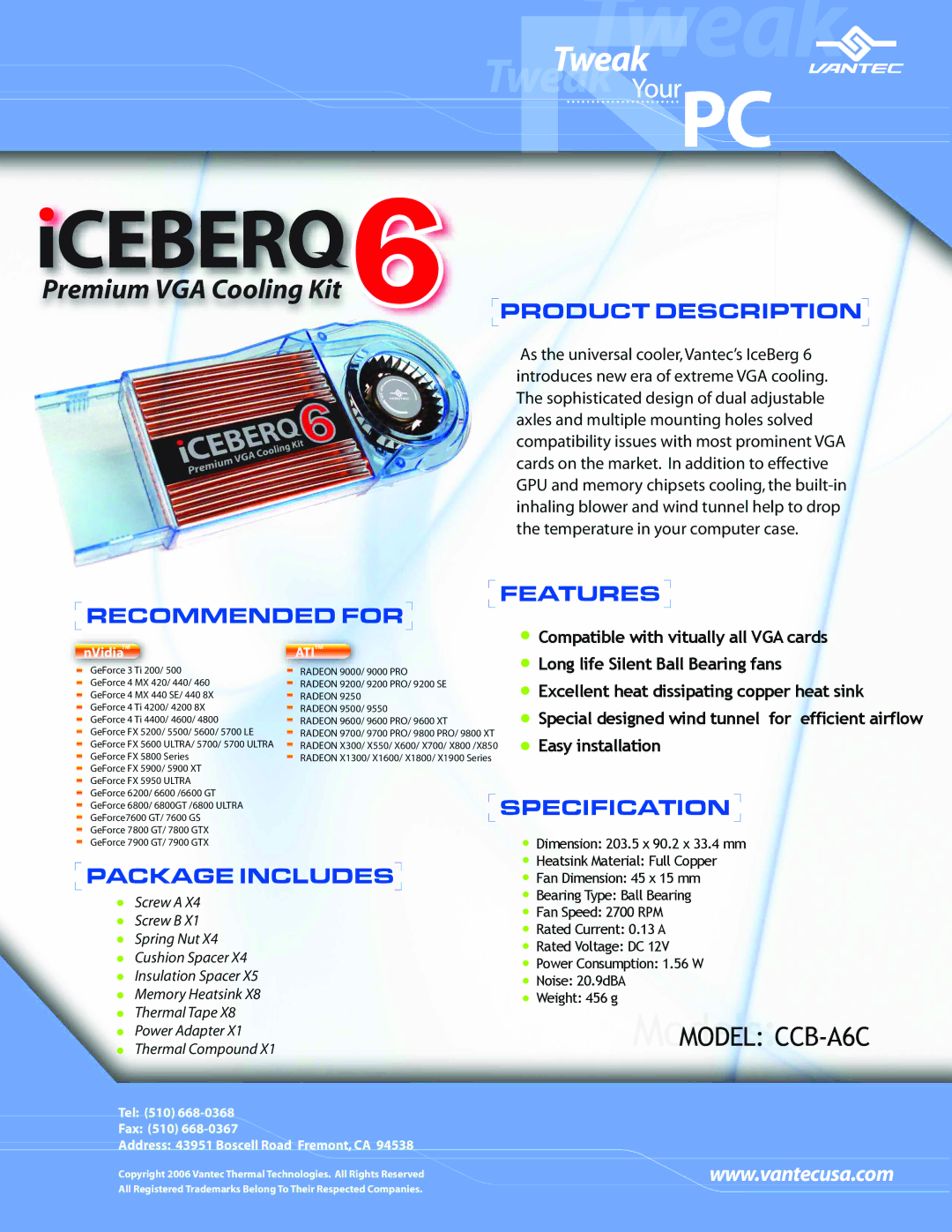

Image 1
Vantec CCB-A6C manual Features Recommended for, Specification, Package Includes

CCB-A6C specifications

The Vantec CCB-A6C is a highly regarded cooling solution designed for enthusiasts and gamers looking to enhance their system’s thermal performance. As modern computing demands increase, effective cooling solutions have become crucial for maintaining optimal hardware performance and longevity. The CCB-A6C stands out for its unique features and advanced technologies, making it a popular choice in the PC building community.

One of the main features of the Vantec CCB-A6C is its efficient heat dissipation capability. The cooler utilizes a combination of thermal technology and airflow management to ensure that the CPU maintains a stable temperature even under high loads. With its aluminum fins and high-performance copper heat pipes, the CCB-A6C is designed to quickly transfer heat away from the CPU and disperse it into the surrounding air, thereby preventing overheating.

In addition to its effective heat dissipation, the Vantec CCB-A6C boasts a low-noise design. The cooler is equipped with a PWM-controlled fan that adjusts its speed according to the CPU temperature, allowing for quiet operation during routine tasks and increased airflow when needed. This feature makes the CCB-A6C an ideal choice for those who prioritize a silent computing experience, whether for gaming, streaming, or professional work.

The Vantec CCB-A6C also emphasizes compatibility. Its universal mounting system supports various CPU sockets, making it suitable for a wide range of Intel and AMD processors. This versatility enables users to integrate the cooler into different builds without the concern of incompatibility.

Furthermore, the CCB-A6C showcases a stylish design. With a sleek and modern aesthetic, it can enhance the overall look of any build. The use of quality materials not only contributes to its effectiveness but also to its visual appeal, making it a great addition to any gamer’s rig.

Overall, the Vantec CCB-A6C combines advanced thermal technology, efficient airflow, low noise, compatibility, and visual style into one robust cooling solution. Whether you are upgrading an existing setup or building a new one, the CCB-A6C ensures that your CPU operates at optimal temperatures, giving you peace of mind and enhancing your overall computing experience.
