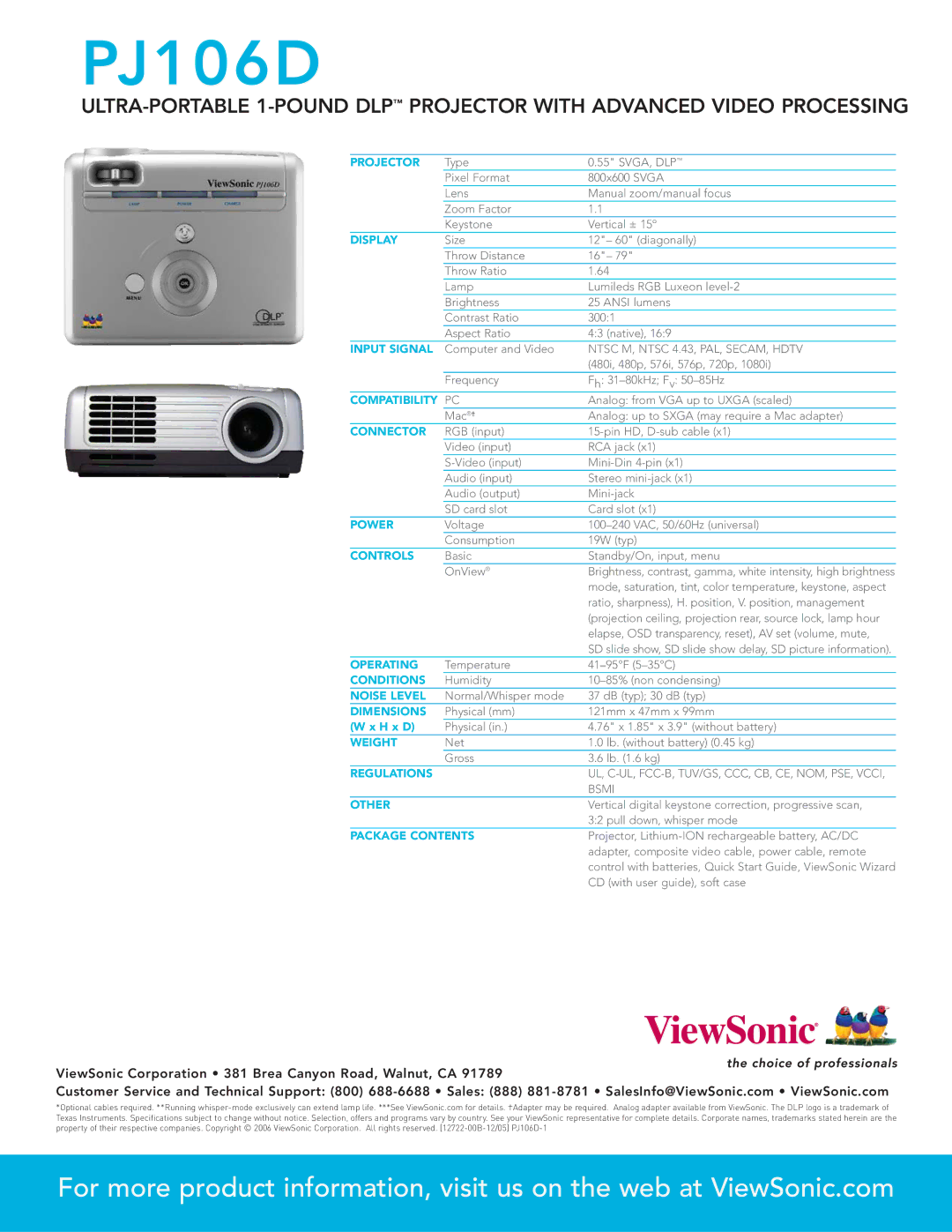

PJ106D

ULTRA-PORTABLE 1-POUND DLPPROJECTOR WITH ADVANCED VIDEO PROCESSING



PROJECTOR

Type

0.55" SVGA, DLP





Pixel Format

800x600 SVGA





Lens

Manual zoom/manual focus





Zoom Factor

1.1





Keystone

Vertical ± 15º











DISPLAY

Size

12"– 60" (diagonally)





Throw Distance

16"– 79"





Throw Ratio

1.64





Lamp

Lumileds RGB Luxeon level-2





Brightness

25 ANSI lumens





Contrast Ratio

300:1





Aspect Ratio

4:3 (native), 16:9







INPUT SIGNAL

Computer and Video

NTSC M, NTSC 4.43, PAL, SECAM, HDTV







(480i, 480p, 576i, 576p, 720p, 1080i)





Frequency

Fh: 31–80kHz; Fv: 50–85Hz



COMPATIBILITY

PC

Analog: from VGA up to UXGA (scaled)





Mac®

Analog: up to SXGA (may require a Mac adapter)



CONNECTOR

RGB (input)

15-pin HD, D-sub cable (x1)





Video (input)

RCA jack (x1)





S-Video (input)

Mini-Din 4-pin (x1)





Audio (input)

Stereo mini-jack (x1)





Audio (output)

Mini-jack





SD card slot

Card slot (x1)







POWER

Voltage

100–240 VAC, 50/60Hz (universal)





Consumption

19W (typ)



CONTROLS

Basic

Standby/On, input, menu





OnView®

Brightness, contrast, gamma, white intensity, high brightness







mode, saturation, tint, color temperature, keystone, aspect







ratio, sharpness), H. position, V. position, management







(projection ceiling, projection rear, source lock, lamp hour







elapse, OSD transparency, reset), AV set (volume, mute,







SD slide show, SD slide show delay, SD picture information).



OPERATING

Temperature

41–95°F (5–35°C)



CONDITIONS

Humidity

10–85% (non condensing)



NOISE LEVEL

Normal/Whisper mode

37 dB (typ); 30 dB (typ)



DIMENSIONS

Physical (mm)

121mm x 47mm x 99mm



(W x H x D)

Physical (in.)

4.76" x 1.85" x 3.9" (without battery)



WEIGHT

Net

1.0 lb. (without battery) (0.45 kg)





Gross

3.6 lb. (1.6 kg)



REGULATIONS



UL, C-UL, FCC-B, TUV/GS, CCC, CB, CE, NOM, PSE, VCCI,







BSMI



OTHER



Vertical digital keystone correction, progressive scan,







3:2 pull down, whisper mode



PACKAGE CONTENTS

Projector, Lithium-ION rechargeable battery, AC/DC







adapter, composite video cable, power cable, remote

control with batteries, Quick Start Guide, ViewSonic Wizard CD (with user guide), soft case

ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789

Customer Service and Technical Support: (800) 688-6688 • Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com

*Optional cables required. **Running whisper-mode exclusively can extend lamp life. ***See ViewSonic.com for details. †Adapter may be required. Analog adapter available from ViewSonic. The DLP logo is a trademark of Texas Instruments. Specifications subject to change without notice. Selection, offers and programs vary by country. See your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2006 ViewSonic Corporation. All rights reserved. [12722-00B-12/05] PJ106D-1
