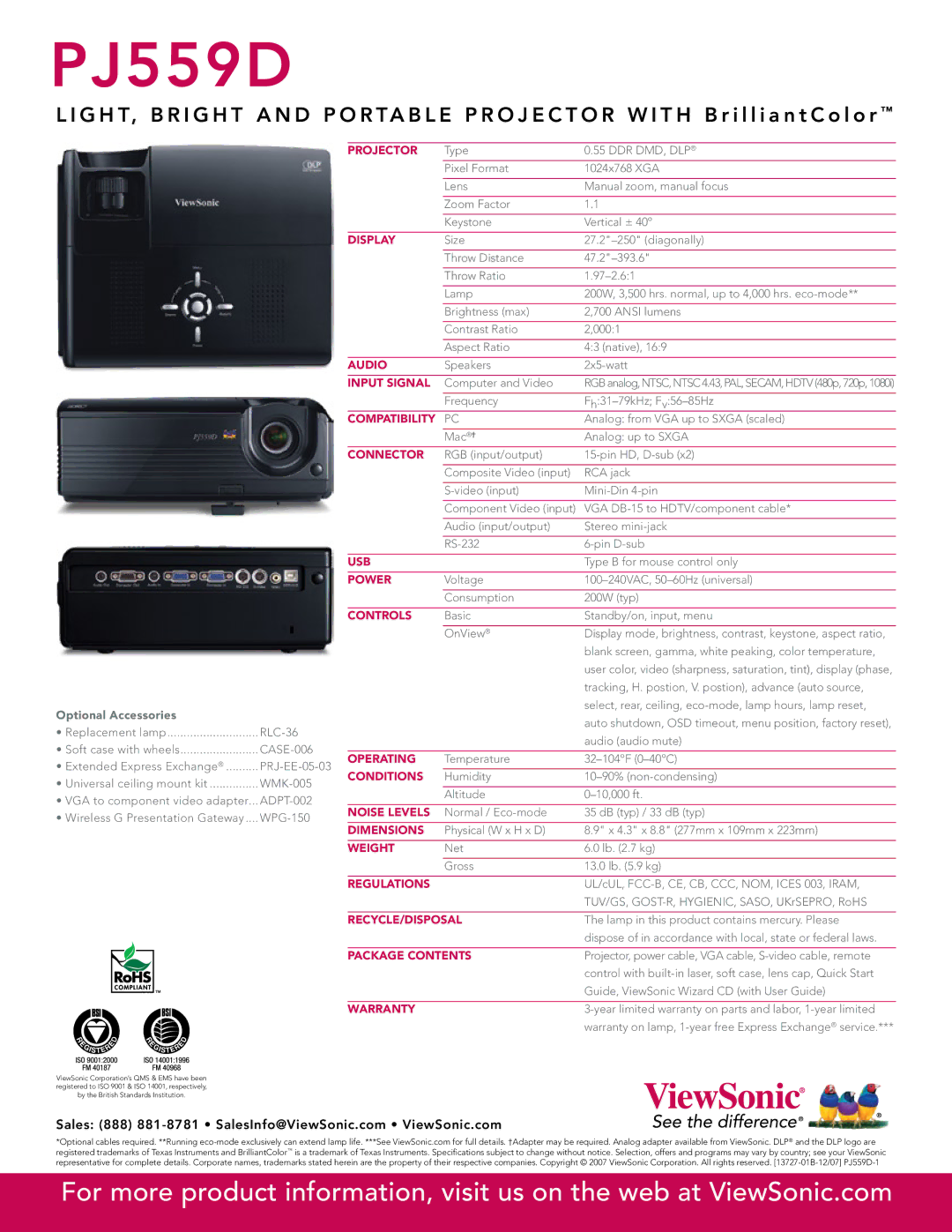

PJ559D

L I G H T, B R I G H T A N D P O R TA B L E P R O J E C T O R W I T H B r i l l i a n t C o l o r

Optional Accessories



• Replacement lamp

RLC-36

• Soft case with wheels

CASE-006

• Extended Express Exchange®

PRJ-EE-05-03

• Universal ceiling mount kit

WMK-005

• VGA to component video adapter...

ADPT-002

• Wireless G Presentation Gateway

WPG-150



PROJECTOR

Type

0.55 DDR DMD, DLP®













Pixel Format

1024x768 XGA













Lens

Manual zoom, manual focus













Zoom Factor

1.1













Keystone

Vertical ± 40º















DISPLAY

Size

27.2"–250" (diagonally)













Throw Distance

47.2"–393.6"













Throw Ratio

1.97–2.6:1













Lamp

200W, 3,500 hrs. normal, up to 4,000 hrs. eco-mode**













Brightness (max)

2,700 ANSI lumens













Contrast Ratio

2,000:1













Aspect Ratio

4:3 (native), 16:9















AUDIO

Speakers

2x5-watt











INPUT SIGNAL

Computer and Video

RGB analog, NTSC, NTSC 4.43, PAL, SECAM, HDTV (480p, 720p, 1080i)













Frequency

Fh:31–79kHz; Fv:56–85Hz



COMPATIBILITY

PC

Analog: from VGA up to SXGA (scaled)













Mac®

Analog: up to SXGA











CONNECTOR

RGB (input/output)

15-pin HD, D-sub (x2)













Composite Video (input)

RCA jack













S-video (input)

Mini-Din 4-pin













Component Video (input)

VGA DB-15 to HDTV/component cable*













Audio (input/output)

Stereo mini-jack













RS-232

6-pin D-sub















USB



Type B for mouse control only











POWER

Voltage

100–240VAC, 50–60Hz (universal)













Consumption

200W (typ)











CONTROLS

Basic

Standby/on, input, menu













OnView®

Display mode, brightness, contrast, keystone, aspect ratio,







blank screen, gamma, white peaking, color temperature,







user color, video (sharpness, saturation, tint), display (phase,







tracking, H. postion, V. postion), advance (auto source,







select, rear, ceiling, eco-mode, lamp hours, lamp reset,







auto shutdown, OSD timeout, menu position, factory reset),







audio (audio mute)











OPERATING

Temperature

32–104ºF (0–40ºC)



CONDITIONS







Humidity

10–90% (non-condensing)













Altitude

0–10,000 ft.











NOISE LEVELS

Normal / Eco-mode

35 dB (typ) / 33 dB (typ)











DIMENSIONS

Physical (W x H x D)

8.9" x 4.3" x 8.8" (277mm x 109mm x 223mm)











WEIGHT

Net

6.0 lb. (2.7 kg)













Gross

13.0 lb. (5.9 kg)











REGULATIONS



UL/cUL, FCC-B, CE, CB, CCC, NOM, ICES 003, IRAM,







TUV/GS, GOST-R, HYGIENIC, SASO, UKrSEPRO, RoHS

RECYCLE/DISPOSAL

The lamp in this product contains mercury. Please



dispose of in accordance with local, state or federal laws.





PACKAGE CONTENTS

Projector, power cable, VGA cable, S-video cable, remote



control with built-in laser, soft case, lens cap, Quick Start



Guide, ViewSonic Wizard CD (with User Guide)





WARRANTY

3-year limited warranty on parts and labor, 1-year limited



warranty on lamp, 1-year free Express Exchange® service.***

ViewSonic Corporation’s QMS & EMS have been registered to ISO 9001 & ISO 14001, respectively, by the British Standards Institution.

Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com

*Optional cables required. **Running eco-mode exclusively can extend lamp life. ***See ViewSonic.com for full details. †Adapter may be required. Analog adapter available from ViewSonic. DLP® and the DLP logo are registered trademarks of Texas Instruments and BrilliantColoris a trademark of Texas Instruments. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2007 ViewSonic Corporation. All rights reserved. [13727-01B-12/07] PJ559D-1

For more product information, visit us on the web at ViewSonic.com

Page 2

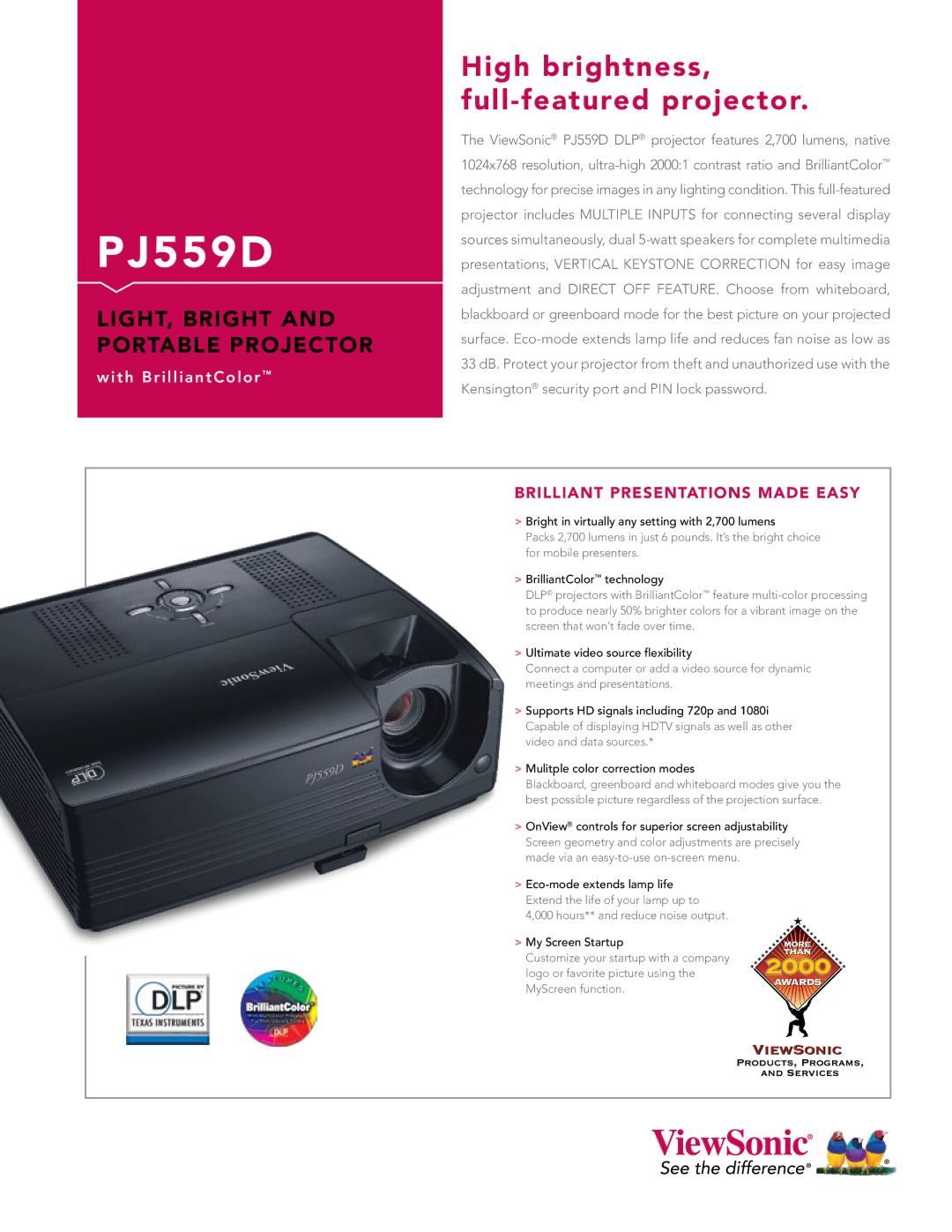

Image 2
