ViewSonic PRO9500 manual Pro9500, Optional Accessories

Pro9500

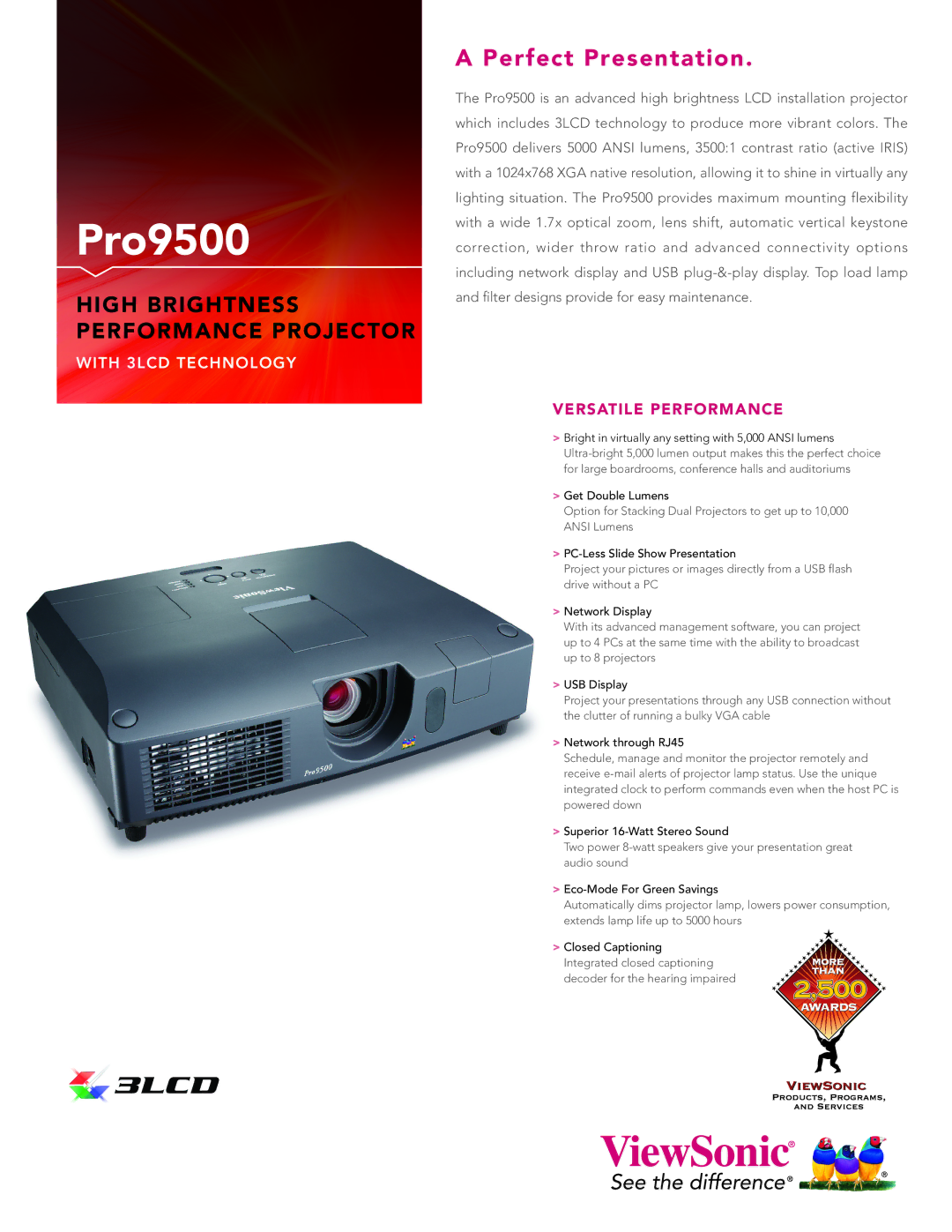

HIGH BRIGHTNESS PERFORMANCE PROJECTOR WITH 3LCD TECHNOLOGY

Optional Accessories
> Replacement Lamp					RLC-063
> Universal Ceiling Mount Kit					WMK-005
> Wireless Presentation Gateway					WPG-360
> Extended Express Exchange®					PRJ-EE-10-03
	Projection Distance		4:3 Screen Size
	M	Feet	M	Inches
0.9		2.95	0.45–0.75	17.7–29.5
1.5		4.9	0.75–1.25	29.5–49
2		6.5	1.0–1.7	39–67
4		13.1	2–3.3	78.7–130
5		16.4	2.5–4.2	98.4–165
8		26.2	4–6.7	157.5–263.8

ViewSonic Corporation’s QMS & EMS have been registered

to ISO 9001 & ISO 14001, respectively, by TUV NORD.

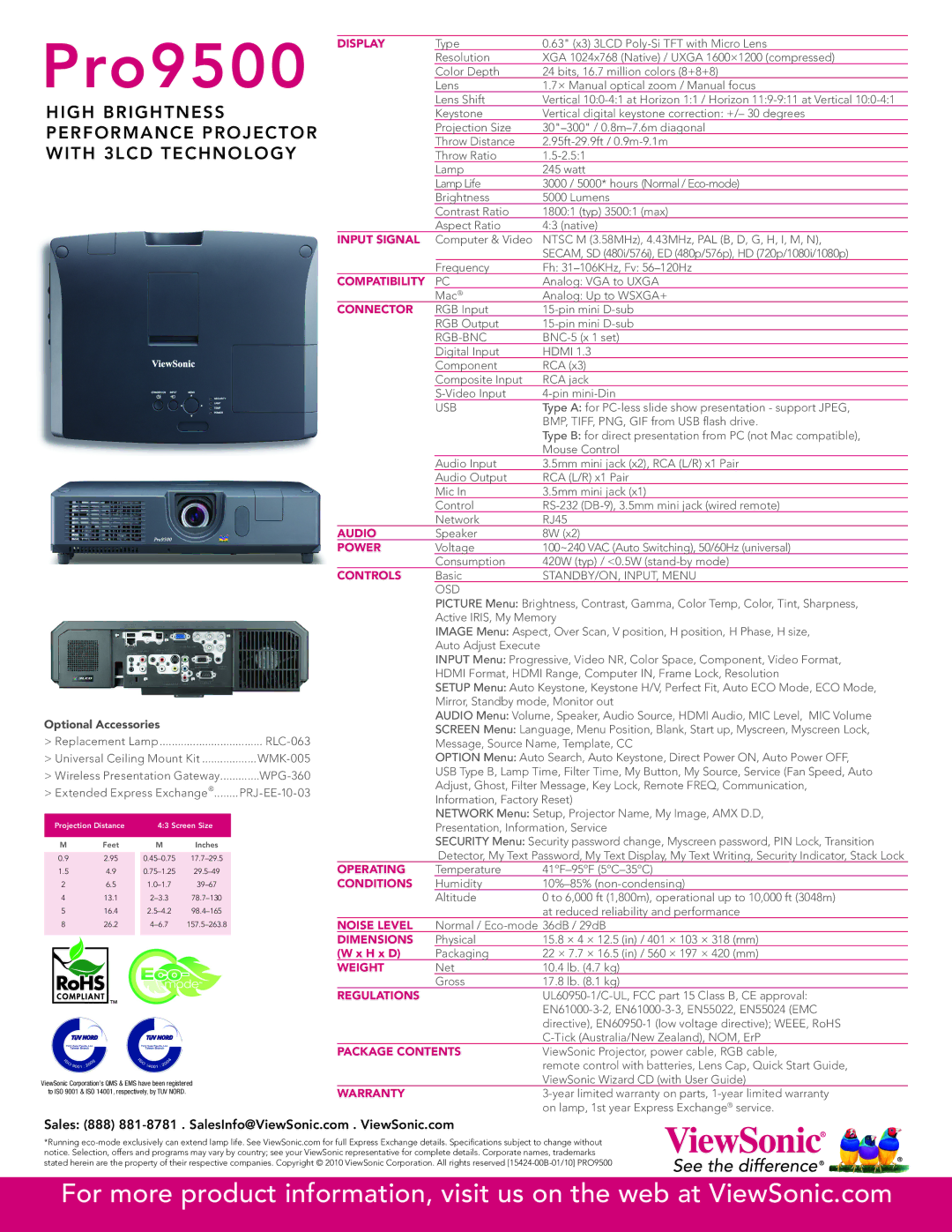

DISPLAY	Type		0.63" (x3) 3LCD Poly-Si TFT with Micro Lens
	Resolution		XGA 1024x768 (Native) / UXGA 1600×1200 (compressed)
	Color Depth		24 bits, 16.7 million colors (8+8+8)
	Lens		1.7× Manual optical zoom / Manual focus
	Lens Shift		Vertical 10:0-4:1 at Horizon 1:1 / Horizon 11:9-9:11 at Vertical 10:0-4:1
	Keystone		Vertical digital keystone correction: +/– 30 degrees
	Projection Size		30"–300" / 0.8m–7.6m diagonal
	Throw Distance		2.95ft-29.9ft / 0.9m-9.1m
	Throw Ratio		1.5-2.5:1
	Lamp		245 watt
	Lamp Life		3000 / 5000* hours (Normal / Eco-mode)
	Brightness		5000 Lumens
	Contrast Ratio		1800:1 (typ) 3500:1 (max)
	Aspect Ratio		4:3 (native)
INPUT SIGNAL	Computer & Video		NTSC M (3.58MHz), 4.43MHz, PAL (B, D, G, H, I, M, N),
			SECAM, SD (480i/576i), ED (480p/576p), HD (720p/1080i/1080p)
		Frequency	Fh: 31–106KHz, Fv: 56–120Hz
COMPATIBILITY	PC		Analog: VGA to UXGA
	Mac®		Analog: Up to WSXGA+
CONNECTOR	RGB Input		15-pin mini D-sub
	RGB Output		15-pin mini D-sub
	RGB-BNC		BNC-5 (x 1 set)
	Digital Input		HDMI 1.3
	Component		RCA (x3)
	Composite Input		RCA jack
	S-Video Input		4-pin mini-Din
	USB		Type A: for PC-less slide show presentation - support JPEG,
			BMP, TIFF, PNG, GIF from USB flash drive.
			Type B: for direct presentation from PC (not Mac compatible),
			Mouse Control
	Audio Input		3.5mm mini jack (x2), RCA (L/R) x1 Pair
	Audio Output		RCA (L/R) x1 Pair
	Mic In		3.5mm mini jack (x1)
	Control		RS-232 (DB-9), 3.5mm mini jack (wired remote)
	Network		RJ45
AUDIO	Speaker		8W (x2)
POWER	Voltage		100~240 VAC (Auto Switching), 50/60Hz (universal)
	Consumption		420W (typ) / <0.5W (stand-by mode)
CONTROLS	Basic		STANDBY/ON, INPUT, MENU
	OSD
	PICTURE Menu: Brightness, Contrast, Gamma, Color Temp, Color, Tint, Sharpness,
	Active IRIS, My Memory
	IMAGE Menu: Aspect, Over Scan, V position, H position, H Phase, H size,
	Auto Adjust Execute
	INPUT Menu: Progressive, Video NR, Color Space, Component, Video Format,
	HDMI Format, HDMI Range, Computer IN, Frame Lock, Resolution
	SETUP Menu: Auto Keystone, Keystone H/V, Perfect Fit, Auto ECO Mode, ECO Mode,
	Mirror, Standby mode, Monitor out
	AUDIO Menu: Volume, Speaker, Audio Source, HDMI Audio, MIC Level, MIC Volume
	SCREEN Menu: Language, Menu Position, Blank, Start up, Myscreen, Myscreen Lock,
	Message, Source Name, Template, CC
	OPTION Menu: Auto Search, Auto Keystone, Direct Power ON, Auto Power OFF,
	USB Type B, Lamp Time, Filter Time, My Button, My Source, Service (Fan Speed, Auto
	Adjust, Ghost, Filter Message, Key Lock, Remote FREQ, Communication,
	Information, Factory Reset)
	NETWORK Menu: Setup, Projector Name, My Image, AMX D.D,
	Presentation, Information, Service
	SECURITY Menu: Security password change, Myscreen password, PIN Lock, Transition
		Detector, My Text Password, My Text Display, My Text Writing, Security Indicator, Stack Lock
OPERATING	Temperature		41ºF–95ºF (5ºC–35ºC)
CONDITIONS	Humidity		10%–85% (non-condensing)
	Altitude		0 to 6,000 ft (1,800m), operational up to 10,000 ft (3048m)
			at reduced reliability and performance
NOISE LEVEL	Normal / Eco-mode 36dB / 29dB
DIMENSIONS	Physical		15.8 × 4 × 12.5 (in) / 401 × 103 × 318 (mm)
(W x H x D)	Packaging		22 × 7.7 × 16.5 (in) / 560 × 197 × 420 (mm)
WEIGHT	Net		10.4 lb. (4.7 kg)
	Gross		17.8 lb. (8.1 kg)
REGULATIONS			UL60950-1/C-UL, FCC part 15 Class B, CE approval:
			EN61000-3-2, EN61000-3-3, EN55022, EN55024 (EMC
			directive), EN60950-1 (low voltage directive); WEEE, RoHS
			C-Tick (Australia/New Zealand), NOM, ErP
PACKAGE CONTENTS			ViewSonic Projector, power cable, RGB cable,
			remote control with batteries, Lens Cap, Quick Start Guide,
			ViewSonic Wizard CD (with User Guide)
WARRANTY			3-year limited warranty on parts, 1-year limited warranty
			on lamp, 1st year Express Exchange® service.

Sales: (888) 881-8781 . SalesInfo@ViewSonic.com . ViewSonic.com

*Running eco-mode exclusively can extend lamp life. See ViewSonic.com for full Express Exchange details. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2010 ViewSonic Corporation. All rights reserved [15424-00B-01/10] PRO9500
