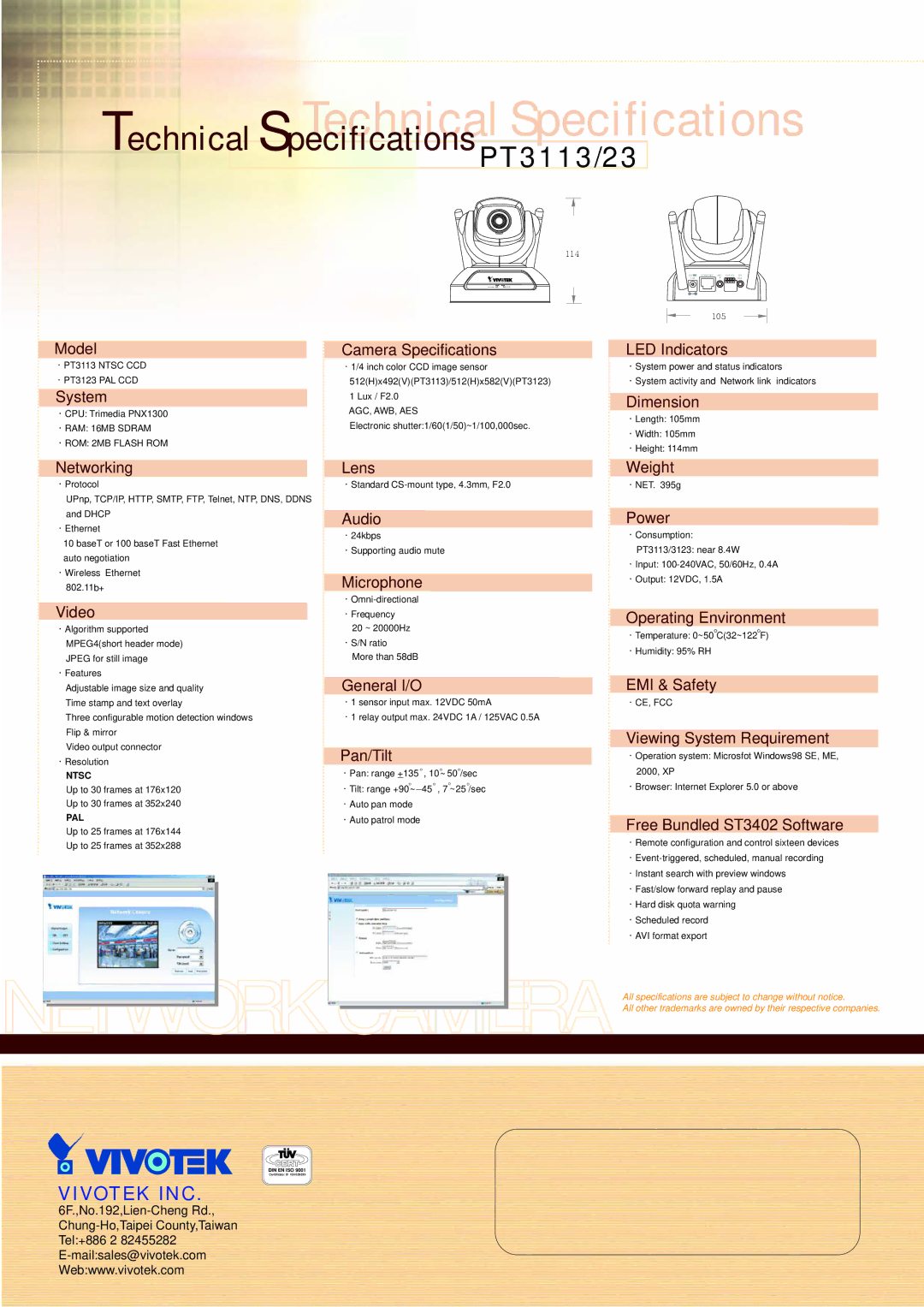

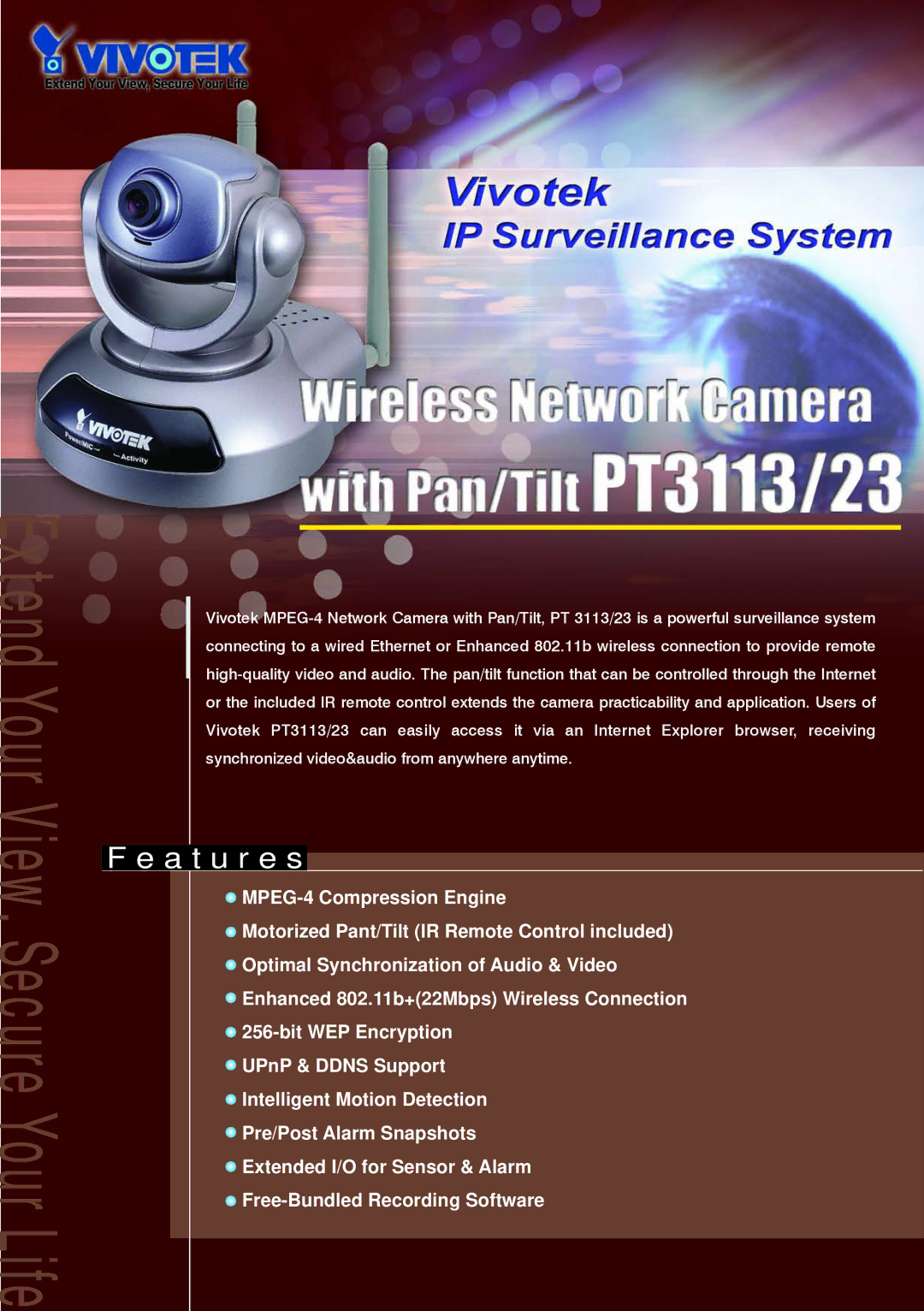

T S Technical Specifications

echnical pecifications PT3113/23

114

12V

E THE R NE T MIC E XT.I/O

AV

1.5A











OUT















105

Model

PT3113 NTSC CCD PT3123 PAL CCD

System

CPU: Trimedia PNX1300

RAM: 16MB SDRAM

ROM: 2MB FLASH ROM

Networking

Protocol

UPnp, TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS, DDNS and DHCP

Ethernet

10 baseT or 100 baseT Fast Ethernet auto negotiation

Wireless Ethernet 802.11b+

Video

Algorithm supported MPEG4(short header mode) JPEG for still image

Features

Adjustable image size and quality Time stamp and text overlay

Three configurable motion detection windows Flip & mirror

Video output connector Resolution

NTSC

Up to 30 frames at 176x120

Up to 30 frames at 352x240

PAL

Up to 25 frames at 176x144

Up to 25 frames at 352x288

Camera Specifications

1/4 inch color CCD image sensor 512(H)x492(V)(PT3113)/512(H)x582(V)(PT3123) 1 Lux / F2.0

AGC, AWB, AES

Electronic shutter:1/60(1/50)~1/100,000sec.

Lens

Standard CS-mount type, 4.3mm, F2.0

Audio

24kbps

Supporting audio mute

Microphone

Omni-directional Frequency

20 ~ 20000Hz S/N ratio

More than 58dB

General I/O

1 sensor input max. 12VDC 50mA

1 relay output max. 24VDC 1A / 125VAC 0.5A

Pan/Tilt

。 。 。

Pan: range +135 , 10~ 50 /sec

_ 。 。 。

Tilt: range +90~ 45 , 7 ~25 /sec Auto pan mode

Auto patrol mode

LED Indicators

System power and status indicators

System activity and Network link indicators

Dimension

Length: 105mm

Width: 105mm

Height: 114mm

Weight

NET. 395g

Power

Consumption: PT3113/3123: near 8.4W

Input: 100-240VAC, 50/60Hz, 0.4A

Output: 12VDC, 1.5A

Operating Environment

。 。

Temperature: 0~50 C(32~122 F)

Humidity: 95% RH

EMI & Safety

CE, FCC

Viewing System Requirement

Operation system: Microsfot Windows98 SE, ME, 2000, XP

Browser: Internet Explorer 5.0 or above

Free Bundled ST3402 Software

Remote configuration and control sixteen devices Event-triggered, scheduled, manual recording Instant search with preview windows

Fast/slow forward replay and pause Hard disk quota warning

Scheduled record AVI format export

NETWORK CAMERA

All specifications are subject to change without notice.

All other trademarks are owned by their respective companies.

DIN EN ISO 9001

Certificate: 01 100 029539

VIVOTEK INC.

6F.,No.192,Lien-Cheng Rd.,

Chung-Ho,Taipei County,Taiwan

Tel:+886 2 82455282

E-mail:sales@vivotek.com

Web:www.vivotek.com
