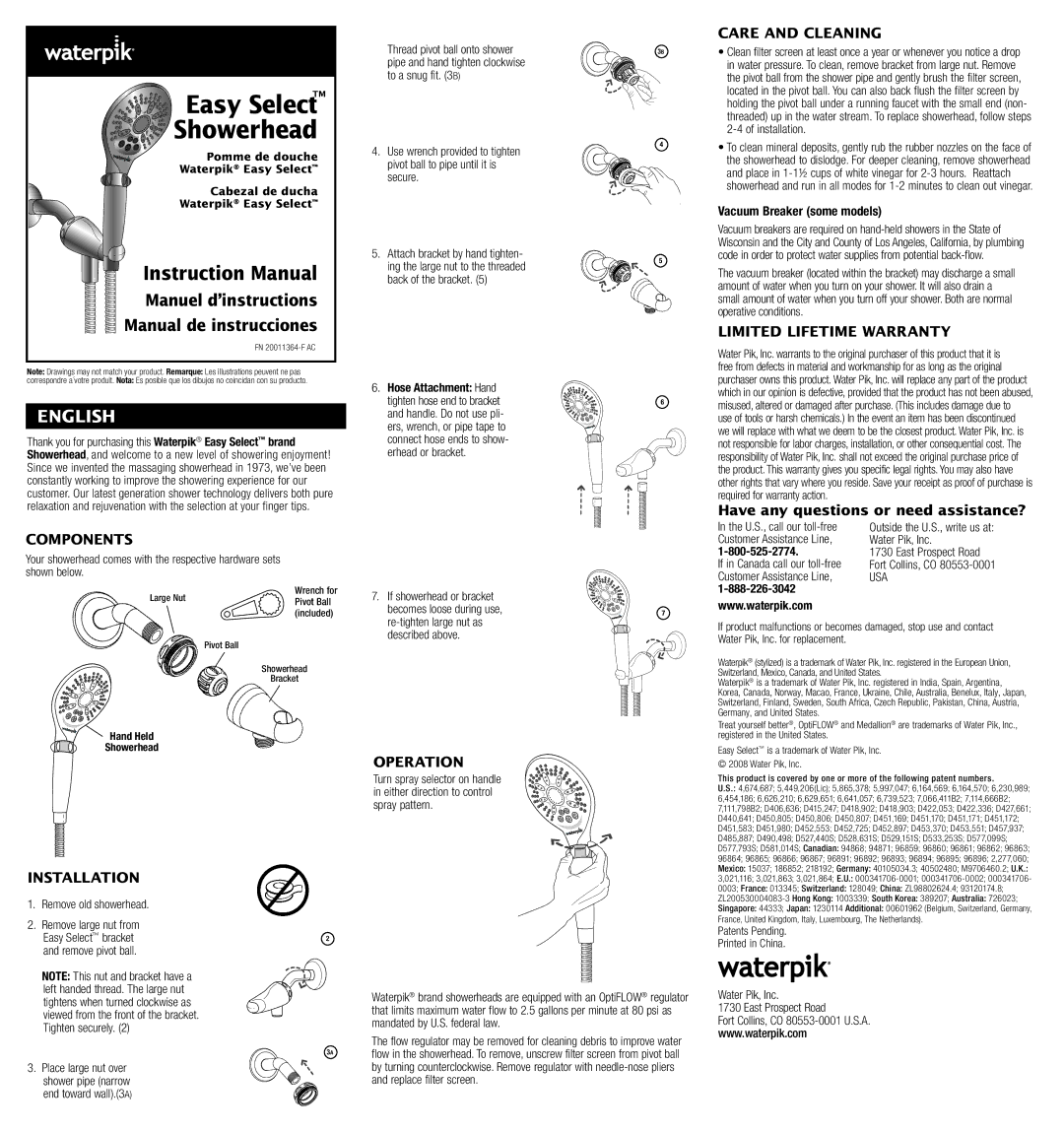

Easy Select™ |
Showerhead |

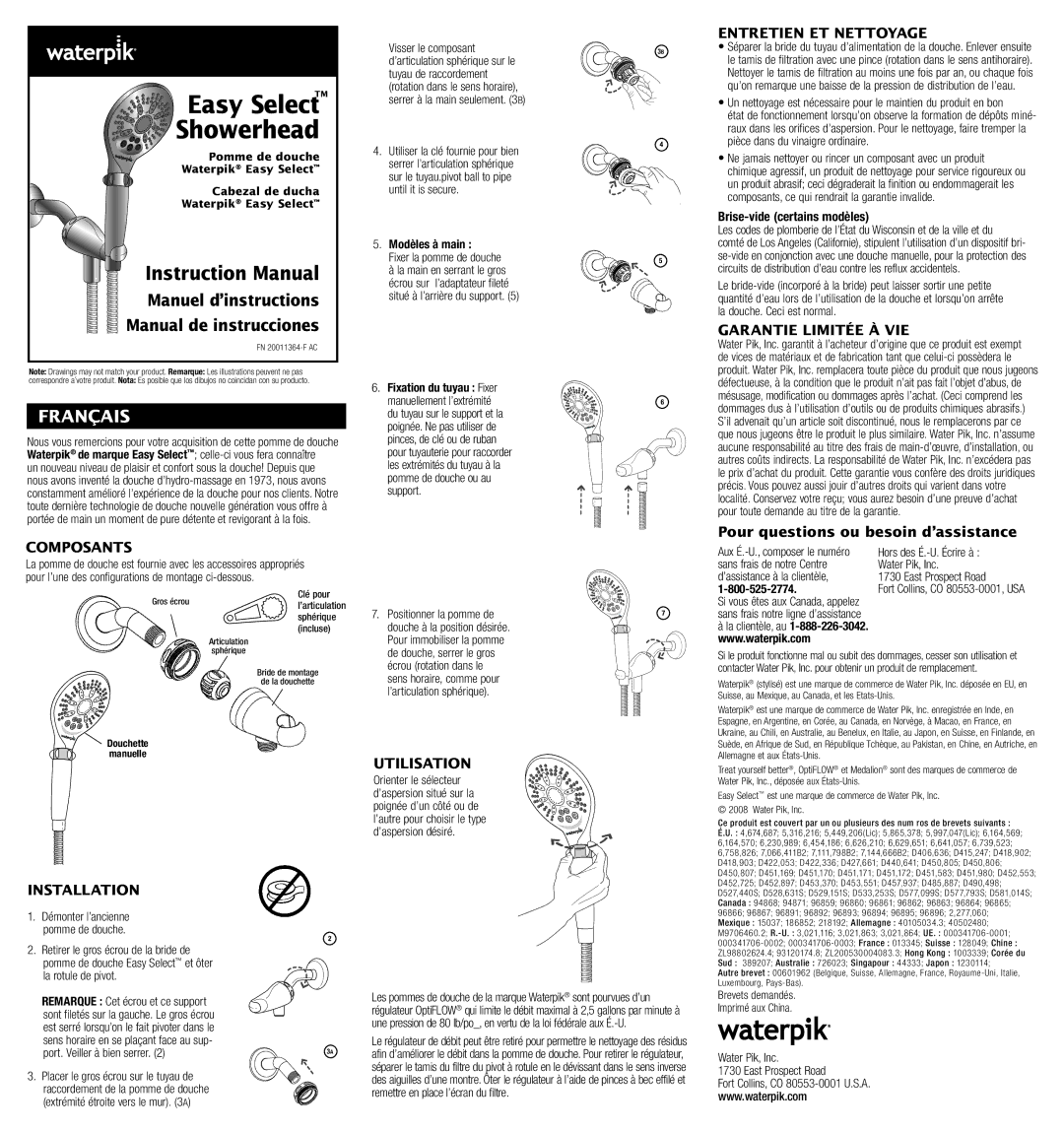

Pomme de douche |
Waterpik® Easy Select™ |

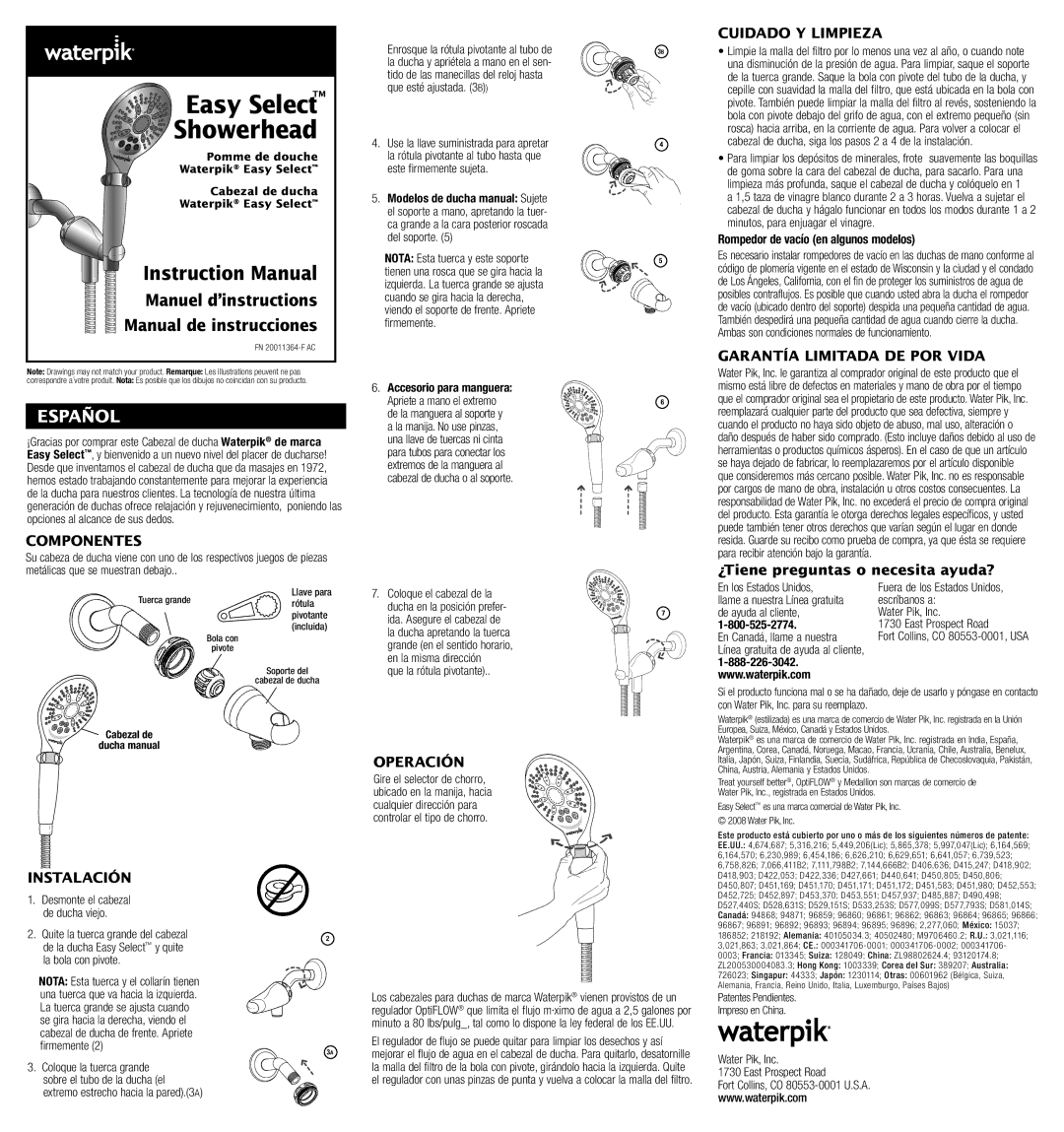

Cabezal de ducha |
Waterpik® Easy Select™ |
Instruction Manual |
Manuel d’instructions |
Manual de instrucciones |
FN |
Note: Drawings may not match your product. Remarque: Les illustrations peuvent ne pas
correspondre a´votre produit. Nota: Es posible que los dibujos no coincidan con su producto.
ENGLISH
Thank you for purchasing this Waterpik® Easy Select™ brand Showerhead, and welcome to a new level of showering enjoyment! Since we invented the massaging showerhead in 1973, we’ve been constantly working to improve the showering experience for our customer. Our latest generation shower technology delivers both pure relaxation and rejuvenation with the selection at your finger tips.
COMPONENTSYour showerhead comes with the respective hardware sets shown below.
Wrench for
Large NutPivot Ball (included)
Pivot Ball
Showerhead
Bracket
Hand Held
Showerhead
INSTALLATION1.Remove old showerhead.
2.Remove large nut from
Easy Select™ bracket | 2 |
and remove pivot ball. |
|
NOTE: This nut and bracket have a left handed thread. The large nut tightens when turned clockwise as viewed from the front of the bracket. Tighten securely. (2)
3A
3. Place large nut over shower pipe (narrow end toward wall).(3A)
Thread pivot ball onto shower | 3B |
pipe and hand tighten clockwise to a snug fit. (3B)
4. | Use wrench provided to tighten | 4 |
| ||
| pivot ball to pipe until it is |
|
| secure. |
|
5. | Attach bracket by hand tighten- | 5 |
| ing the large nut to the threaded | |
|
| |
| back of the bracket. (5) |
|
6. Hose Attachment: Hand |
|
tighten hose end to bracket | 6 |
and handle. Do not use pli- ers, wrench, or pipe tape to connect hose ends to show- erhead or bracket.
7. If showerhead or bracket |
|
becomes loose during use, | 7 |
|
described above.
OPERATIONTurn spray selector on handle in either direction to control spray pattern.
Waterpik® brand showerheads are equipped with an OptiFLOW® regulator that limits maximum water flow to 2.5 gallons per minute at 80 psi as mandated by U.S. federal law.
The flow regulator may be removed for cleaning debris to improve water flow in the showerhead. To remove, unscrew filter screen from pivot ball by turning counterclockwise. Remove regulator with
•Clean filter screen at least once a year or whenever you notice a drop in water pressure. To clean, remove bracket from large nut. Remove the pivot ball from the shower pipe and gently brush the filter screen, located in the pivot ball. You can also back flush the filter screen by holding the pivot ball under a running faucet with the small end (non- threaded) up in the water stream. To replace showerhead, follow steps
•To clean mineral deposits, gently rub the rubber nozzles on the face of the showerhead to dislodge. For deeper cleaning, remove showerhead and place in
Vacuum breakers are required on
The vacuum breaker (located within the bracket) may discharge a small amount of water when you turn on your shower. It will also drain a small amount of water when you turn off your shower. Both are normal operative conditions.
LIMITED LIFETIME WARRANTYWater Pik, Inc. warrants to the original purchaser of this product that it is free from defects in material and workmanship for as long as the original purchaser owns this product. Water Pik, Inc. will replace any part of the product which in our opinion is defective, provided that the product has not been abused, misused, altered or damaged after purchase. (This includes damage due to use of tools or harsh chemicals.) In the event an item has been discontinued we will replace with what we deem to be the closest product. Water Pik, Inc. is not responsible for labor charges, installation, or other consequential cost. The responsibility of Water Pik, Inc. shall not exceed the original purchase price of the product. This warranty gives you specific legal rights. You may also have other rights that vary where you reside. Save your receipt as proof of purchase is required for warranty action.
Have any questions or need assistance?In the U.S., call our | Outside the U.S., write us at: |
Customer Assistance Line, | Water Pik, Inc. |
1730 East Prospect Road | |
If in Canada call our | Fort Collins, CO |
Customer Assistance Line, | USA |
| |
www.waterpik.com |
|
If product malfunctions or becomes damaged, stop use and contact Water Pik, Inc. for replacement.
