ROLLING SERVICE DOORS

800C SERIES

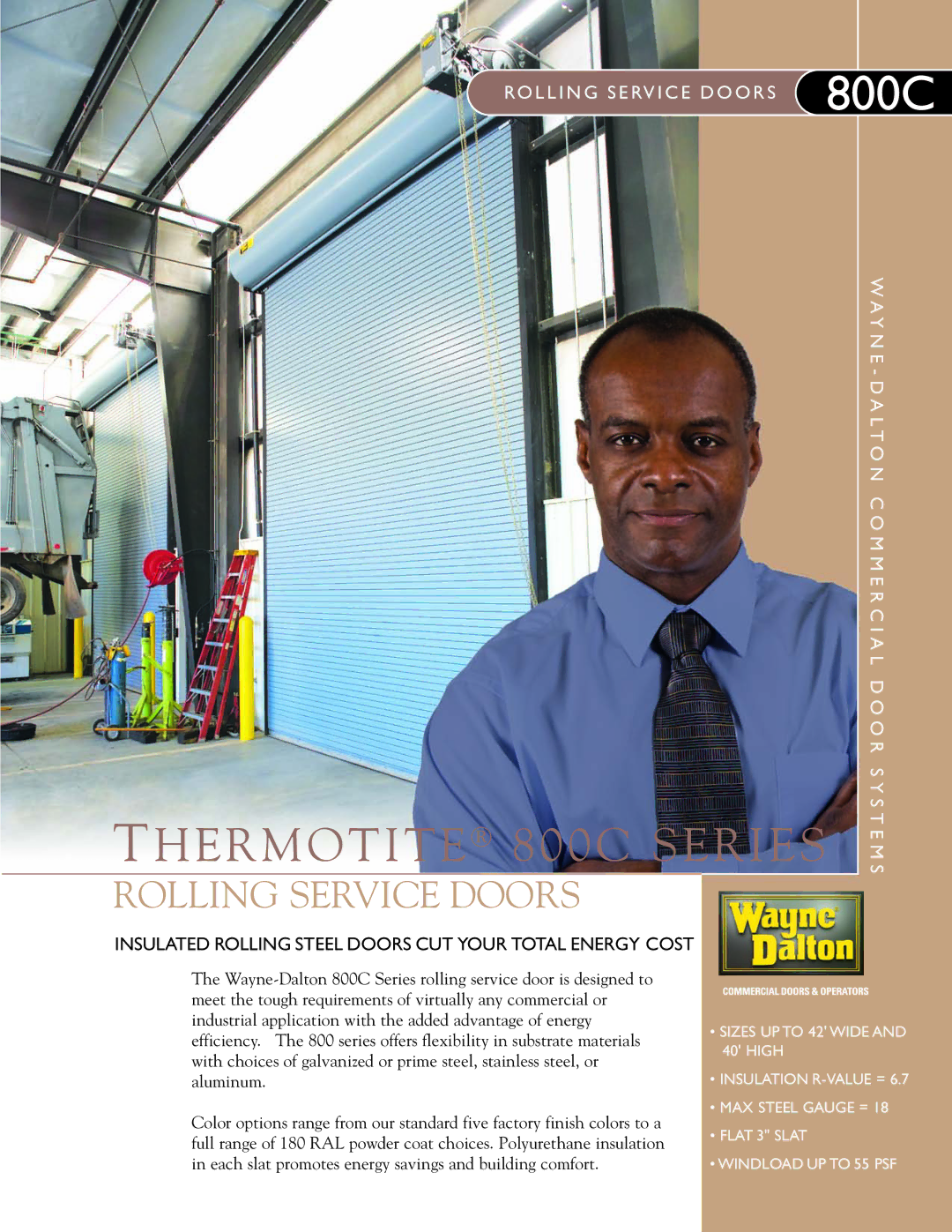

Popular in both interior and exterior applications, the Wayne-Dalton 800C Series insulated rolling service door features a galvanized, pre-painted curtain of minimum 22-gauge steel. 800C Series doors are wind load rated at 20 PSF. An optional wind load rating of up to 55 PSF is available to cover your Florida and Dade County windload requirements.

Materials & Construction Wayne-Dalton’s 800C Series rolling doors are composed of flat slats that provide a natural water-shed, helping to reduce corrosion.The slats are designed with free-acting interlocking joints that permit easy articulation when the door coils. The 800C Series features a strong double-angle bottom bar that reinforces the lower edge of the curtain against wind pressure and permits varied lock, astragal, and safety edge options. This bot- tom bar is designed for easy installation and does not require fasteners protruding into the guide openings, so the bottom bar does not interfere with door operation.

Counterbalance assembly consists of a spring barrel which serves as load-carrying beam. It encases the counterbalance mechanism and provides the axis around which the curtain coils. (Deflection is limited to 0.033" per lineal foot of span.) If required, barrel rings of malleable iron or stamped steel may be provided to assure proper counterbalance. Oil-tempered, torsion-type counterbalance springs are wound from heat-treated steel, providing accuracy in balancing the door. Barrel plugs connect ends of springs to barrel and tension rod. Tension rod of steel shafting holds fixed ends of springs and carries torsion load of spring counterbalance.

Spring tension adjusting wheel is normally mounted outside the bracket on end of tension rod. Inside adjusting wheel for tight side-room applications is available in limited sizes.

The hood cover encloses the curtain coil and counterbalance mechanism. Slat hoods are available on blue, brown, beige, and white doors.

Available Options

• Vision Slats/Panels

• Safety Edges

• Drop Stop Device

• Exhaust Ports

• Sloping Bottom Bars

• Powder Coated

• Motor Operators

• Cable Reels

• Mullions

• Thru-Wall Operation

• Stainless Steel orAluminum Finishes

Slat Profile

Standard Weatherseal Applications

To close space between curtain

Bottom bar with weatherseal

To reduce air infiltration at top of

and guides at jambs, flexible strip on



door, hood baffle attached to hood

guides contacts flat surface of curtain.



extends full width of door. Optional





lintel weatherstripping will further





reduce air passage when attached to the





header.

www.wayne-dalton.com/commercial

Page 1 Page 3

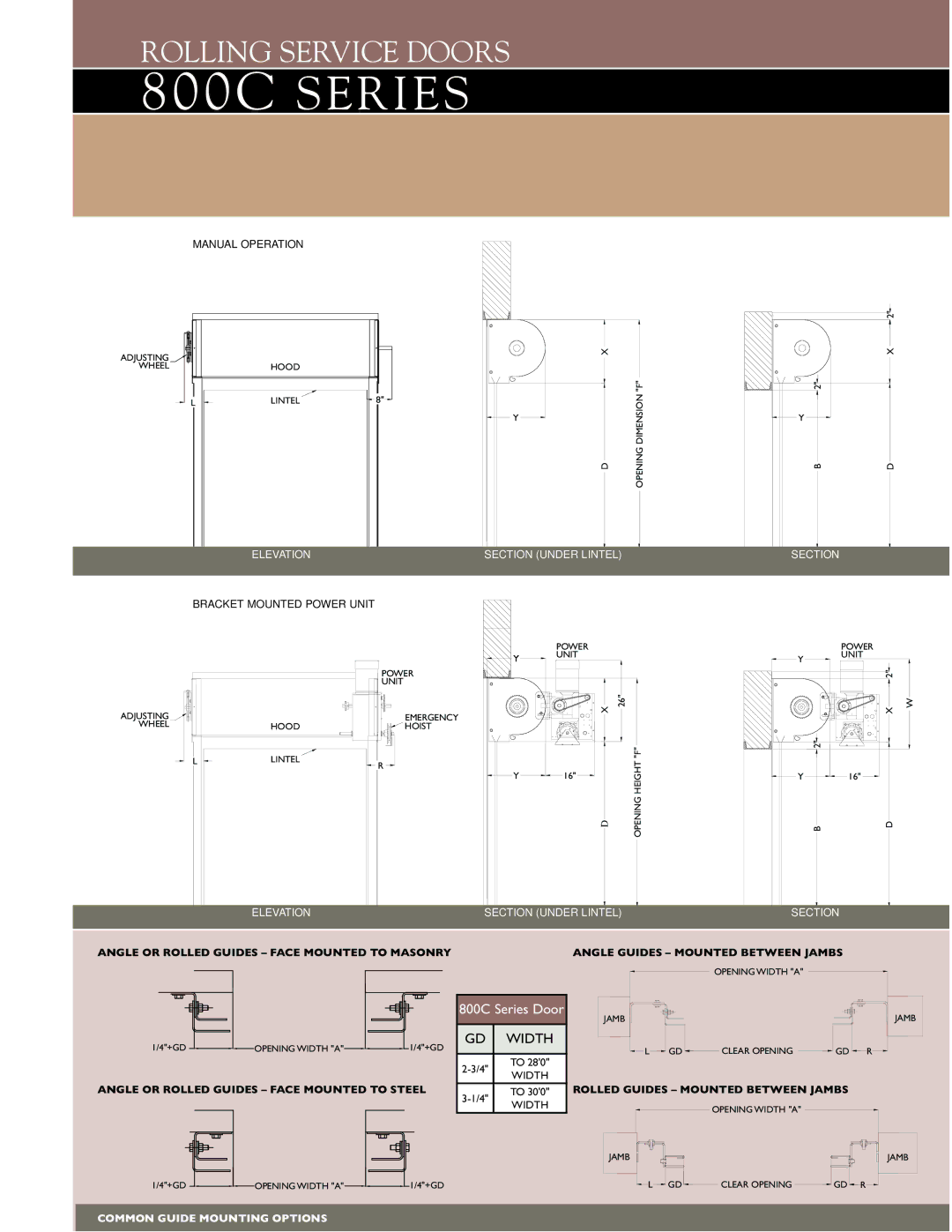

Page 2
Image 2
Wayne-Dalton 800C manual Available Options, Slat Profile Standard Weatherseal Applications

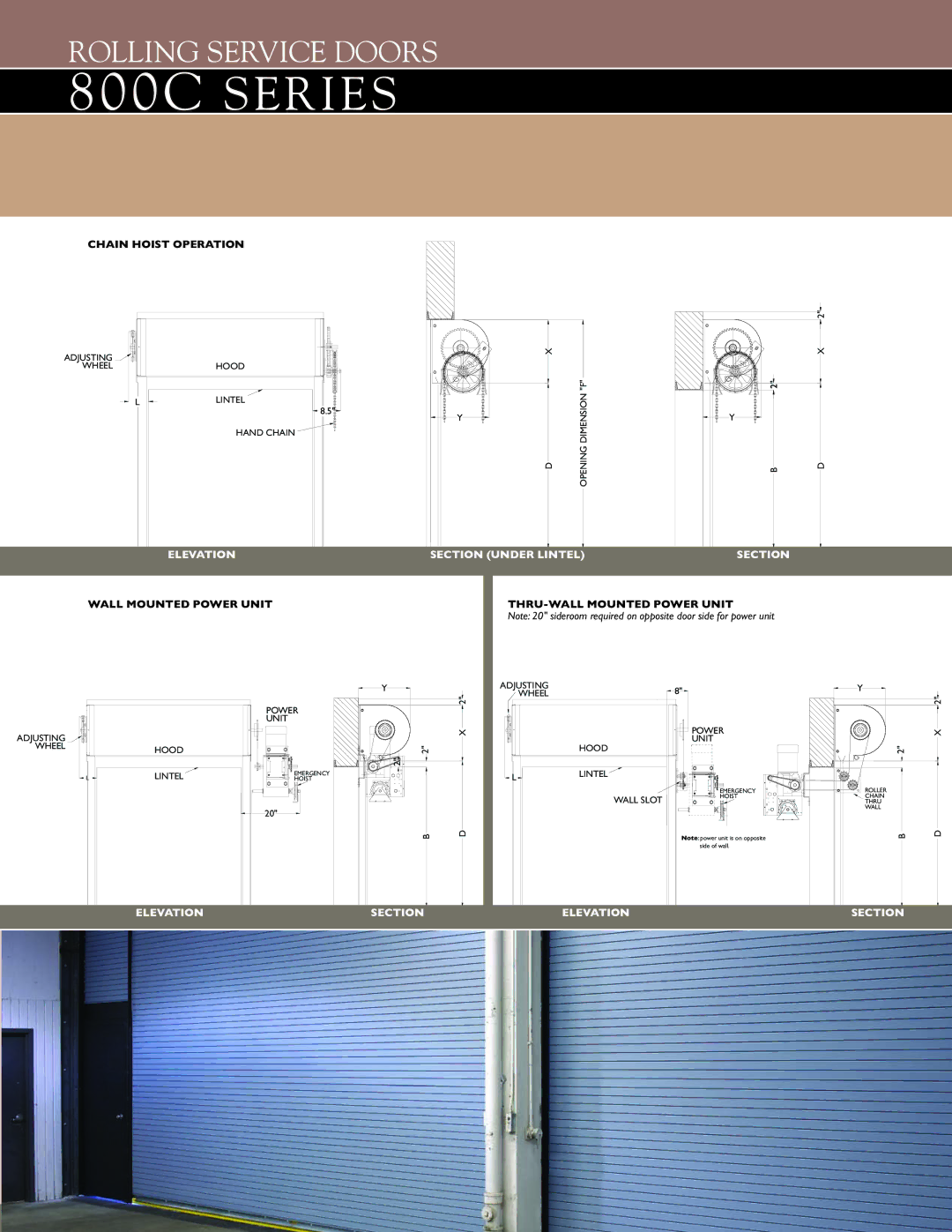

Page 1 Page 3

800C specifications

Wayne-Dalton's 800C garage door series is a hallmark of quality and innovation in the residential garage door market. Designed to cater to a wide array of homeowner styles and preferences, the 800C series stands out with its impressive blend of aesthetics, functionality, and technology.

One of the key features of the Wayne-Dalton 800C garage doors is their construction. Made from high-quality, durable steel, these doors offer exceptional strength and reliability. With multiple gauge options available, homeowners can choose the level of durability that best fits their needs. The 800C doors are also insulated with polyurethane foam, which not only enhances their strength but also provides excellent energy efficiency. This insulation helps regulate the temperature inside the garage, making it a more comfortable space and reducing energy costs.

In terms of design, the Wayne-Dalton 800C series offers customizable options to match any home’s exterior. With a variety of styles, colors, and finishes, homeowners can select the perfect look to complement their property. The doors are available in multiple panel designs, further enhancing their visual appeal. Wayne-Dalton’s unique manufacturing process ensures that the paint finish is not only long-lasting but also resistant to fading, making maintenance easier and prolonging the door’s aesthetic appeal.

The technology integrated into the 800C series is another standout feature. These doors come equipped with Wayne-Dalton’s patented TorqueMaster® Plus counterbalance system, which utilizes a unique spring design for optimal performance and safety. This system is engineered to minimize stress on the door and extend its lifespan while also providing a quieter operation during opening and closing.

Additionally, the Wayne-Dalton 800C series is designed with safety in mind. The doors feature pinch-resistant technology that protects fingers from getting caught in the door's joints, making it a safer choice for families with children and pets. Moreover, the built-in safety features comply with the latest safety standards, providing homeowners with peace of mind.

To sum it up, the Wayne-Dalton 800C garage door series combines robust construction, elegant design, advanced technology, and safety features to provide an exceptional product for homeowners. Whether for functional use, energy savings, or aesthetic enhancement, the 800C series is a wise investment for any modern home.
