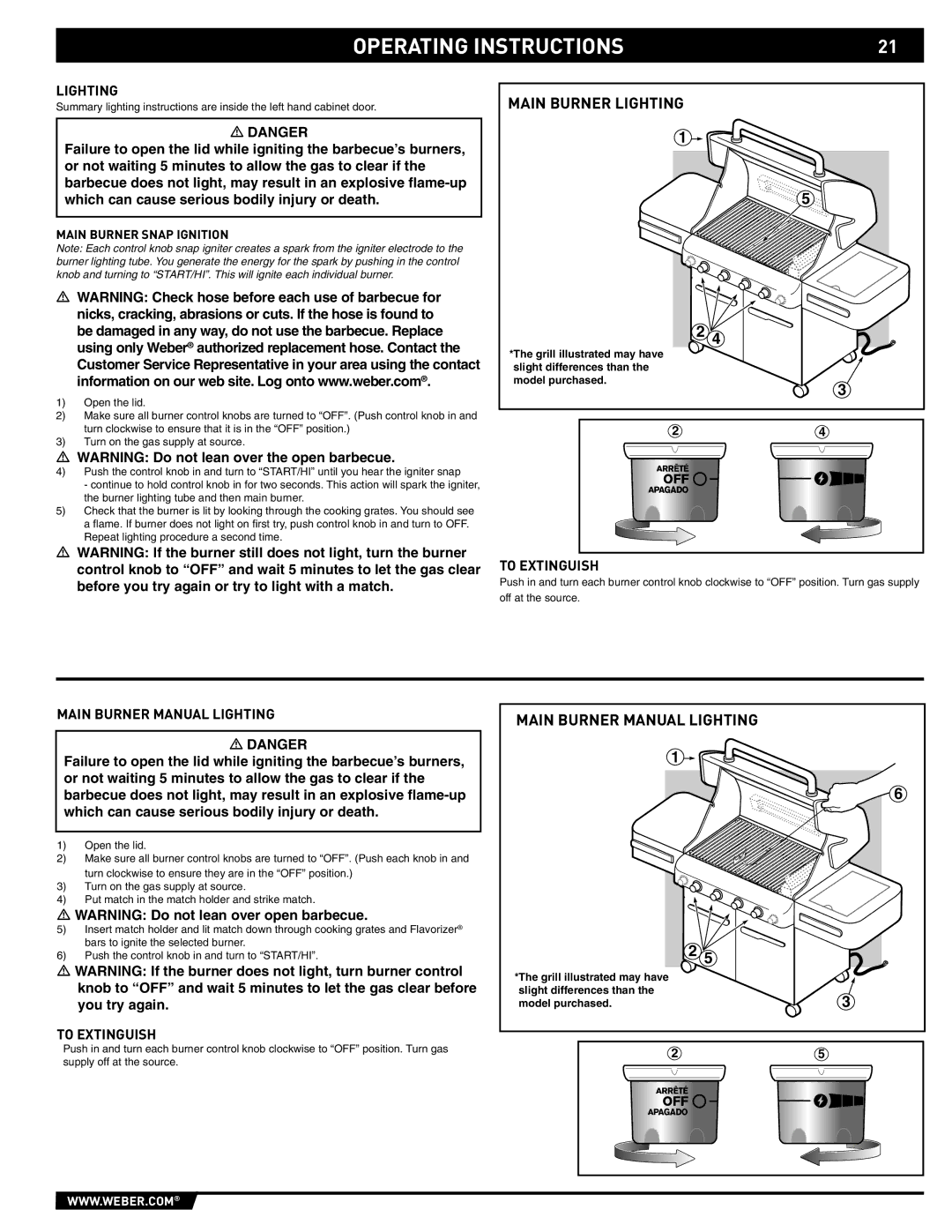

OPERATING INSTRUCTIONS 21

LIGHTING

Summary lighting instructions are inside the left hand cabinet door.

DANGER

Failure to open the lid while igniting the barbecue’s burners, or not waiting 5 minutes to allow the gas to clear if the barbecue does not light, may result in an explosive flame-up which can cause serious bodily injury or death.

MAIN BURNER SNAP IGNITION

Note: Each control knob snap igniter creates a spark from the igniter electrode to the burner lighting tube. You generate the energy for the spark by pushing in the control knob and turning to “START/HI”. This will ignite each individual burner.

WARNING: Check hose before each use of barbecue for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the barbecue. Replace using only Weber® authorized replacement hose. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com®.

1)Open the lid.

2)Make sure all burner control knobs are turned to “OFF”. (Push control knob in and turn clockwise to ensure that it is in the “OFF” position.)

3)Turn on the gas supply at source.

WARNING: Do not lean over the open barbecue.

4)Push the control knob in and turn to “START/HI” until you hear the igniter snap

- continue to hold control knob in for two seconds. This action will spark the igniter, the burner lighting tube and then main burner.

5)Check that the burner is lit by looking through the cooking grates. You should see a fl ame. If burner does not light on fi rst try, push control knob in and turn to OFF. Repeat lighting procedure a second time.

WARNING: If the burner still does not light, turn the burner control knob to “OFF” and wait 5 minutes to let the gas clear before you try again or try to light with a match.

MAIN BURNER LIGHTING

1

5

2 4

*The grill illustrated may have slight differences than the model purchased.

3

24

TO EXTINGUISH

Push in and turn each burner control knob clockwise to “OFF” position. Turn gas supply off at the source.

MAIN BURNER MANUAL LIGHTING

DANGER

Failure to open the lid while igniting the barbecue’s burners, or not waiting 5 minutes to allow the gas to clear if the barbecue does not light, may result in an explosive flame-up which can cause serious bodily injury or death.

1)Open the lid.

2)Make sure all burner control knobs are turned to “OFF”. (Push each knob in and turn clockwise to ensure they are in the “OFF” position.)

3)Turn on the gas supply at source.

4)Put match in the match holder and strike match.

WARNING: Do not lean over open barbecue.

5)Insert match holder and lit match down through cooking grates and Flavorizer® bars to ignite the selected burner.

6)Push the control knob in and turn to “START/HI”.

WARNING: If the burner does not light, turn burner control knob to “OFF” and wait 5 minutes to let the gas clear before you try again.

TO EXTINGUISH

Push in and turn each burner control knob clockwise to “OFF” position. Turn gas supply off at the source.

MAIN BURNER MANUAL LIGHTING

1

6

	2 5
*The grill illustrated may have
slight differences than the	3
model purchased.

25
