531 p/n 305812 OpManual for Conveyor Hood

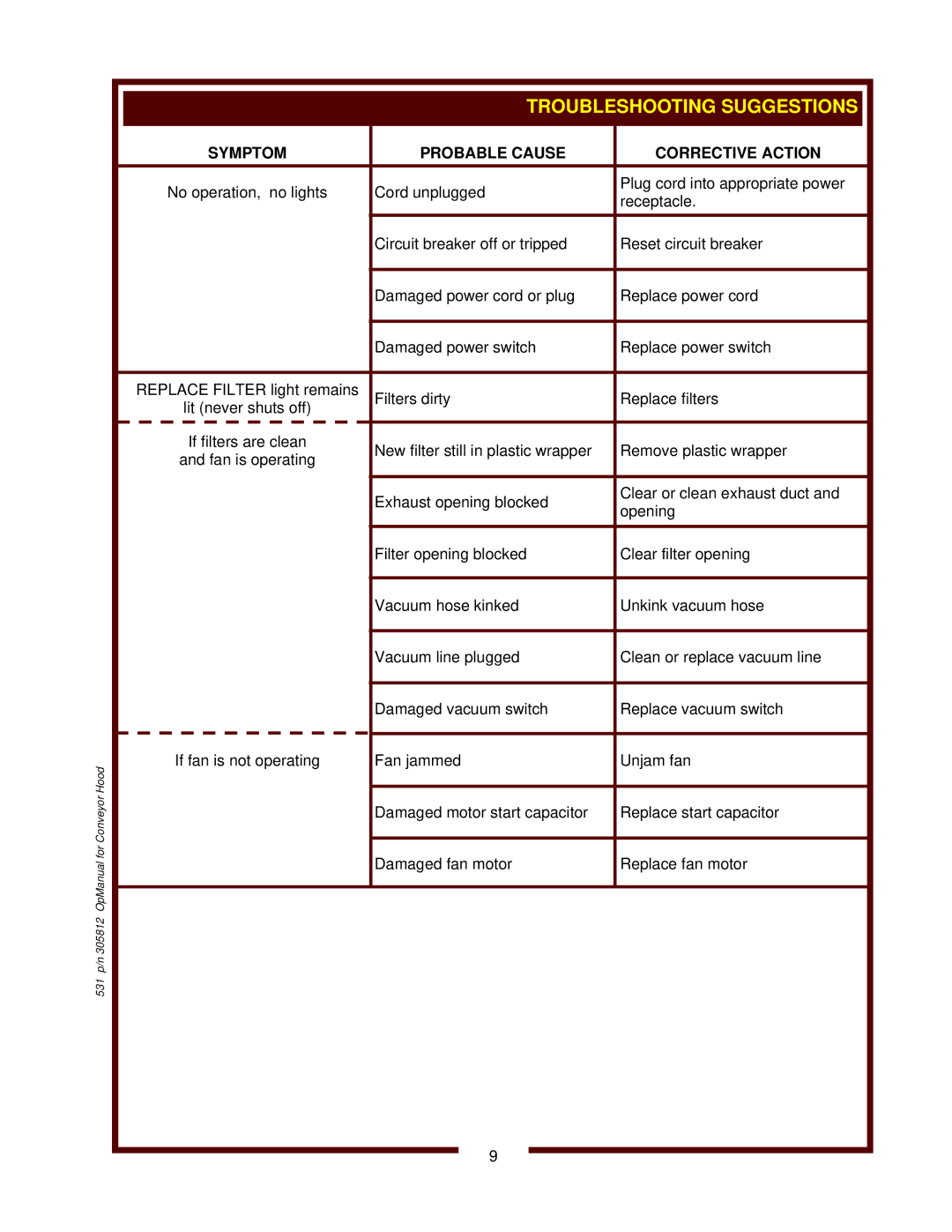

TROUBLESHOOTING SUGGESTIONS
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| SYMPTOM | PROBABLE CAUSE | CORRECTIVE ACTION |
|
| |
|
| No operation, no lights | Cord unplugged | Plug cord into appropriate power |
|
| |
|
| receptacle. |
|
| |||
|
|
|
|
|
|
| |
|
|
|
| Circuit breaker off or tripped | Reset circuit breaker |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Damaged power cord or plug | Replace power cord |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Damaged power switch | Replace power switch |
|
|
|
|
|
|
|
|
|
|
|
| REPLACE FILTER light remains | Filters dirty | Replace filters |
|
| |
|
| lit (never shuts off) |
|
|
|
|
|
|
| If filters are clean | New filter still in plastic wrapper | Remove plastic wrapper |
|
| |
|
| and fan is operating |
|
| |||
|
|
|
|
|
| ||
|
|
|
|
|
|
|
|
|
|
|
| Exhaust opening blocked | Clear or clean exhaust duct and |
|
|
|
|
|
| opening |
|
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
| Filter opening blocked | Clear filter opening |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Vacuum hose kinked | Unkink vacuum hose |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Vacuum line plugged | Clean or replace vacuum line |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Damaged vacuum switch | Replace vacuum switch |
|
|
|
|
|
|
|
|
| |
|
| If fan is not operating | Fan jammed | Unjam fan |
|
| |
|
|
|
|
|
|
|
|
|
|
|
| Damaged motor start capacitor | Replace start capacitor |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Damaged fan motor | Replace fan motor |
|
|
|
|
|
|
|
|
|
|
9
