Before you

a+af+

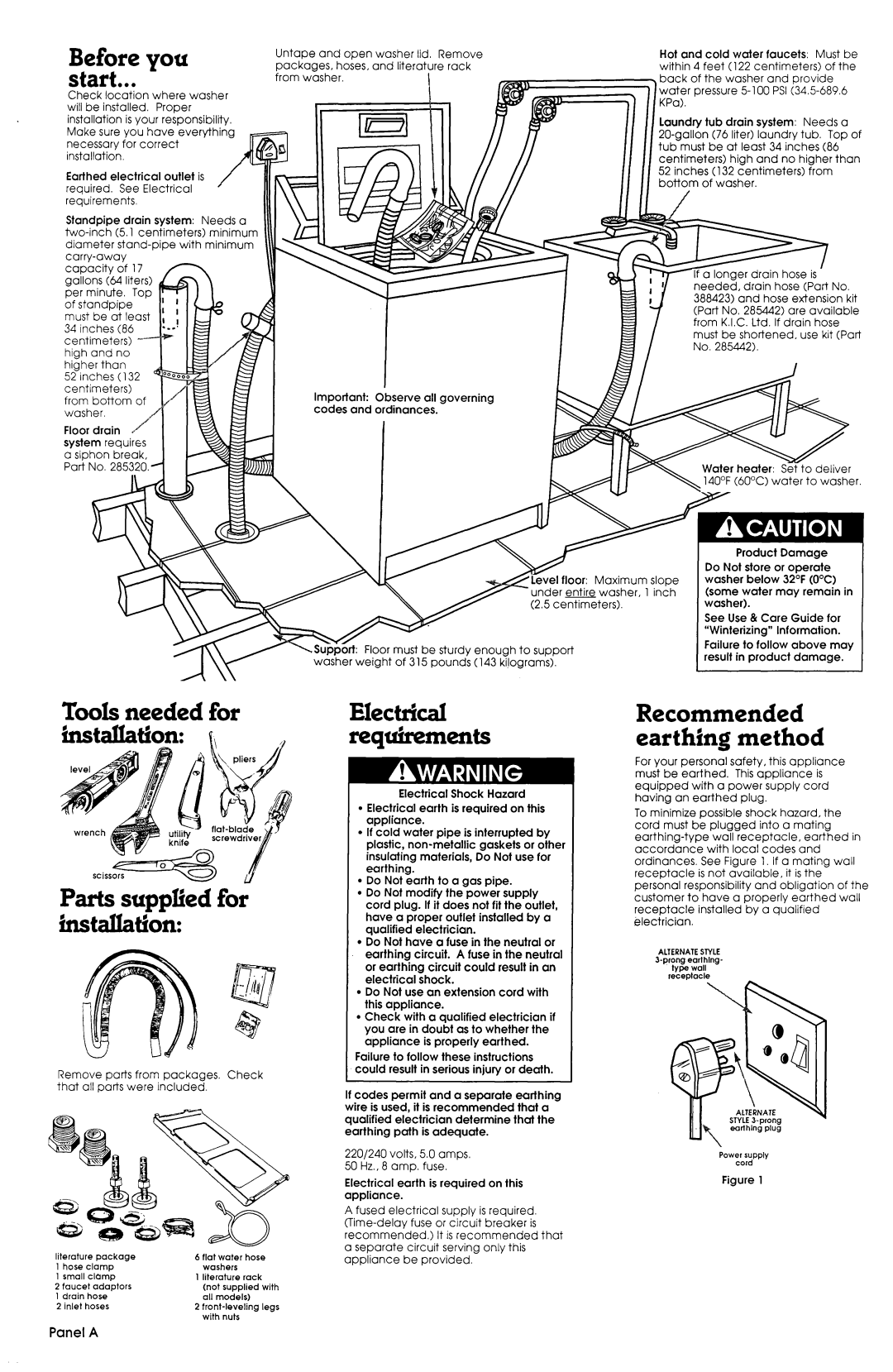

Check location where washer will be installed. Proper installation is your responsibility. Make sure you have everything necessary for correct installation.

Earthed electrical outlet is required. See Electrical requirements,

Standpipe drain system: Needs a two-inch (5.1 centimeters) minimum diameter stand-pipe with minimum carry-away

capacity of 17 gallons (64 liters)

per minute. Top ^ c -I-- A.- !.- -

or sruriuprpe

Untape and open washer lid. Remove packages, hoses, and literature rack from washer.

Hot and cold water faucets: Must be within 4 feet (122 centimeters) of the back of the washer and provide water pressure 5-100 PSI (34.5-689.6

laundry tub drain system: Needs a

20-gallon (76 liter) laundry tub. Top of tub must be at least 34 inches (86

rs) high and no higher than 132 centimeters) from

rain hose (Part No.

must be at least 34 inches (86 centimeters) - high and no higher than

52 inches (132 centimeters) from bottom of washer.

Floor drain system requires a siphon break, Part No. 285320.

A \\

Important: Observe all governing codes and ordinances.

~~Maximum

slope

under entire washer, 1 inch

(2.5

centimeters).

Jab to SUPPOrt

washer weight of 3 15 pounds (143 k$ogramsj.

(Par-t No. 285442) are available from K.I.C. Ltd. If drain hose must be shortened, use kit (Part No. 285442).

washer~“~~~~~~inbelow 32OF(0°C) in

washer).

See Use & Care Guide for “Winterizing” Information.

Failure to follow above may result in product damage.

J

Tools needed for installation: 1,

Parts supplied for installation:

Remove parts from packages, Check that all parts were included.

literature

package

6

flat

water

hose



1 hose

clamp



washers





1 small

clamp

1 literature

rack



2 faucet

adaptors



(not

supplied

with

1 drain

hose



all

models)





2 inlet

hoses

2

front-leveling

legs







with

nuts





Electkal requirements

Electrical Shock Hazard

l Electrical earth is required on this appliance.

l If cold water pipe is interrupted by plastic, non-metallic gaskets or other insulating materials, Do Not use for earthing.

lDo Not earth to a gas pipe.

l Do Not modify the power supply cord plug. If it does not fit the outlet, have a proper outlet installed by a qualified electrician.

lDo Not have a fuse in the neutral or earthing circuit. A fuse in the neutral or earthing circuit could result in an electrical shock.

lDo Not use an extension cord with this appliance.

l Check with a qualified electrician if you are in doubt as to whether the appliance is properly earthed.

Failure to follow these instructions could result in serious injury or death.

If codes permit and a separate earthing wire is used, it is recommended that a qualified electrician determine that the earthing path is adequate.

220/240 volts, 5.0 amps 50 Hz., 8 amp. fuse.

Electrical earth is required on this appliance.

A fused electrical supply is required. (Time-delay fuse or circuit breaker is

recommended.) It is recommended that a separate circuit serving only this appliance be provided.

Recommended earthing method

For your personal safety, this appliance must be earthed. This appliance is equipped with a power supply cord having an earthed plug.

To minimize possible shock hazard, the cord must be plugged into a mating

earthing-type wall receptacle, earthed in

accordance with local codes and ordinances. See Figure 1. If a mating wall receptacle is not available, it is the personal responsibility and obligation of the customer to have a properly earthed wall receptacle installed by a qualified electrician.

ALTERNATESTYLE j-prong earthlng-

type wall receptacle

pow~o;~PP’Y

Figure 1

Panel A

Page 2
Image 2
Whirlpool 3358969 Before you, Parts supplied for installation, Tools needed for installation, Electkal requirements

3358969 specifications
