Whirlpool manual Installation Parts, For Model ACU109PR0, Illus. Part No. No. DESCRIPTION

Models: ACU109PR0

1 7

Page 7

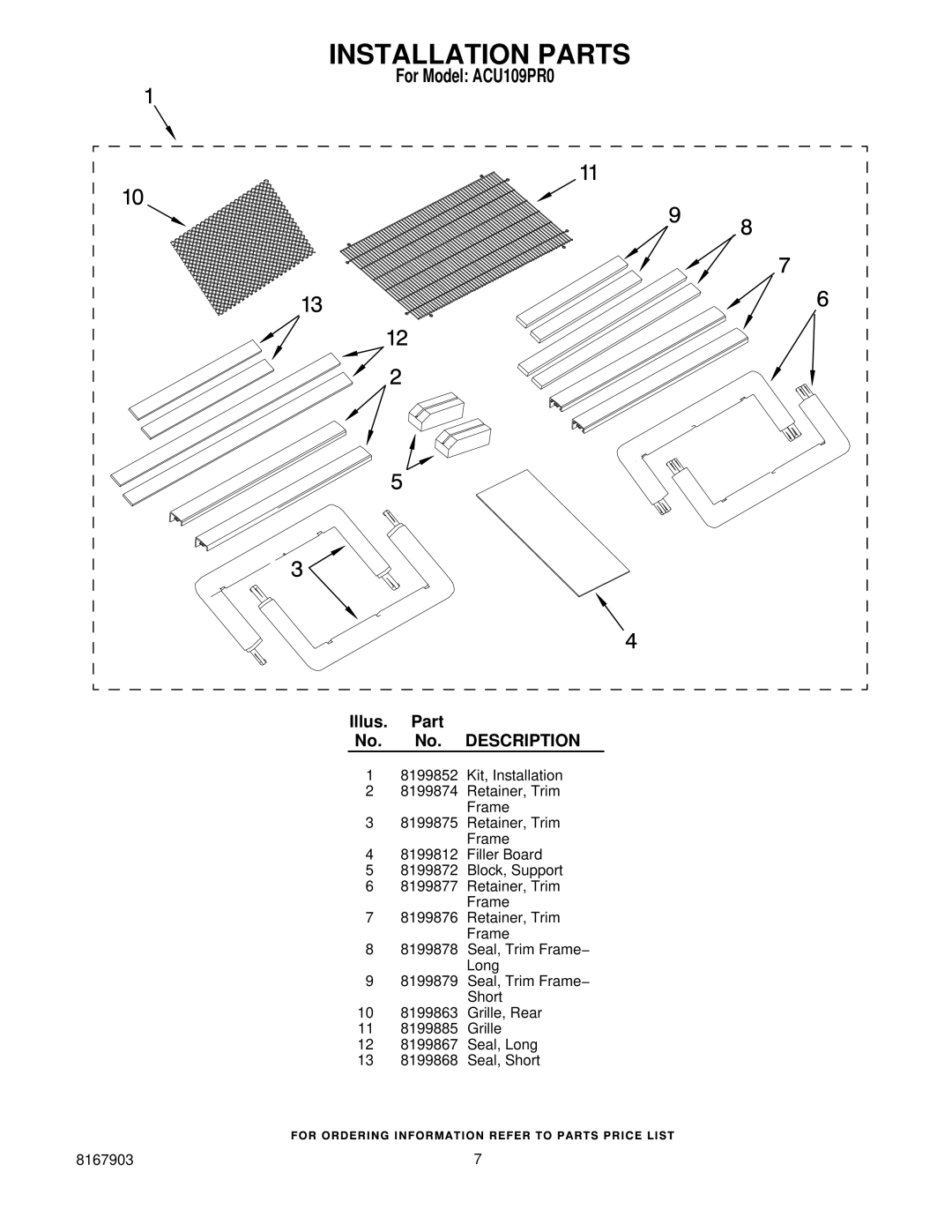

For Model: ACU109PR0

Illus. Part

No. No. DESCRIPTION

18199852 Kit, Installation

28199874 Retainer, Trim Frame

38199875 Retainer, Trim Frame

48199812 Filler Board

58199872 Block, Support

68199877 Retainer, Trim Frame

78199876 Retainer, Trim Frame

88199878 Seal, Trim Frame− Long

98199879 Seal, Trim Frame− Short

108199863 Grille, Rear

118199885 Grille

128199867 Seal, Long

138199868 Seal, Short

8167903

Image 7

Contents

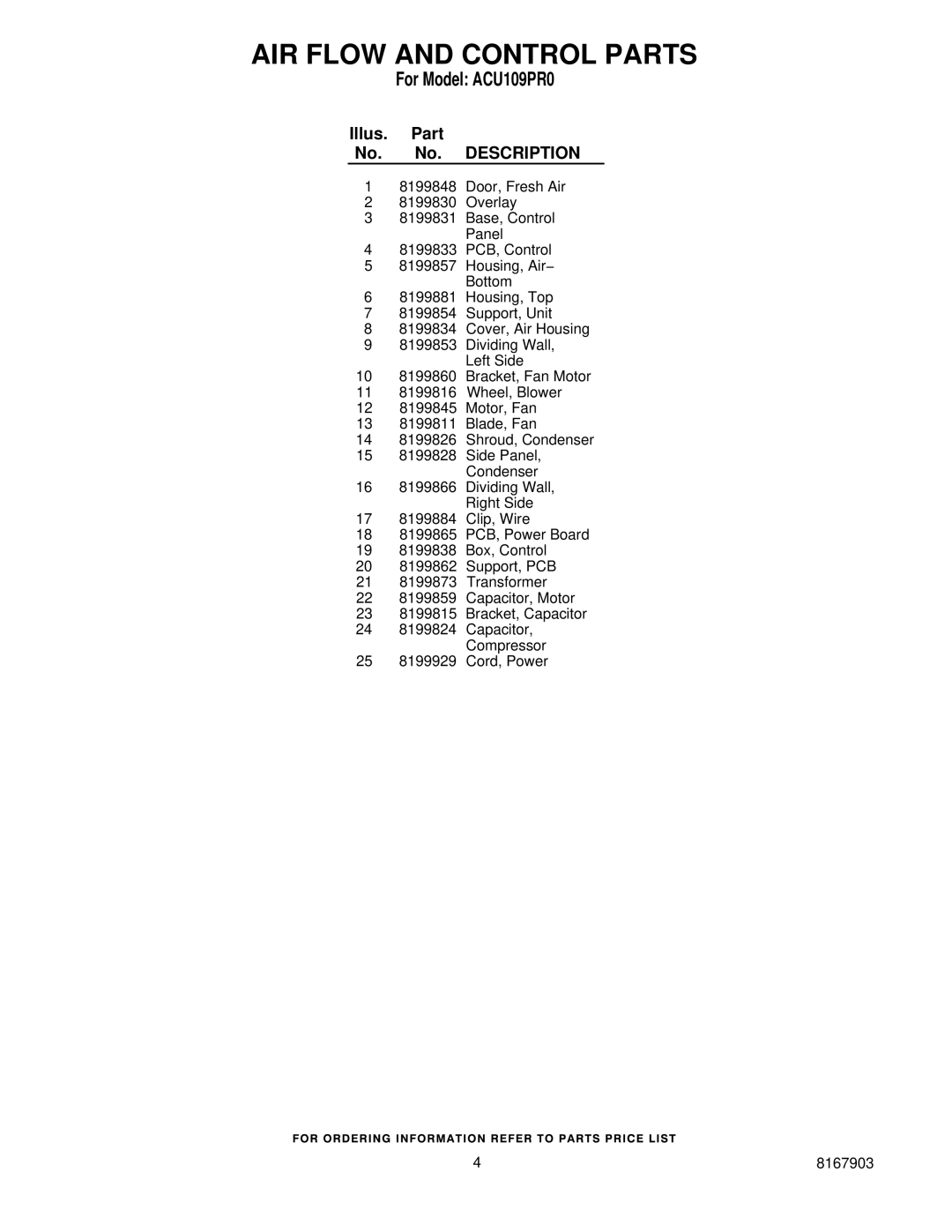

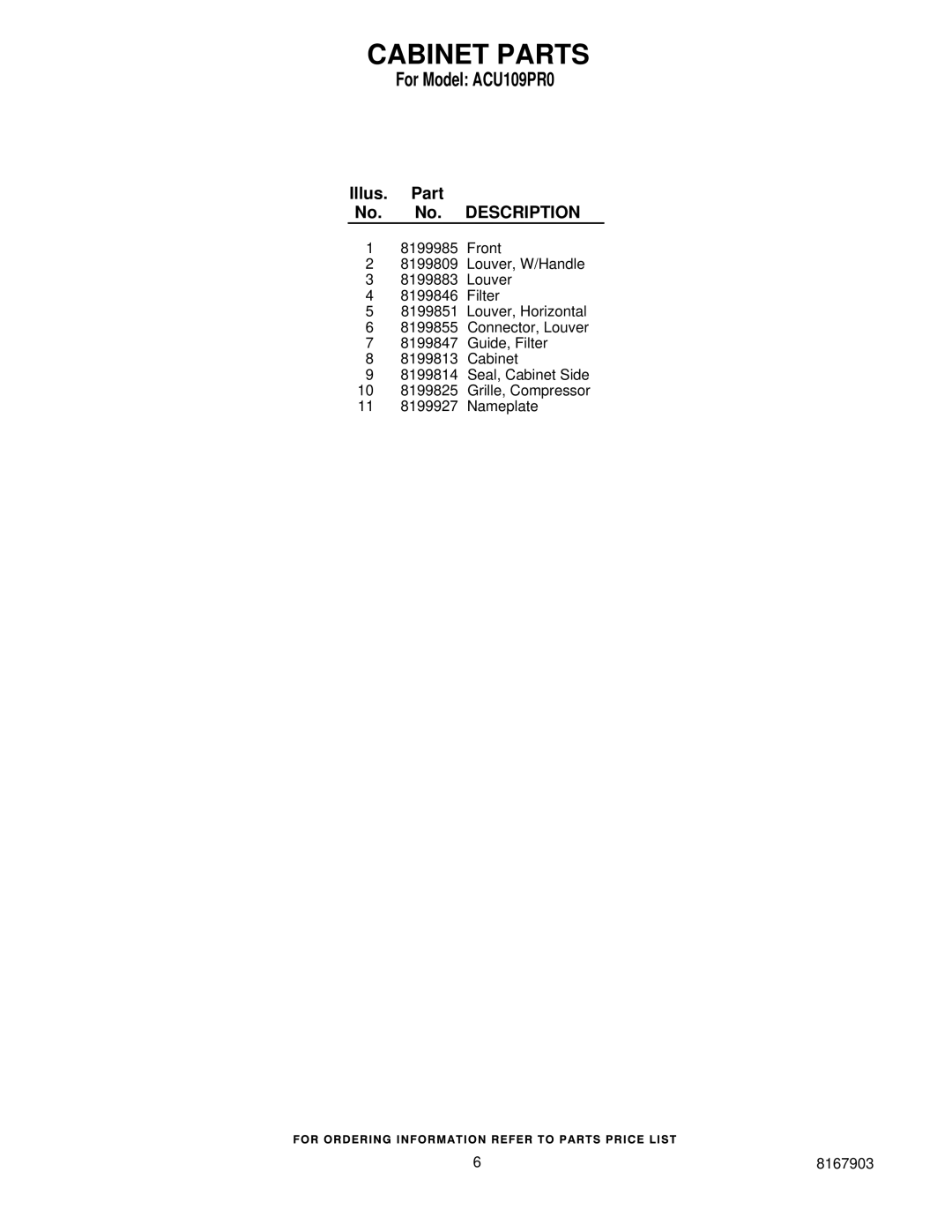

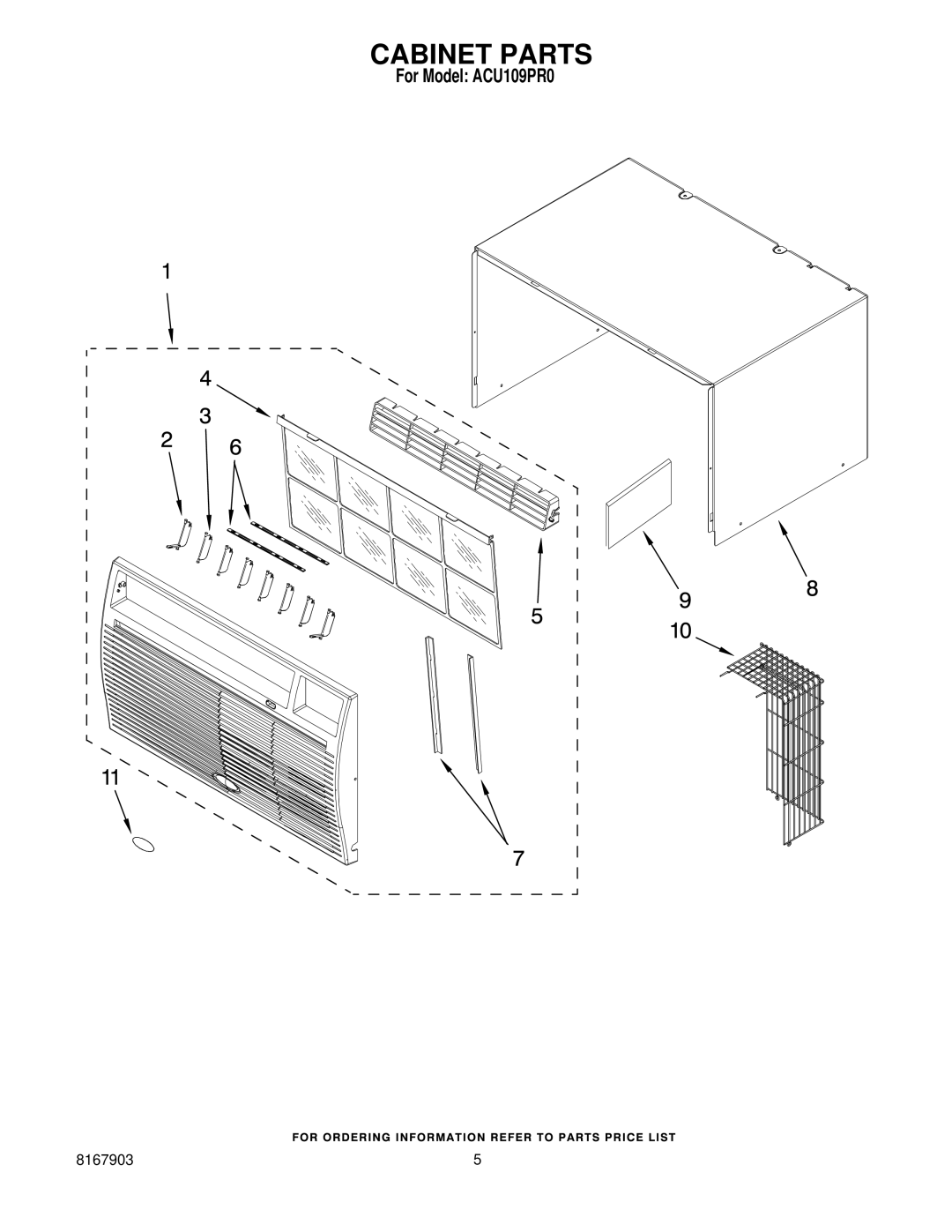

Part No. 8167903 Rev. A UNIT PARTSFor Model ACU109PR0 AIR CONDITIONERFor Model ACU109PR0 Illus. Part No. No. DESCRIPTIONREFRIGERANT CHARGE UNIT PARTSFor Model ACU109PR0 AIRFLOW AND CONTROL PARTSFor Model ACU109PR0 AIR FLOW AND CONTROL PARTSIllus. Part No. No. DESCRIPTION For Model ACU109PR0 CABINET PARTSIllus. Part No. No. DESCRIPTION 68199855 Connector, Louver 78199847 Guide, FilterCABINET PARTS For Model ACU109PR0For Model ACU109PR0 INSTALLATION PARTSIllus. Part No. No. DESCRIPTION
