Illus. Part
No. No. DESCRIPTION
1Literature Parts
W10166791 Energy Guide
2318584 Owner's Manual
W10142162 Service & Wiring Sheet
2220407 Modular Icemaker Service Sheet
2216001 Instruction Sheet (Door Removal)
22174748 Front Roller (2)
33400517 Screw
42196236 Rear Roller (2)
5489427 Screw
62155013 Clip, Grille
7489478 Screw
82203771 Hinge Top (RC)
93400113 Screw
108281227 Screw

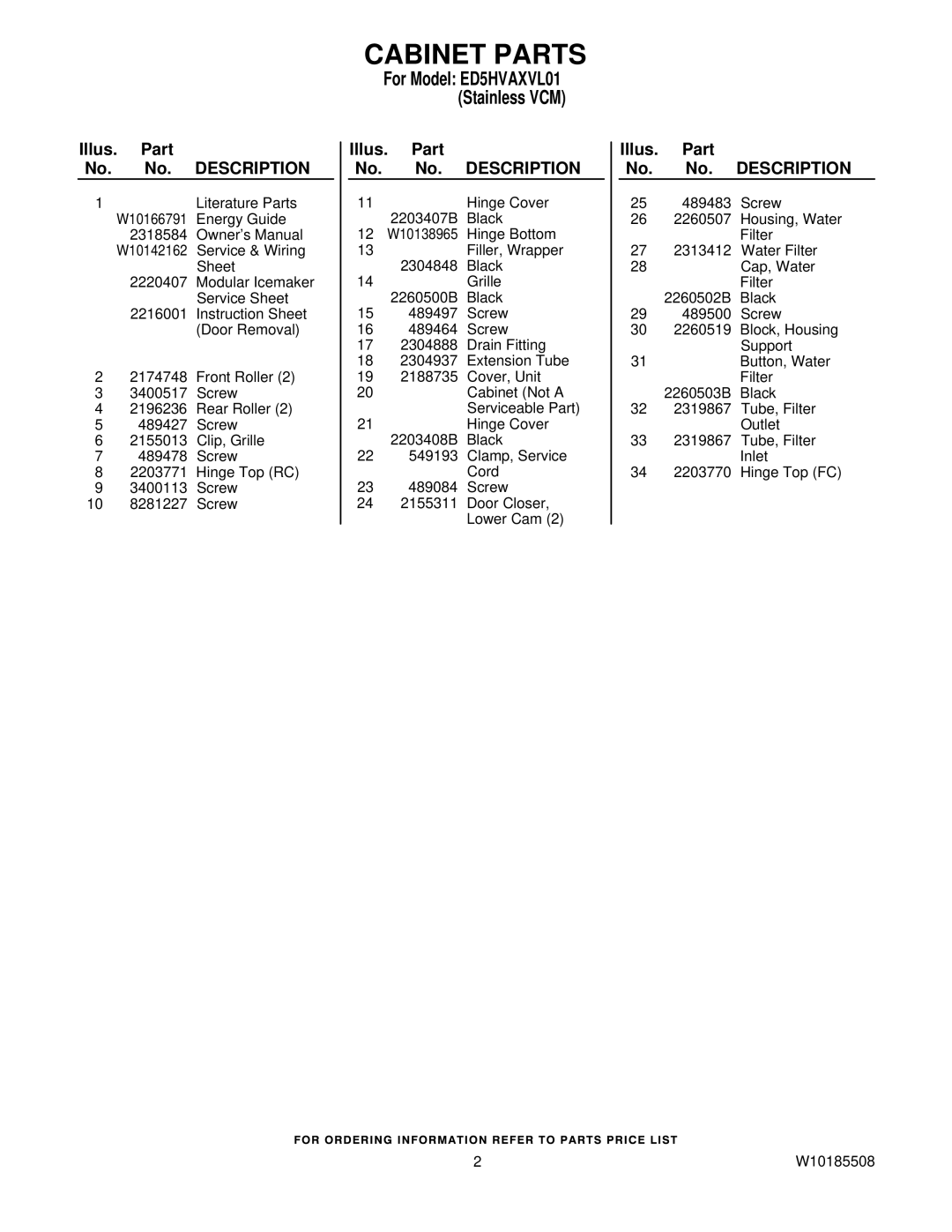

CABINET PARTS
For Model: ED5HVAXVL01 (Stainless VCM)
Illus. Part
No. No. DESCRIPTION
11Hinge Cover
2203407B Black
12W10138965 Hinge Bottom
13Filler, Wrapper
2304848 Black
14Grille
2260500B Black
15489497 Screw
16489464 Screw
172304888 Drain Fitting
182304937 Extension Tube
192188735 Cover, Unit
20Cabinet (Not A Serviceable Part)
21Hinge Cover
2203408B Black
22549193 Clamp, Service Cord
23489084 Screw
242155311 Door Closer, Lower Cam (2)
Illus. Part
No. No. DESCRIPTION
25489483 Screw
262260507 Housing, Water
Filter
272313412 Water Filter
28Cap, Water Filter
2260502B Black
29489500 Screw
302260519 Block, Housing Support
31Button, Water Filter
2260503B Black
322319867 Tube, Filter Outlet
332319867 Tube, Filter Inlet
342203770 Hinge Top (FC)

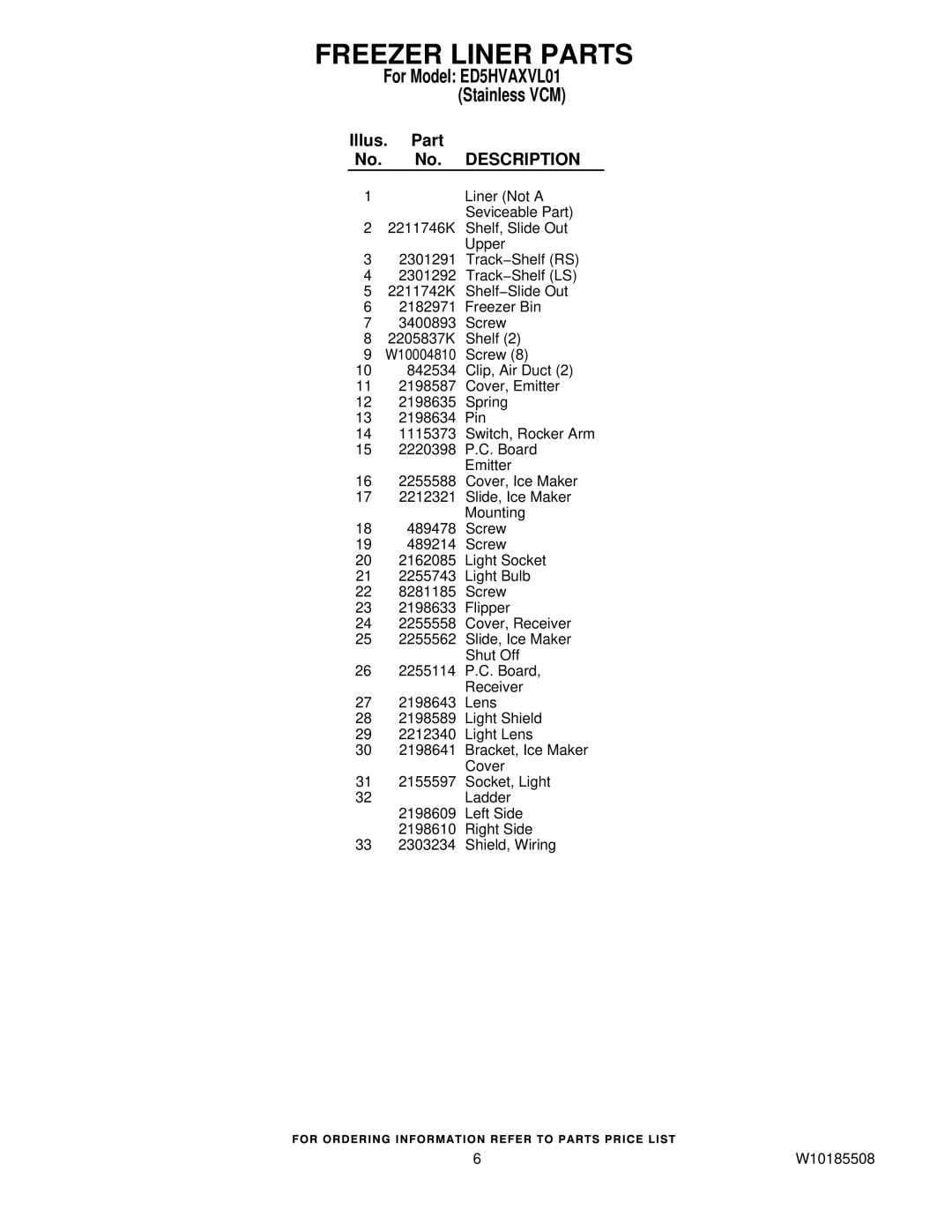

2 | W10185508 |
