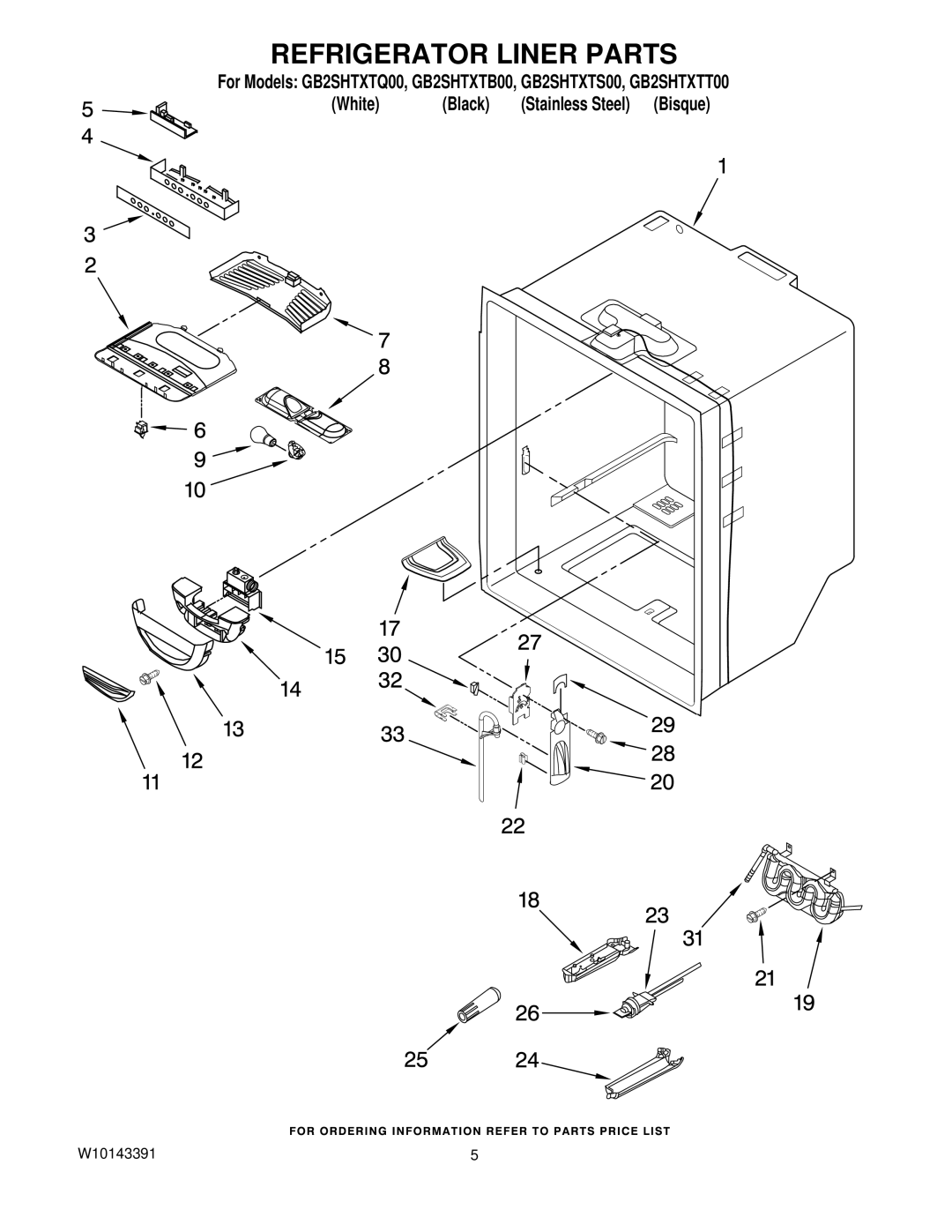

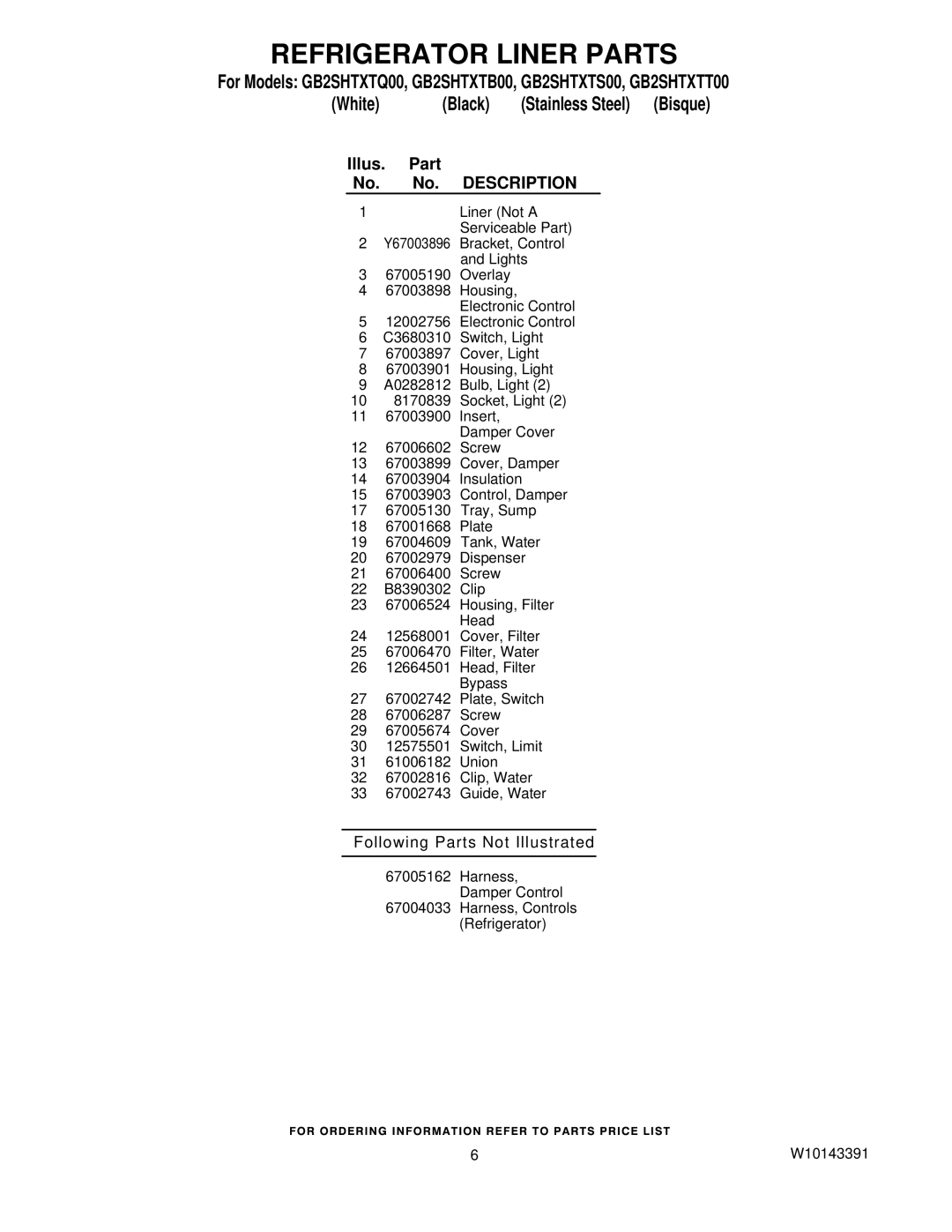

REFRIGERATOR LINER PARTS

For Models: GB2SHTXTQ00, GB2SHTXTB00, GB2SHTXTS00, GB2SHTXTT00

(White)

(Black)

(Stainless Steel) (Bisque)



Illus.

Part







No.

No. DESCRIPTION



1Liner (Not A Serviceable Part)

2Y67003896 Bracket, Control and Lights

367005190 Overlay

467003898 Housing, Electronic Control

512002756 Electronic Control

6C3680310 Switch, Light

767003897 Cover, Light

867003901 Housing, Light

9A0282812 Bulb, Light (2)

108170839 Socket, Light (2)

1167003900 Insert,

Damper Cover

1267006602 Screw

1367003899 Cover, Damper

1467003904 Insulation

1567003903 Control, Damper

1767005130 Tray, Sump

1867001668 Plate

1967004609 Tank, Water

2067002979 Dispenser

2167006400 Screw

22B8390302 Clip

2367006524 Housing, Filter

Head

2412568001 Cover, Filter

2567006470 Filter, Water

2612664501 Head, Filter Bypass

2767002742 Plate, Switch

2867006287 Screw

2967005674 Cover

3012575501 Switch, Limit

3161006182 Union

3267002816 Clip, Water

3367002743 Guide, Water

Following Parts Not Illustrated

67005162 Harness,

Damper Control

67004033 Harness, Controls

(Refrigerator)

6

W10143391
