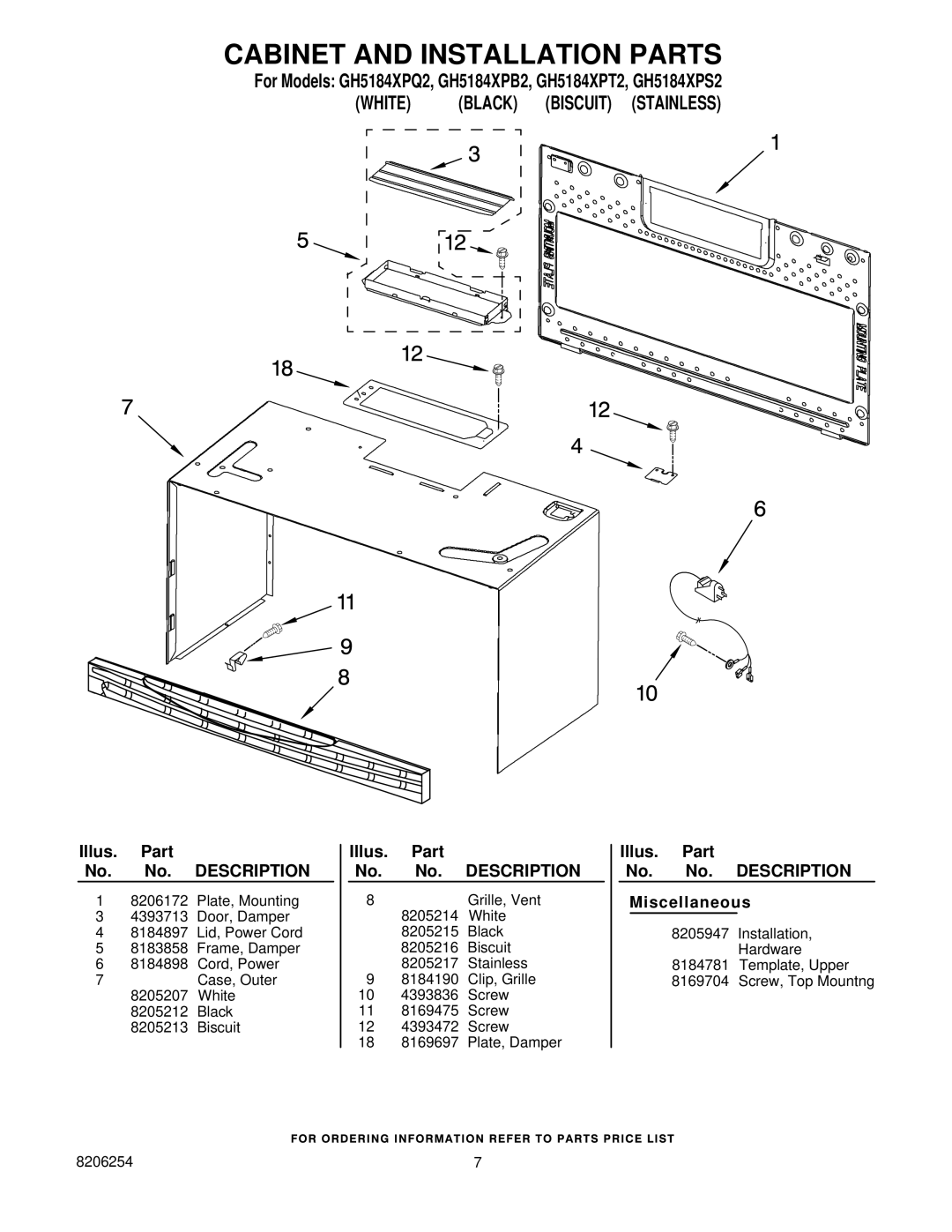

CABINET AND INSTALLATION PARTS

For Models: GH5184XPQ2, GH5184XPB2, GH5184XPT2, GH5184XPS2

(WHITE)

(BLACK)

(BISCUIT) (STAINLESS)

Illus. Part

No. No. DESCRIPTION

18206172 Plate, Mounting

34393713 Door, Damper

48184897 Lid, Power Cord

58183858 Frame, Damper

68184898 Cord, Power

7Case, Outer

8205207 White

8205212 Black

8205213 Biscuit

Illus. Part

No. No. DESCRIPTION

8Grille, Vent

8205214 White

8205215 Black

8205216 Biscuit

8205217 Stainless

98184190 Clip, Grille

104393836 Screw

118169475 Screw

124393472 Screw

18 8169697 Plate, Damper

Illus. Part

No. No. DESCRIPTION

Miscellaneous

8205947 Installation,

Hardware

8184781 Template, Upper

8169704 Screw, Top Mountng

8206254

7

Page 7
