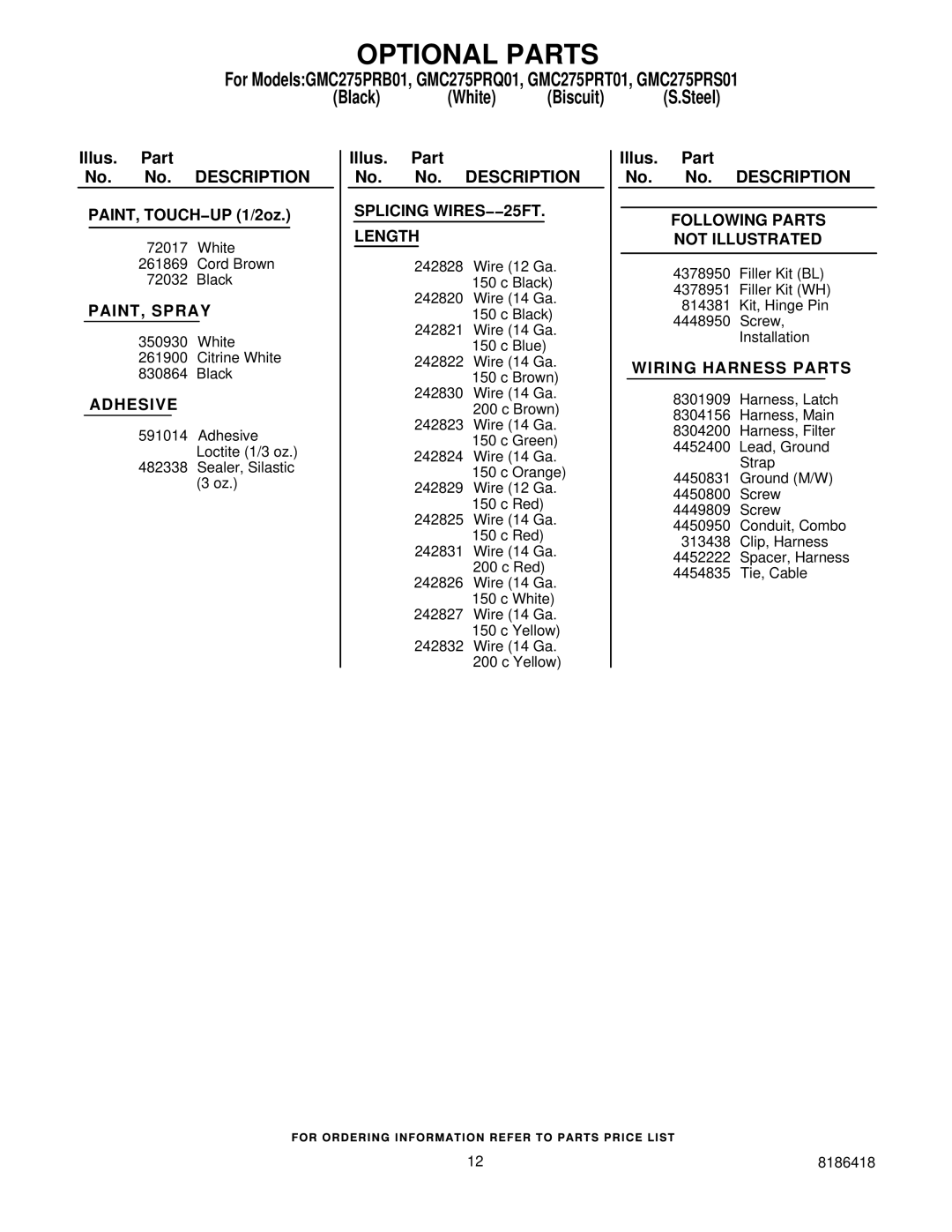

OPTIONAL PARTS
For Models:GMC275PRB01, GMC275PRQ01, GMC275PRT01, GMC275PRS01
(Black) (White) (Biscuit) (S.Steel)
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
Illus. Part
No. No. DESCRIPTION
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242829 Wire (12 Ga.
150 c Red)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242826 Wire (14 Ga.
150 c White)
242827 Wire (14 Ga.
150 c Yellow)
242832 Wire (14 Ga.
200 c Yellow)
Illus. Part
No. No. DESCRIPTION
FOLLOWING PARTS
NOT ILLUSTRATED
4378950 Filler Kit (BL)
4378951 Filler Kit (WH)
814381 Kit, Hinge Pin
4448950 Screw,
Installation
WIRING HARNESS PARTS
8301909 Harness, Latch
8304156 Harness, Main
8304200 Harness, Filter
4452400 Lead, Ground
Strap
4450831 Ground (M/W)
4450800 Screw
4449809 Screw
4450950 Conduit, Combo
313438 Clip, Harness
4452222 Spacer, Harness
4454835 Tie, Cable
12 | 8186418 |
