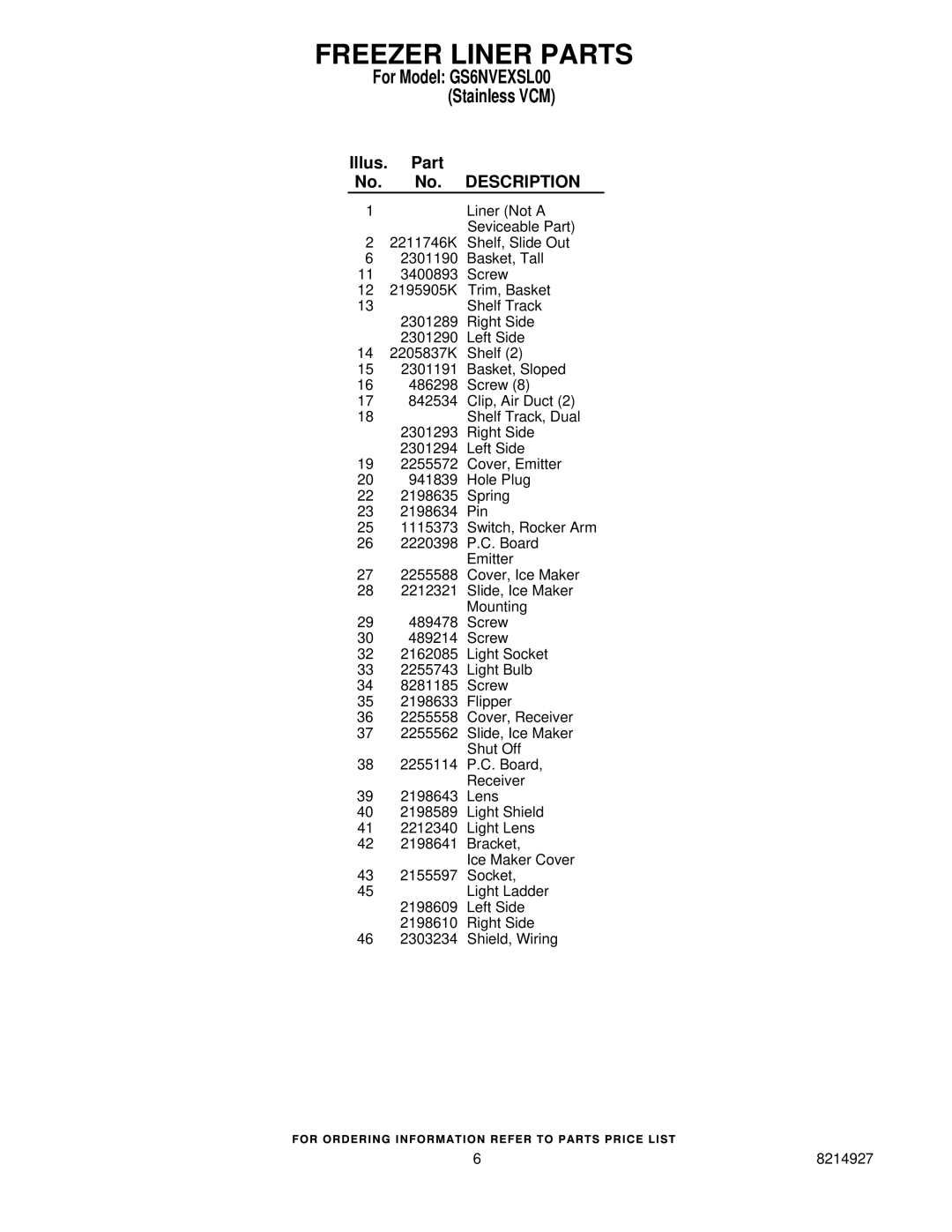

REFRIGERATOR LINER PARTS

For Model: GS6NVEXSL00

(Stainless VCM)

Illus.	Part
No.	No.	DESCRIPTION
1		Liner (Not A
		Serviceable Part)
2	2194744	Escutcheon, Meat
		Pan Control
3	2182757	Slide Meat
		Pan Control
4	2257741	Louver
8	1118894	Switch,
		Rocker Arm
9	2206273	Shelf Ladder
10	489478	Screw
12	2261601	Door Control Asm
15	2209753	Air Diffuser
		Assembly
18	2162085	Socket
19	2305226	Reservoir
20	2255743	Light Bulb
21	2209769	Light Lens
22	488280	Screw
23	2256035	Bracket,
		Dual Crisper
24	2256037	Wire Harness,
		Dual Crisper

8214927
