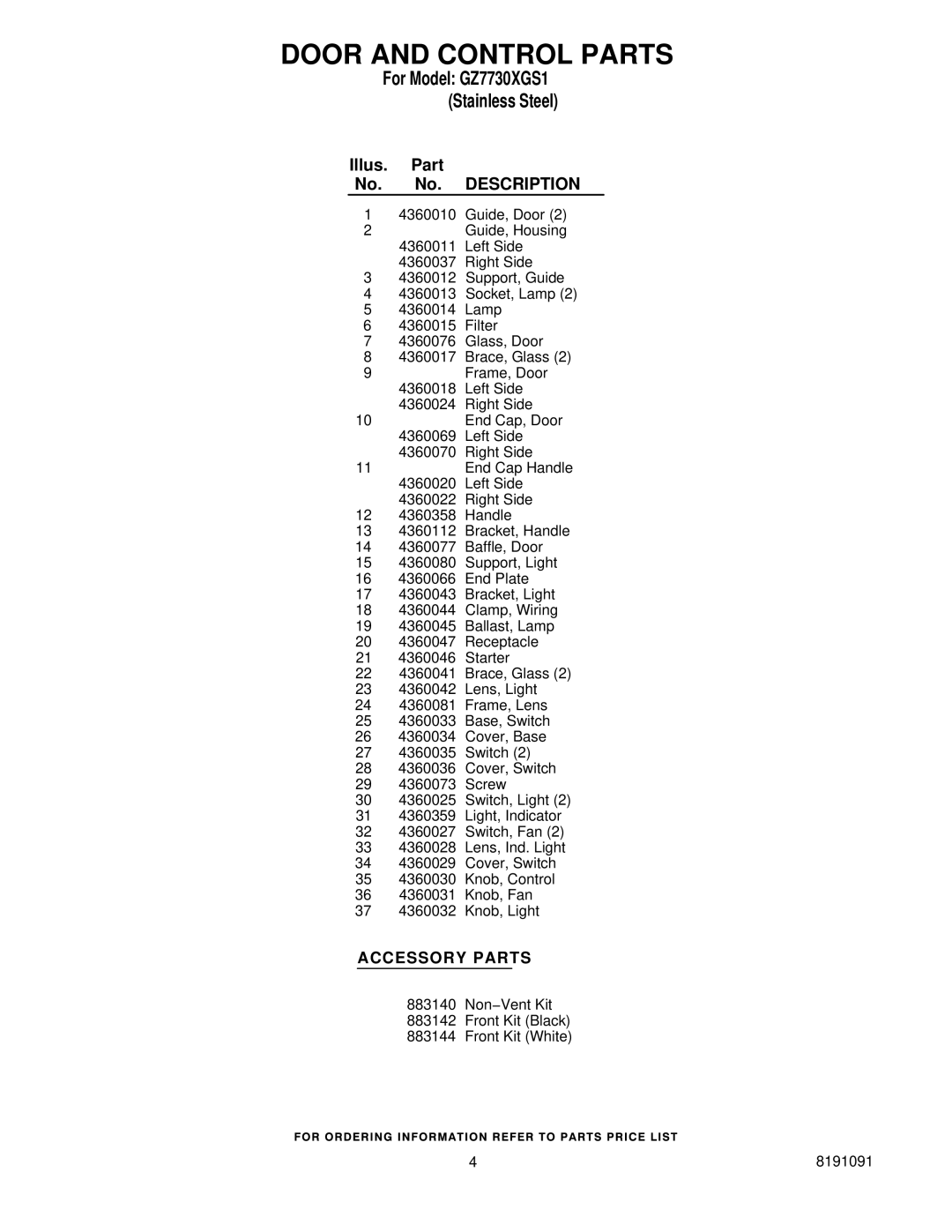

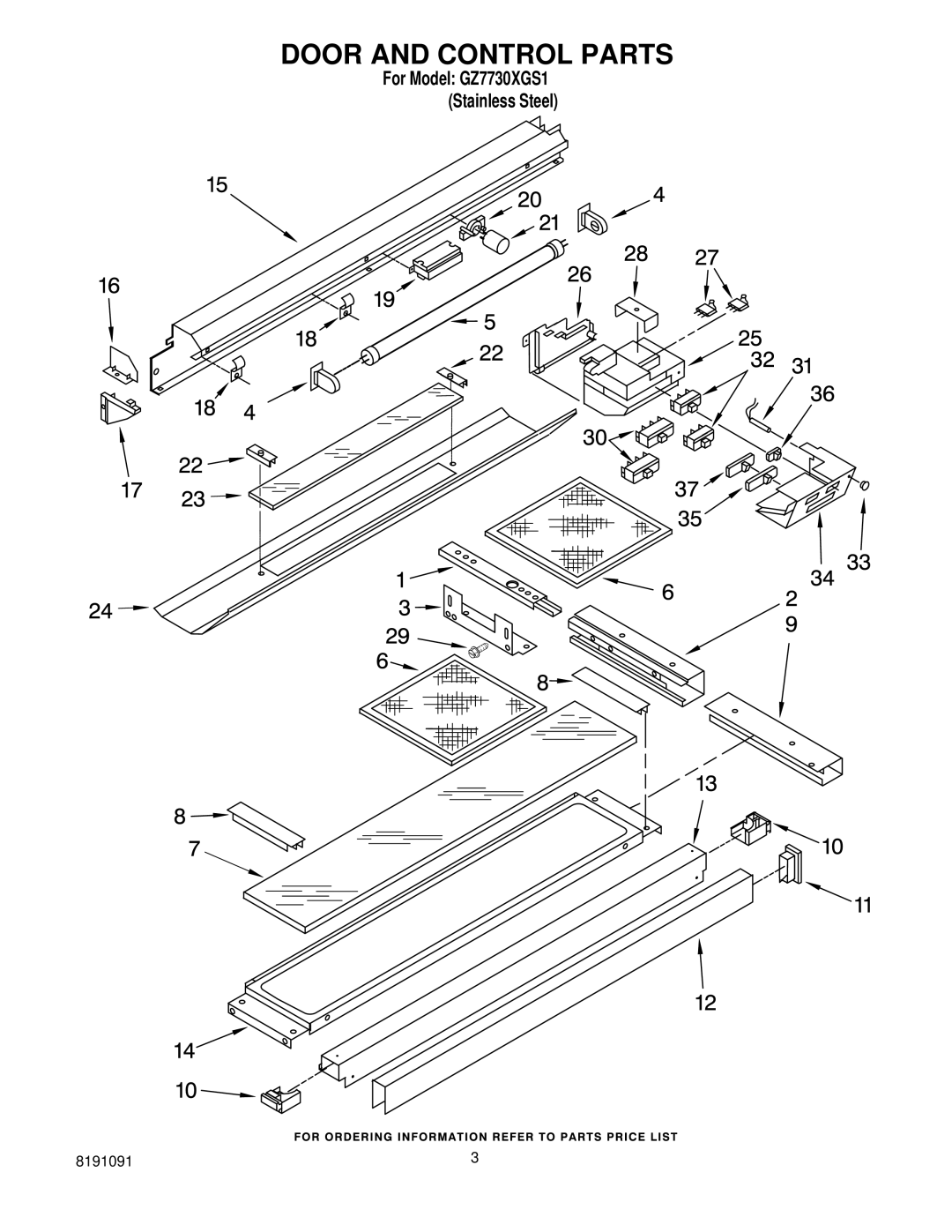

DOOR AND CONTROL PARTS
For Model: GZ7730XGS1 (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
14360010 Guide, Door (2)
2Guide, Housing
4360011 Left Side
4360037 Right Side
34360012 Support, Guide
44360013 Socket, Lamp (2)
54360014 Lamp
64360015 Filter
74360076 Glass, Door
84360017 Brace, Glass (2)
9Frame, Door
4360018 Left Side
4360024 Right Side
10End Cap, Door
4360069 Left Side
4360070 Right Side
11End Cap Handle
4360020 Left Side
4360022 Right Side
124360358 Handle
134360112 Bracket, Handle
144360077 Baffle, Door
154360080 Support, Light
164360066 End Plate
174360043 Bracket, Light
184360044 Clamp, Wiring
194360045 Ballast, Lamp
204360047 Receptacle
214360046 Starter
224360041 Brace, Glass (2)
234360042 Lens, Light
244360081 Frame, Lens
254360033 Base, Switch
264360034 Cover, Base
274360035 Switch (2)
284360036 Cover, Switch
294360073 Screw
304360025 Switch, Light (2)
314360359 Light, Indicator
324360027 Switch, Fan (2)
334360028 Lens, Ind. Light
344360029 Cover, Switch
354360030 Knob, Control
364360031 Knob, Fan
374360032 Knob, Light
ACCESSORY PARTS
883140 Non−Vent Kit
883142 Front Kit (Black)
883144 Front Kit (White)
4 | 8191091 |
